Home >> Hyundai >> 2003 >> Accent Base >> Repair and Diagnosis >> Body & Frame >> Windows >> Exterior >> Rear Door >> Components

Rear Door: Components

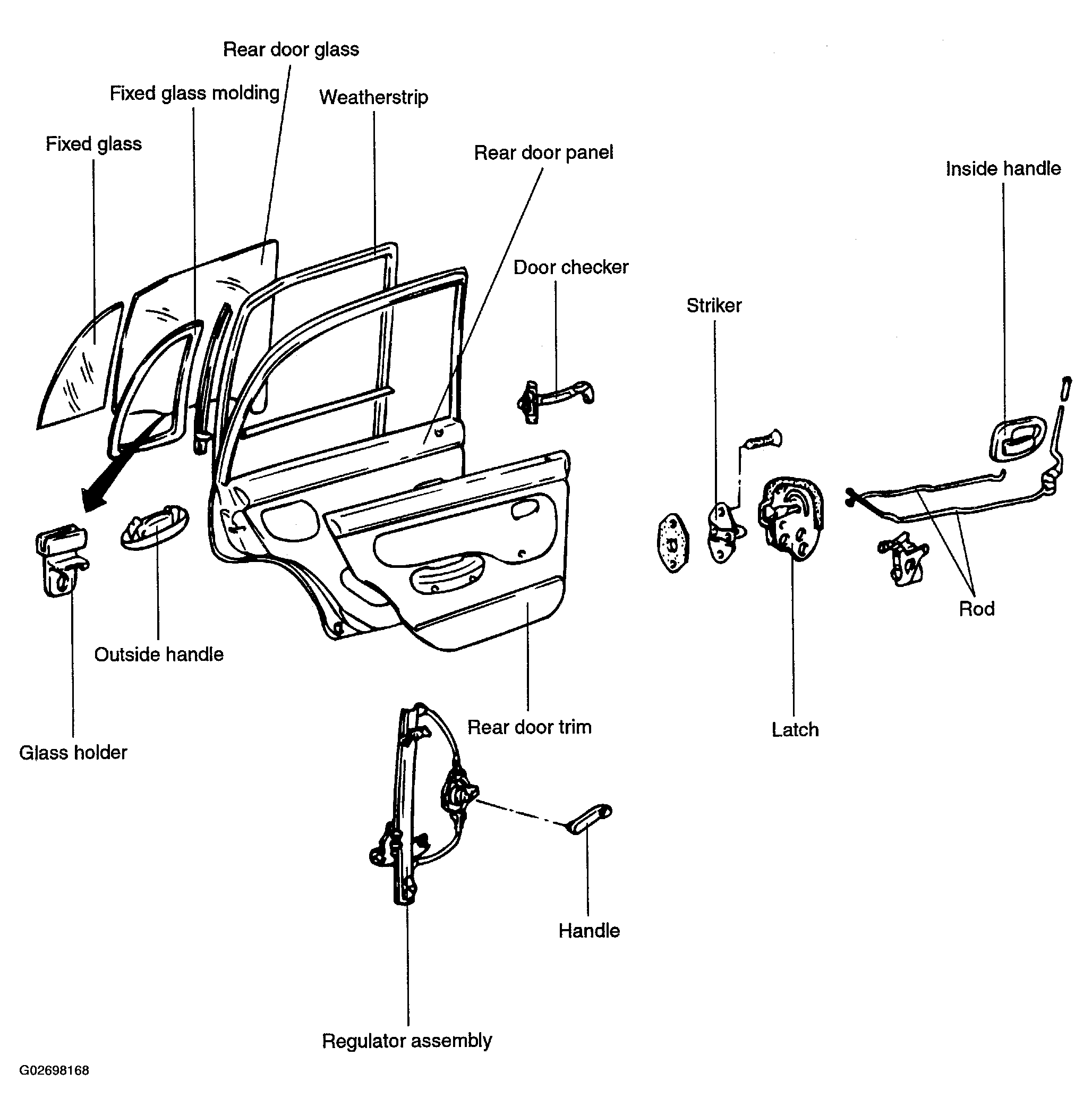

Fig 1: Rear Door Components

G02698168

Courtesy of HYUNDAI MOTOR CO.
