Removal & Installation

  1. Remove the bolt and disconnect the horn connector, then remove the horn.

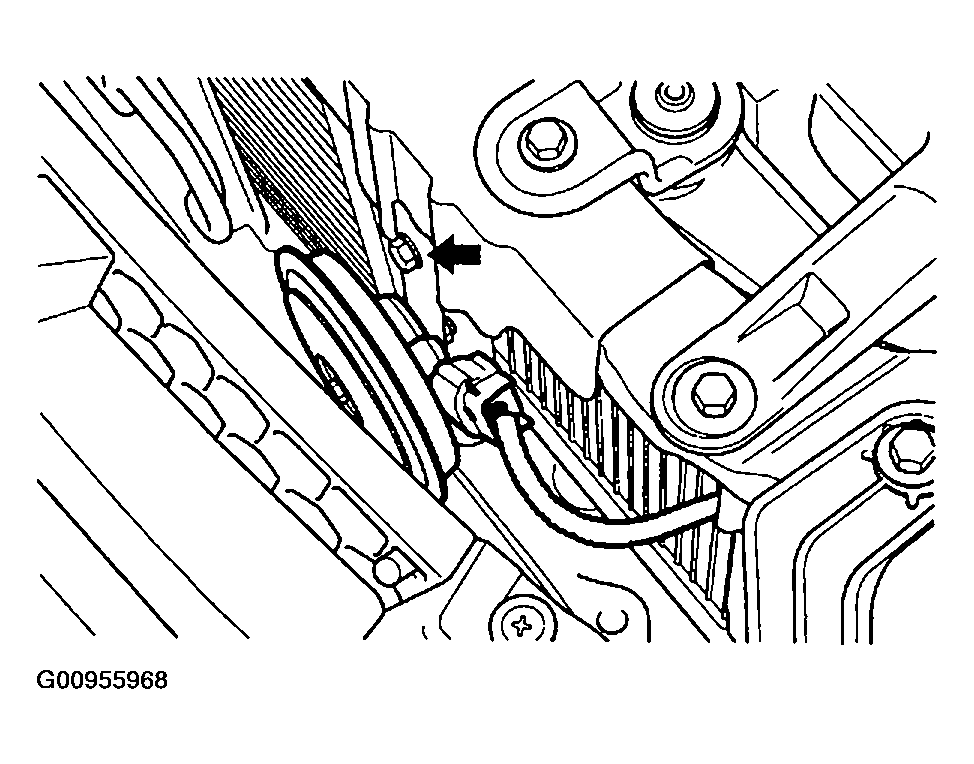

    Fig 1: Identifying Horn Mounting Bolt
    G00955968Courtesy of HYUNDAI MOTOR CO.
  2. Installation is the reverse of removal.
