Manual Transaxle Shift Control: Components

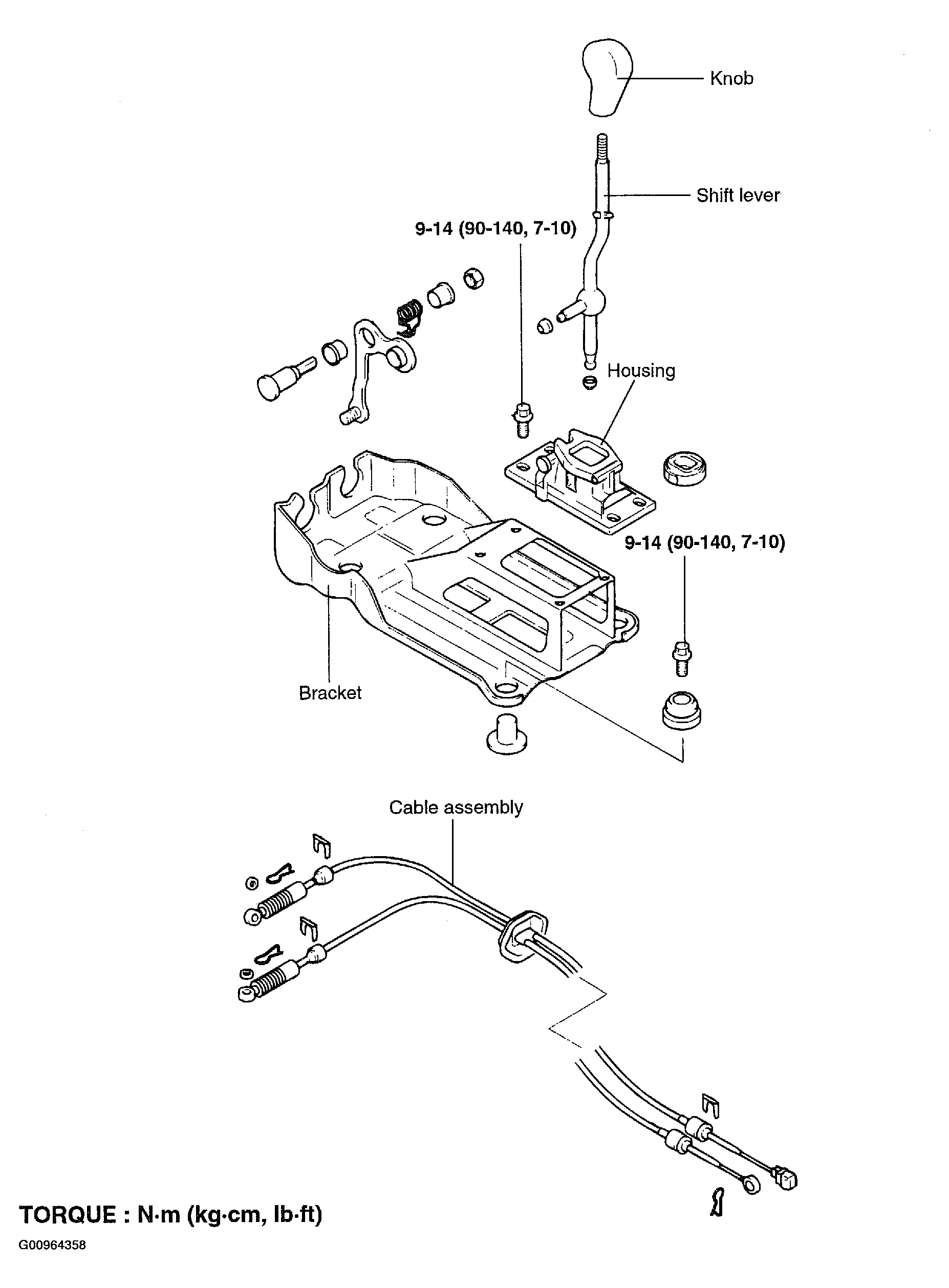

Fig 1: Manual Transaxle Shift Control Components

G00964358

Courtesy of HYUNDAI MOTOR CO.
