Special Tools
Special Tools

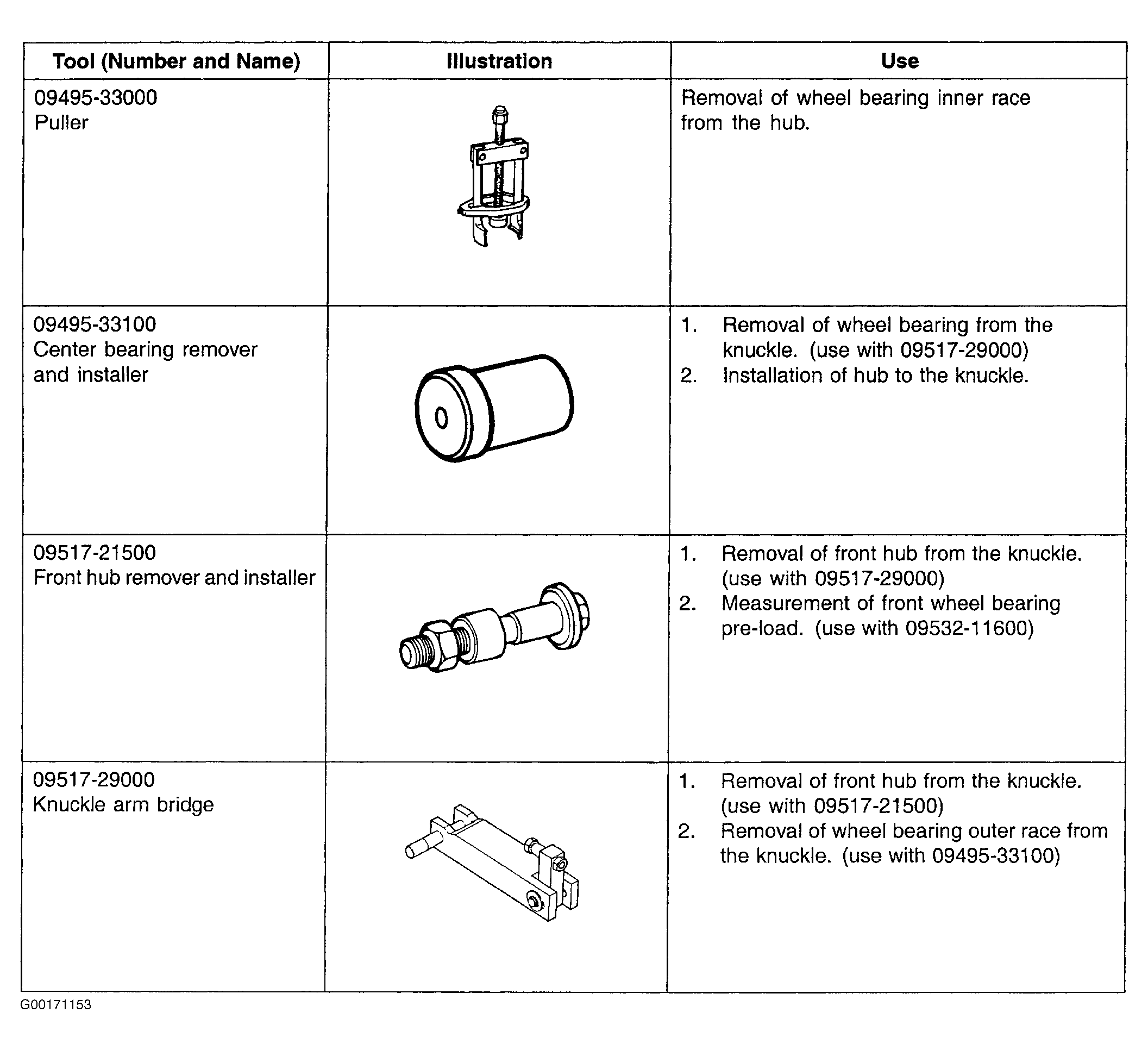

Fig 1: Identifying Special Tools (1 Of 4)
Courtesy of HYUNDAI MOTOR CO.

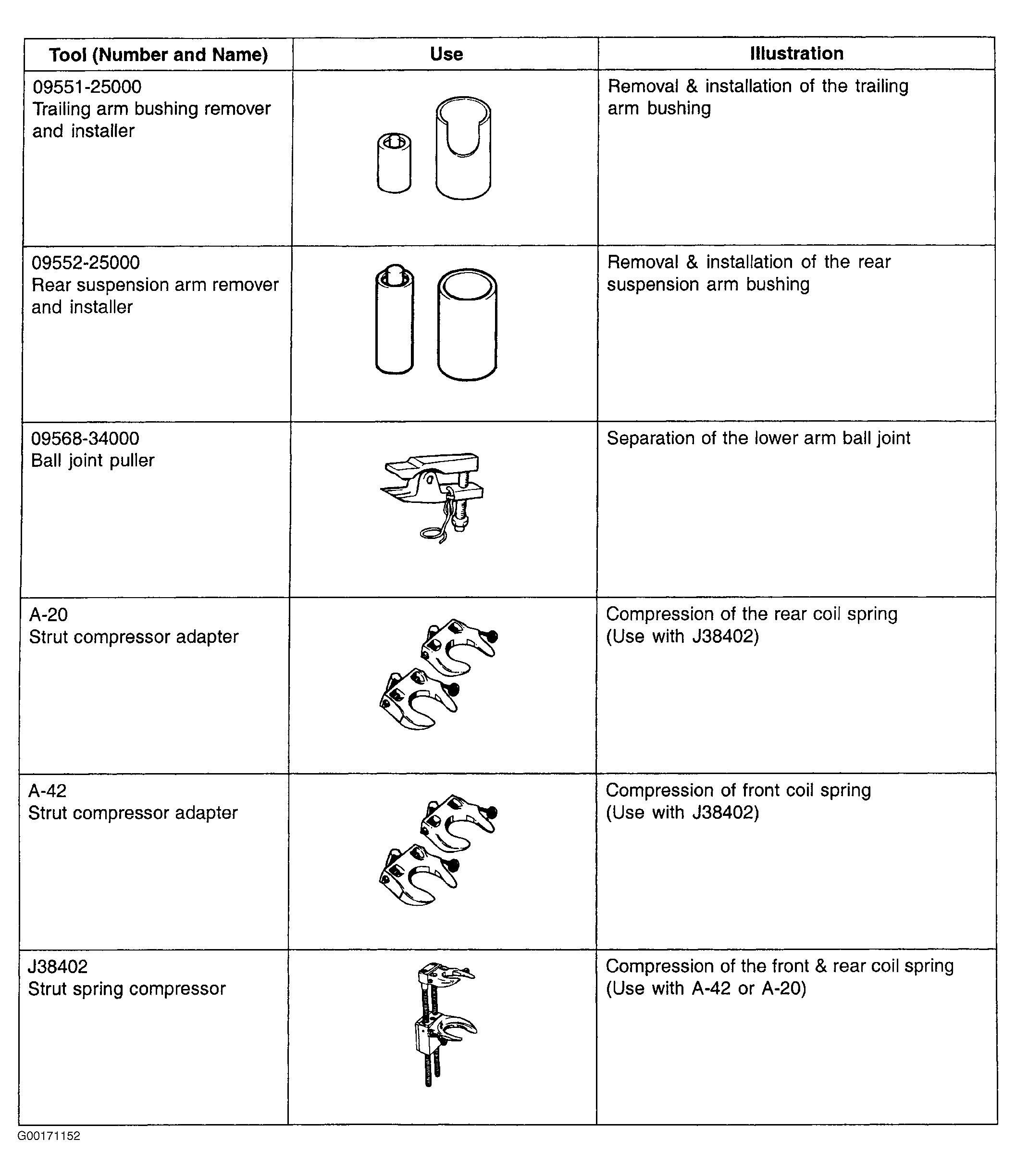

Fig 2: Identifying Special Tools (2 Of 4)
Courtesy of HYUNDAI MOTOR CO.

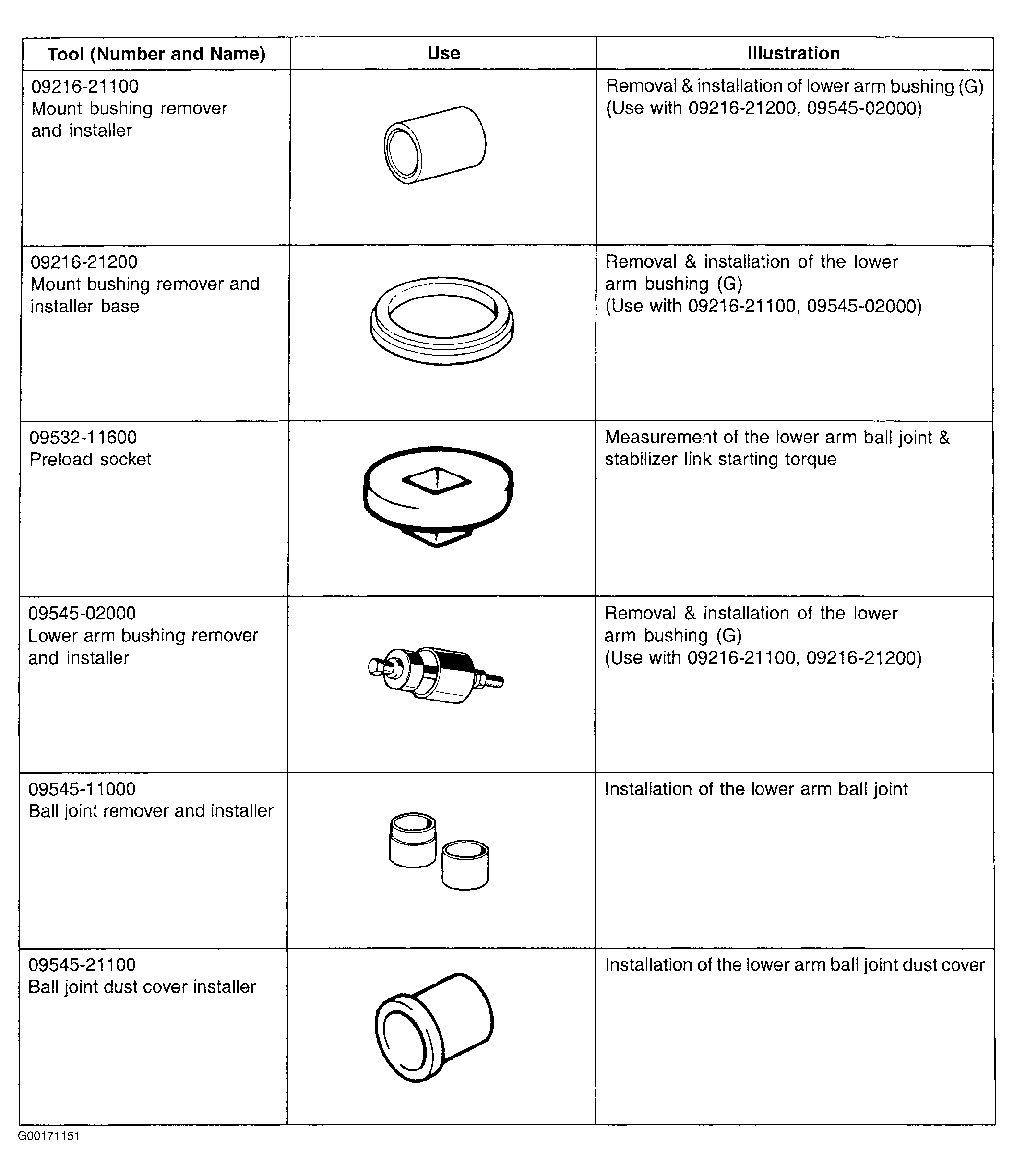

Fig 3: Identifying Special Tools (3 Of 4)
Courtesy of HYUNDAI MOTOR CO.

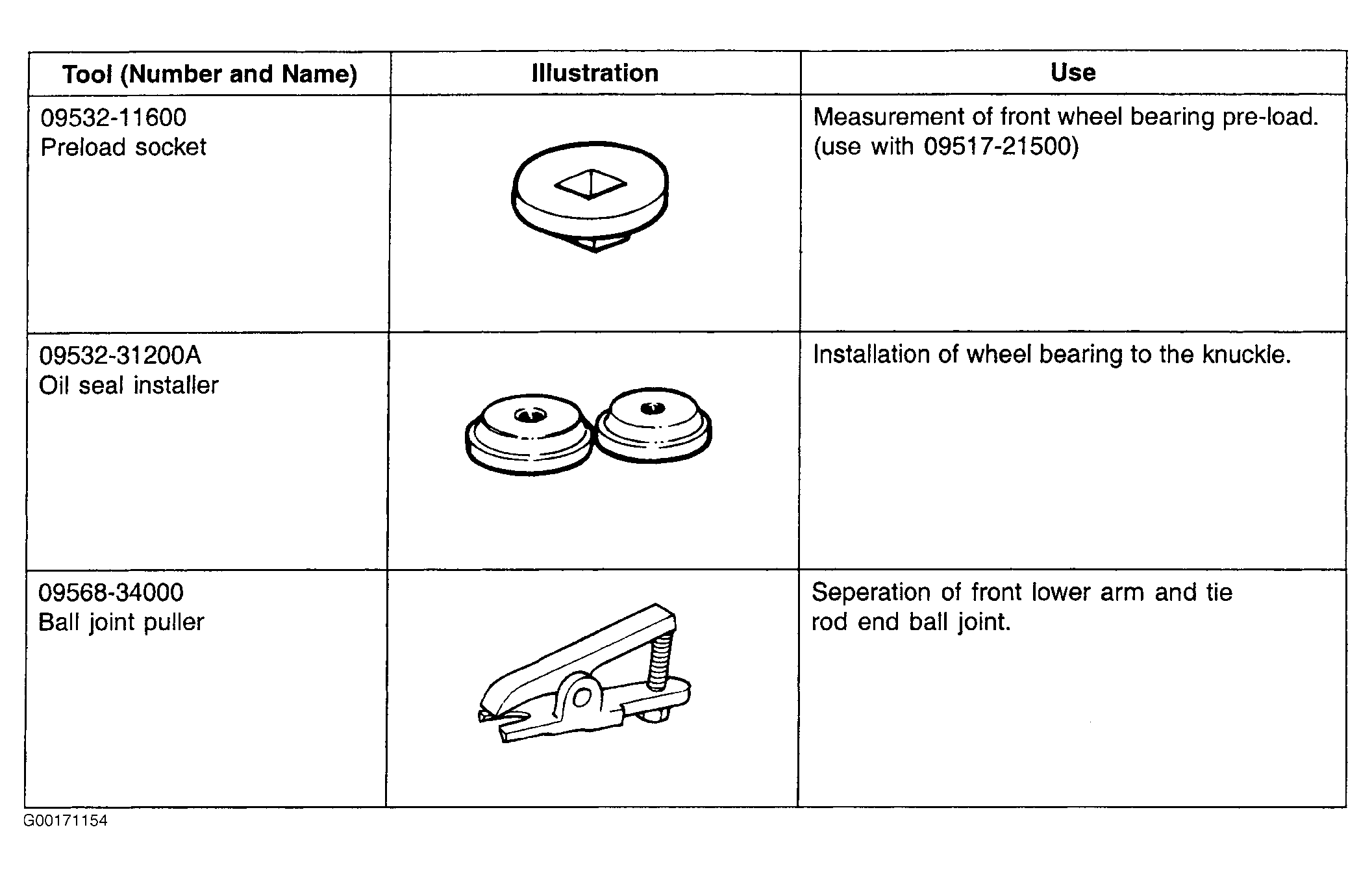

Fig 4: Identifying Special Tools (4 Of 4)
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
