Accessory Drive System Components (02-20-005)

Publication date: 2002-08-01
Reference number: 02-20-005

ACCESSORY DRIVE SYSTEM COMPONENTS

TECHNICAL SERVICE BULLETIN

Reference Number(s): 02-20-005, Date of Issue: August, 2002

HYUNDAI:	2001 XG300; 2002 XG350
GROUP:	20 - Engine Mechanical

DESCRIPTION

The parts catalog for the XG300/350 shows the accessory drive components in several different sections. For ease of part number identification, refer to the diagram below.

PART NAME AND NUMBER

Part Name	Part Number
Power Steering Drive Belt	5710-39000
Power Steering Tensioner Pulley	57212-39000
A/C-Generator Tensioner Pulley	25281-39010
A/C-Generator Idler Pulley	23129-39800
A/C-Generator Drive Belt	97713-39850

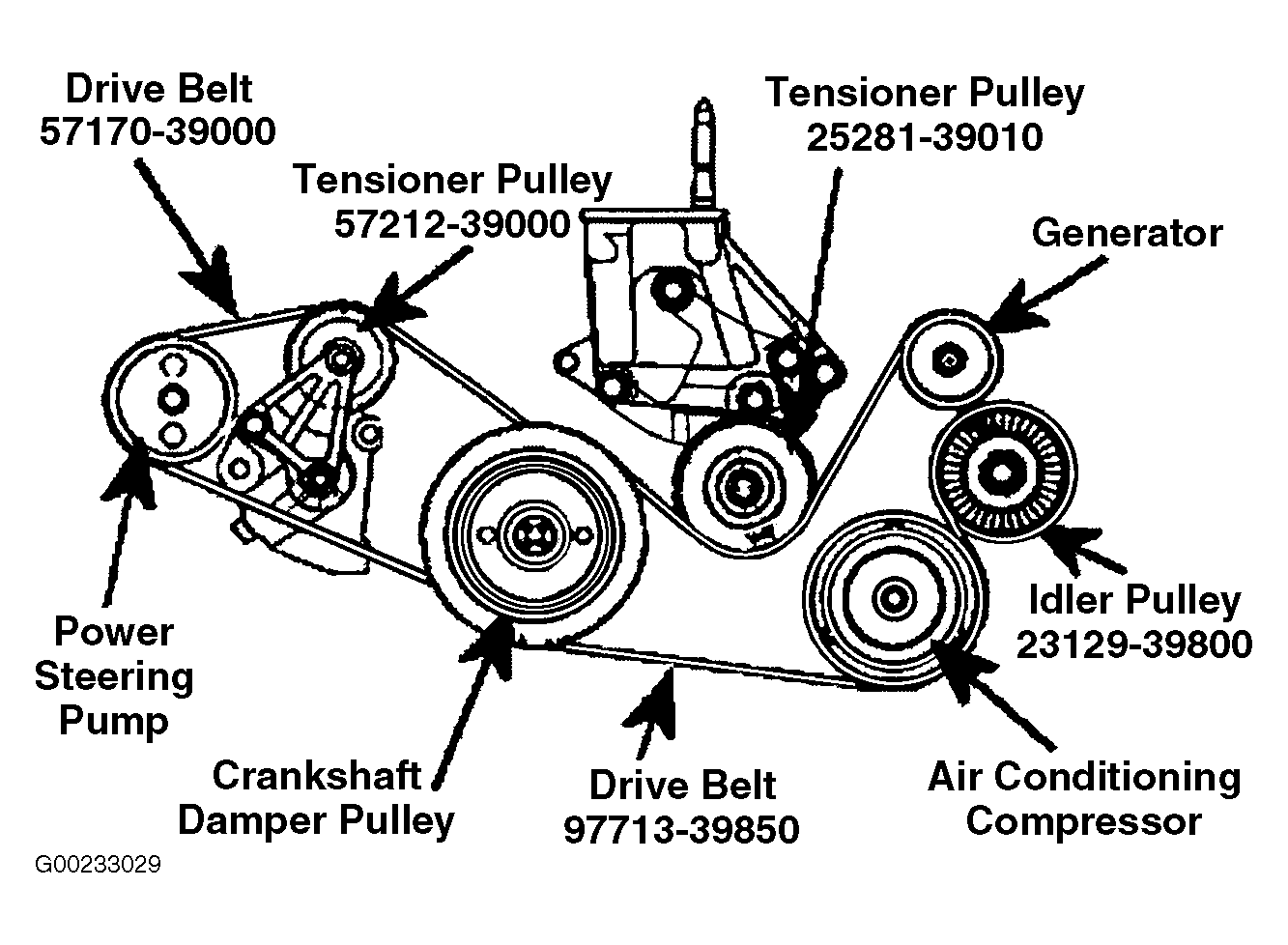

Fig 1: Exploded View

Drive belt tension should be adjusted using a belt tension gauge such as Borroughs BT-33-73F (or equivalent). The tension should be adjusted based on whether the belt is new (110-130 lbs. tension) or used (70-90 lbs. tension).
