Regeneration Function

Prohibition condition of regeneration:

Ignition switch OFF.

Parking brake switch OFF and shift lever positioned except "P" position (A/T).

Parking brake switch OFF (M/T).

Vehicle speed is over 3 km/h.

Stop switch ON.

During the manual switch operation. See Fig 1 .

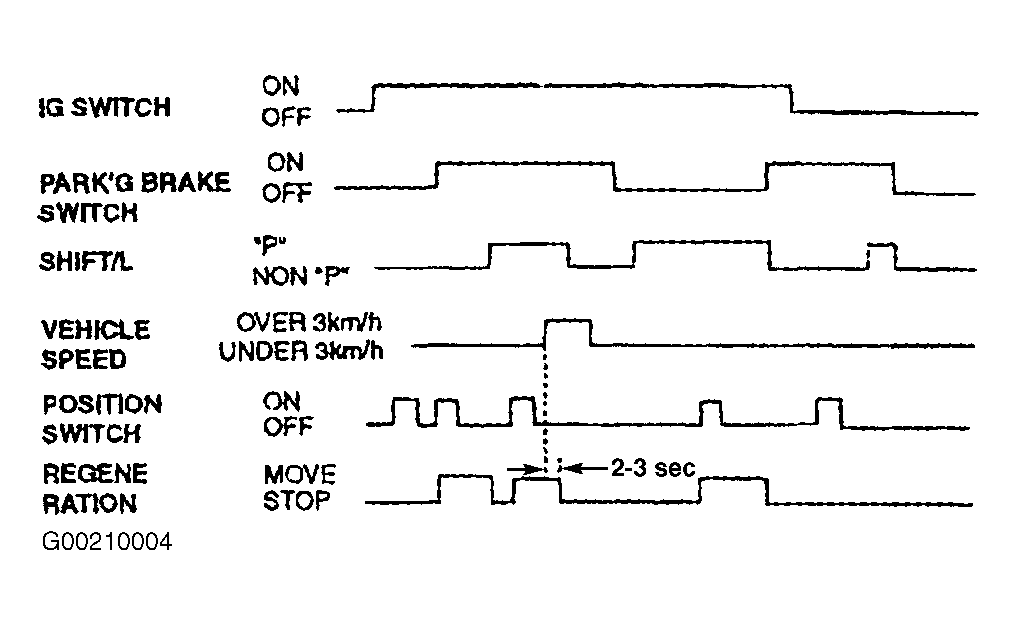

Fig 1: Regeneration Function
G00210004Courtesy of HYUNDAI MOTOR CO.
