Home
>>
Hyundai
>>
2002
>>
Sonata GLS, Standard
>>
Repair and Diagnosis
>>
Transmission
>>
Manual Trans
>>
Manual Transaxle System
>>
Manual Transaxle System
>>
Shift Lever
>>
Components
Shift Lever: Components

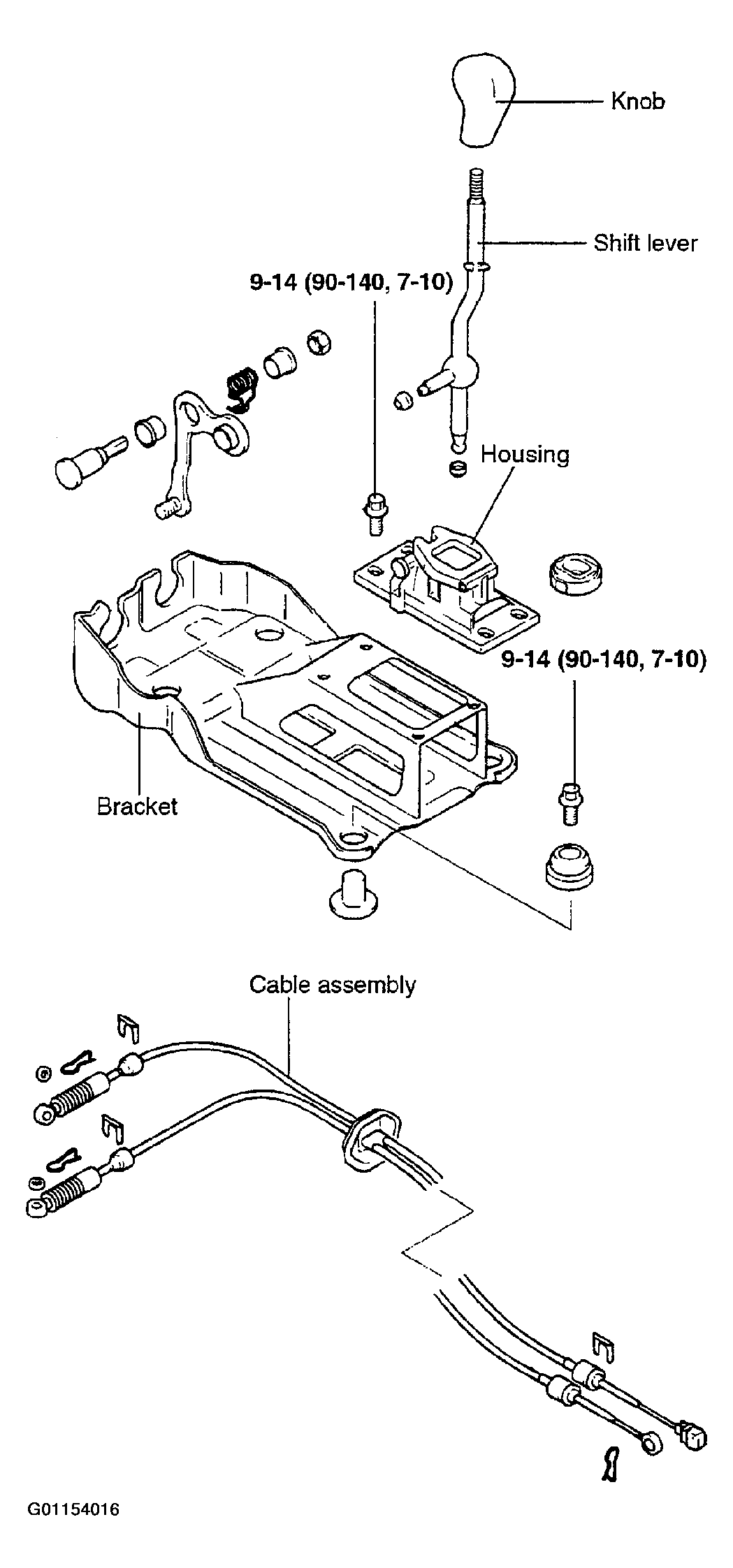

Fig 1: Shift Lever & Cables Components
Courtesy of HYUNDAI MOTOR CO.

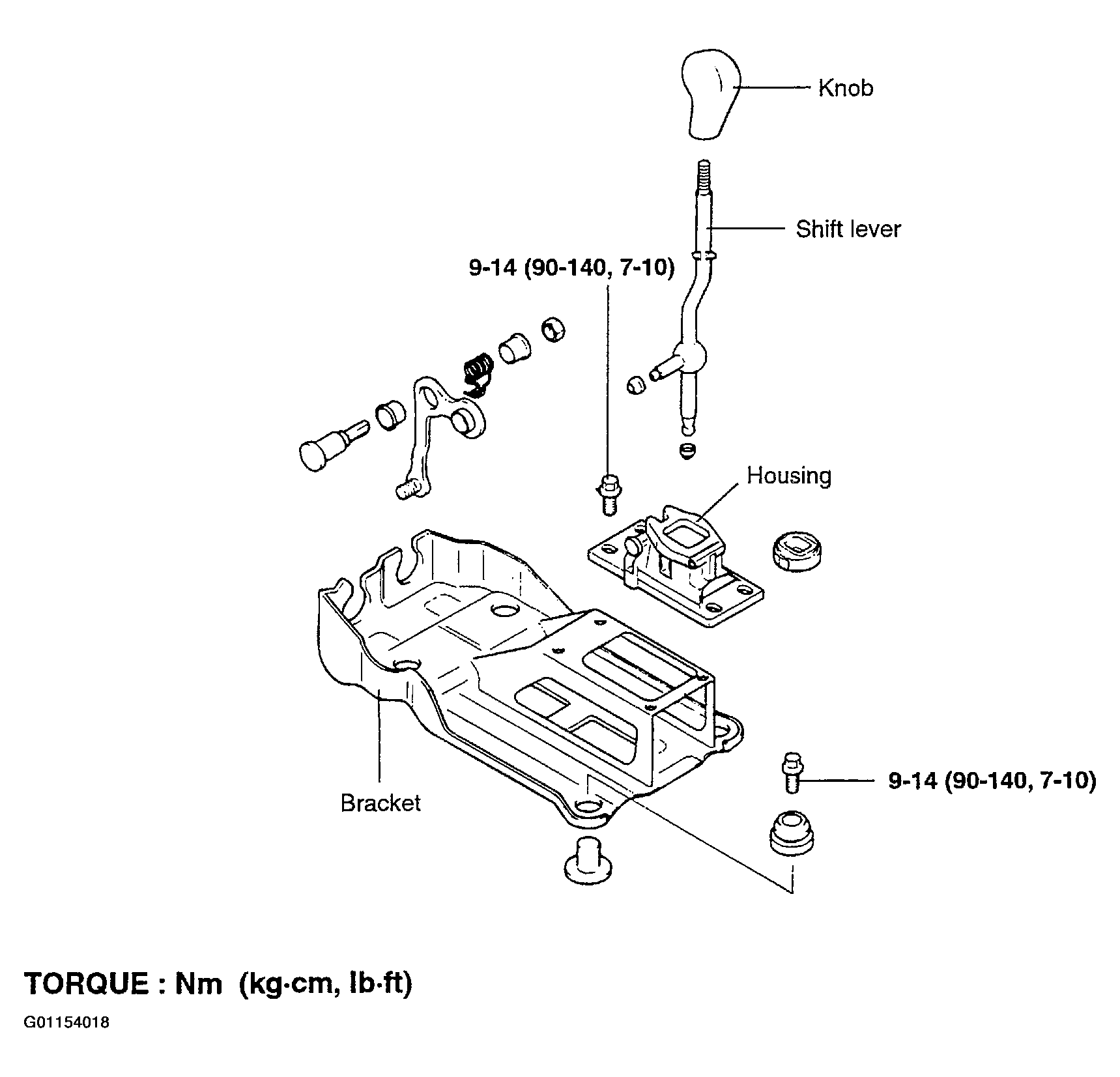

Fig 1: Shift Lever Components
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
