Home >> Hyundai >> 2002 >> Sonata GLS, Automatic >> Repair and Diagnosis >> Transmission >> Automatic Trans >> Automatic Transaxle System >> Automatic Transaxle System >> Inspection Procedure For Trouble Symptoms >> Inspection Procedure 15

Inspection Procedure 15

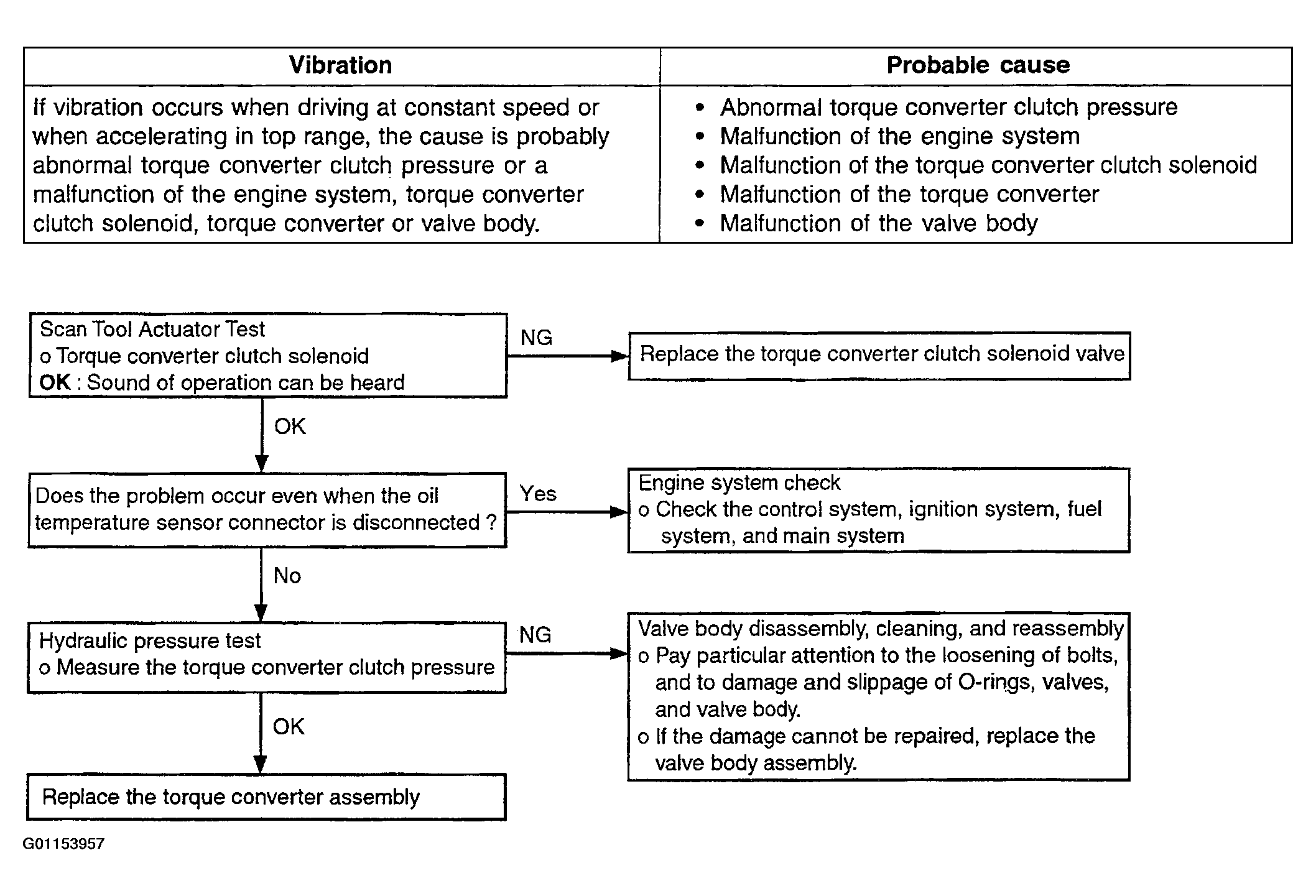

Fig 1: Vibration Possible Causes Table & Flow Chart

G01153957

Courtesy of HYUNDAI MOTOR CO.
