Audio Unit: Components

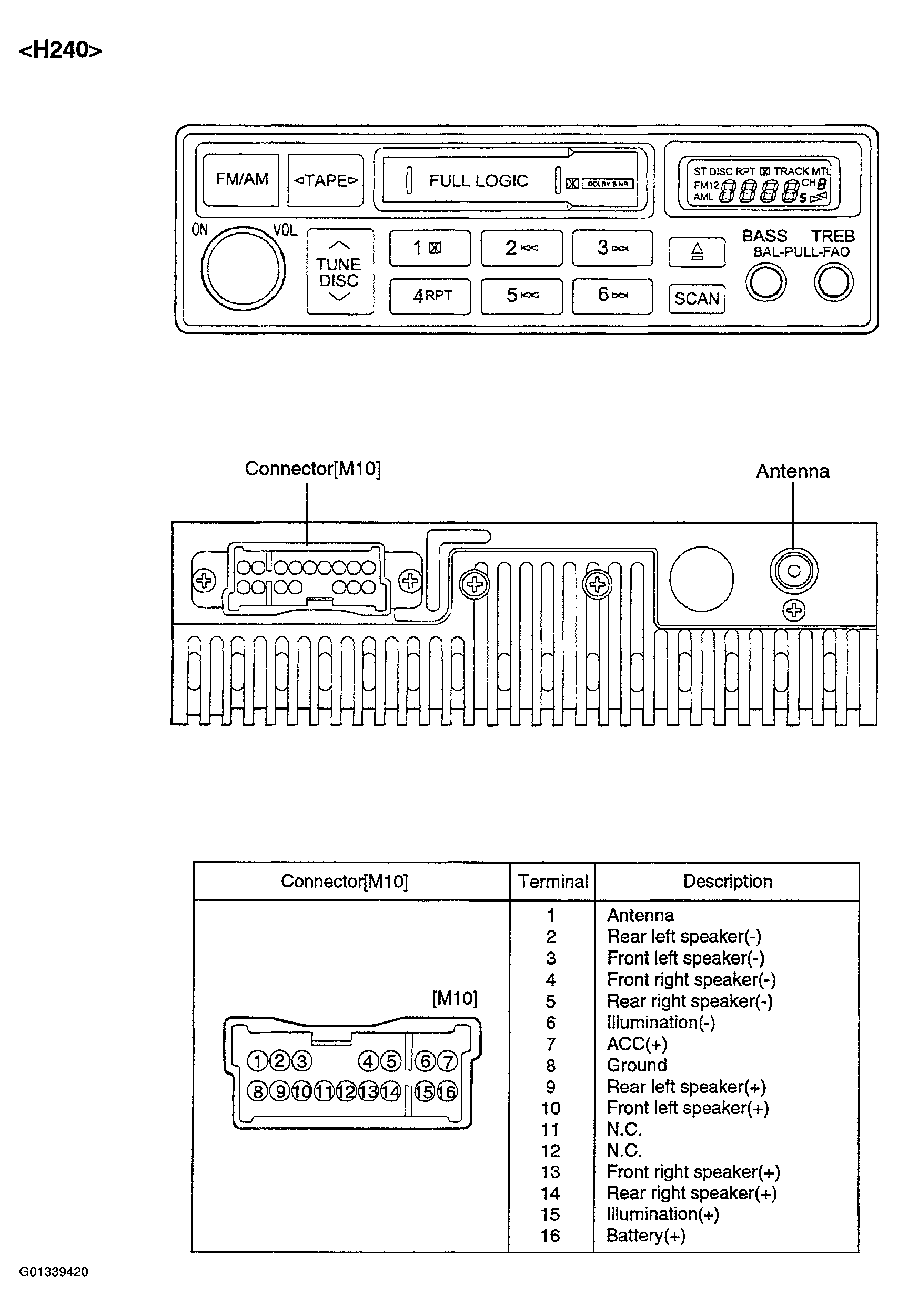

Fig 1: Identifying Audio Unit Control Buttons & Connector Terminals H240
G01339420Courtesy of HYUNDAI MOTOR CO.

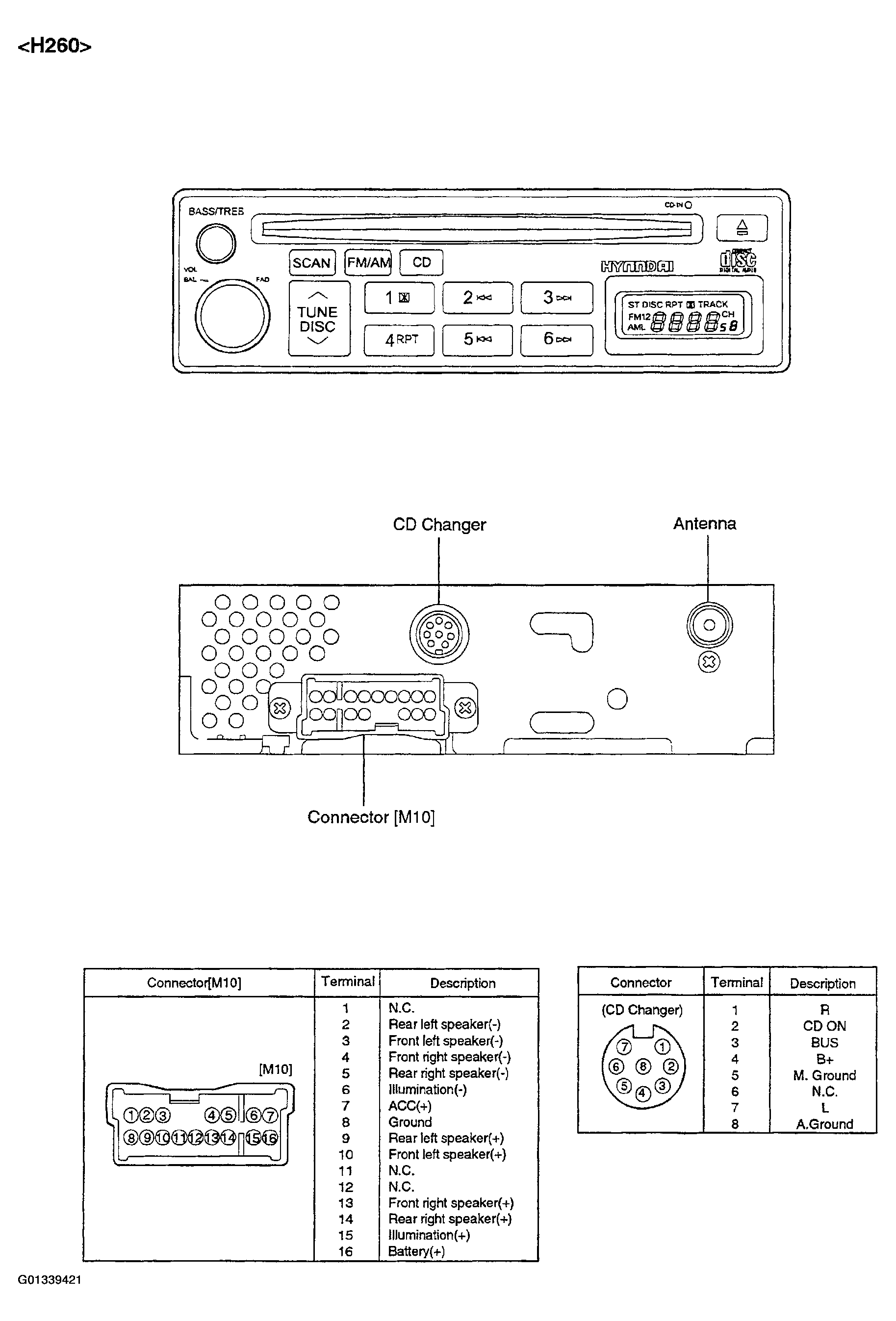

Fig 2: Identifying Audio Unit Control Buttons & Connector Terminals H260
G01339421Courtesy of HYUNDAI MOTOR CO.

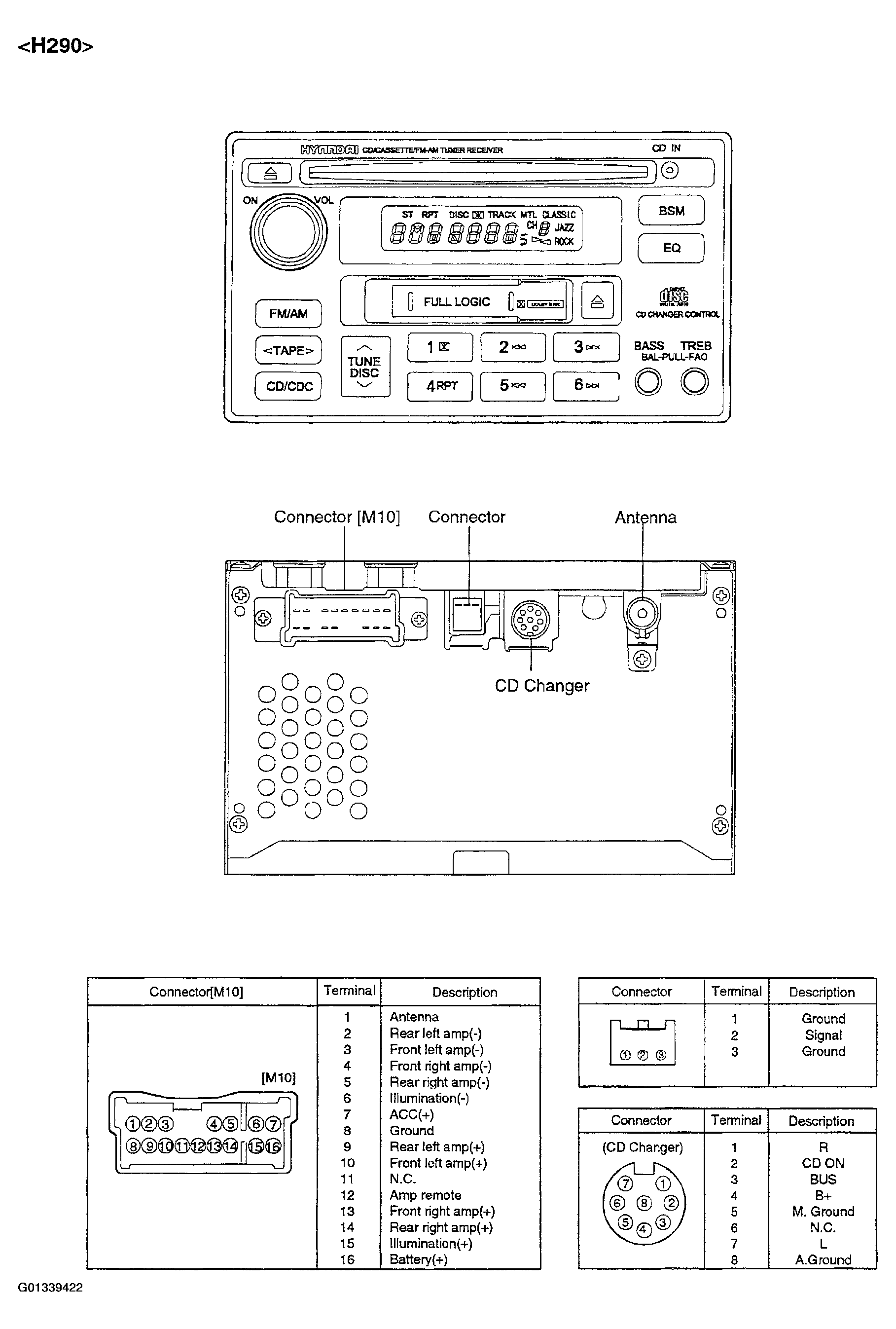

Fig 3: Identifying Audio Unit Control Buttons & Connector Terminals H290
G01339422Courtesy of HYUNDAI MOTOR CO.
