Main Moving System: Crankshaft: Components

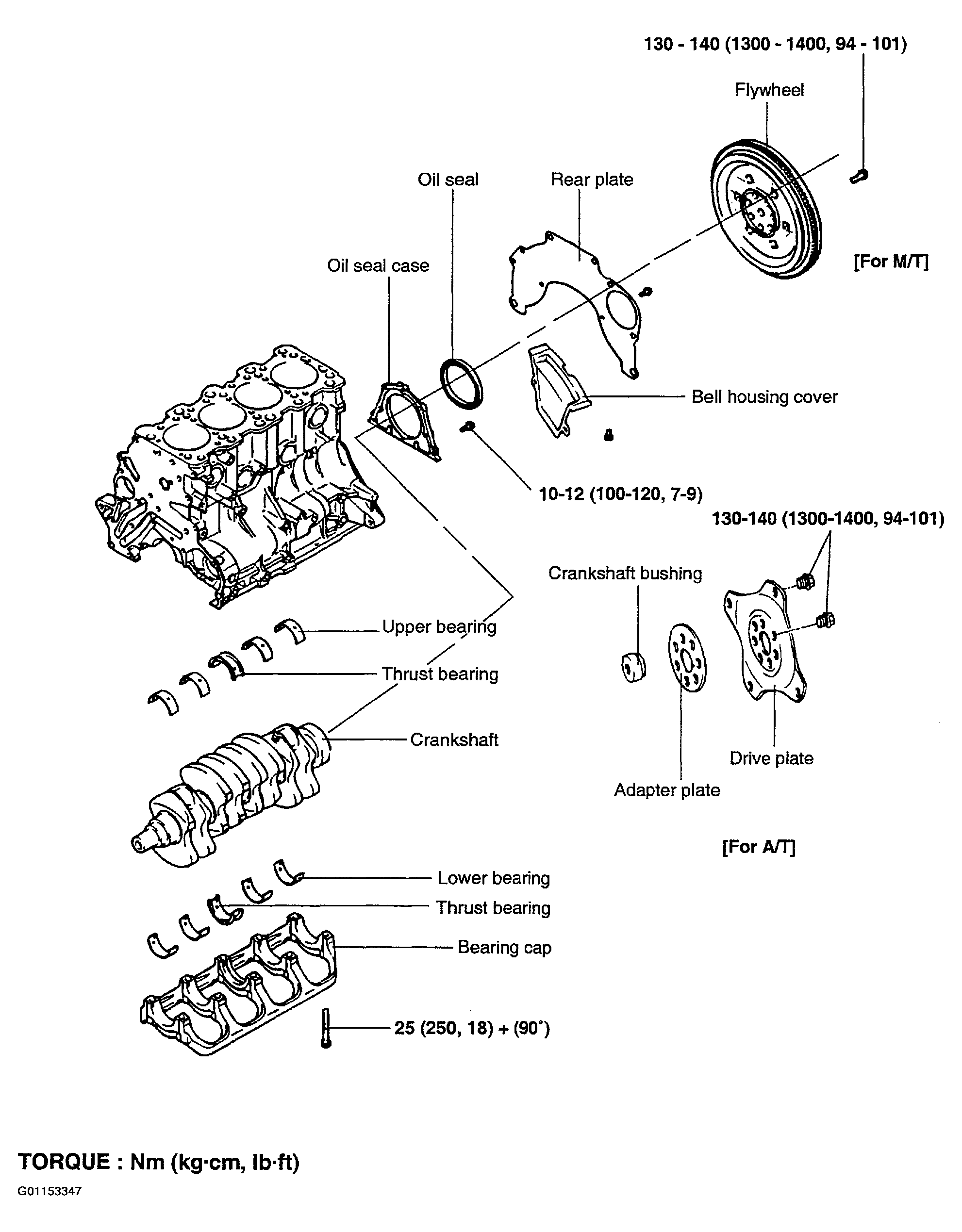

Fig 1: Crank Shaft Components

G01153347

Courtesy of HYUNDAI MOTOR CO.
