Counter Balance Shaft

  1. Check the journals for wear or seizure.
  2. If excessive wear or seizure is evident, check the bearing carefully.
  3. If necessary, replace the counter balance shaft bearing or the shaft itself.

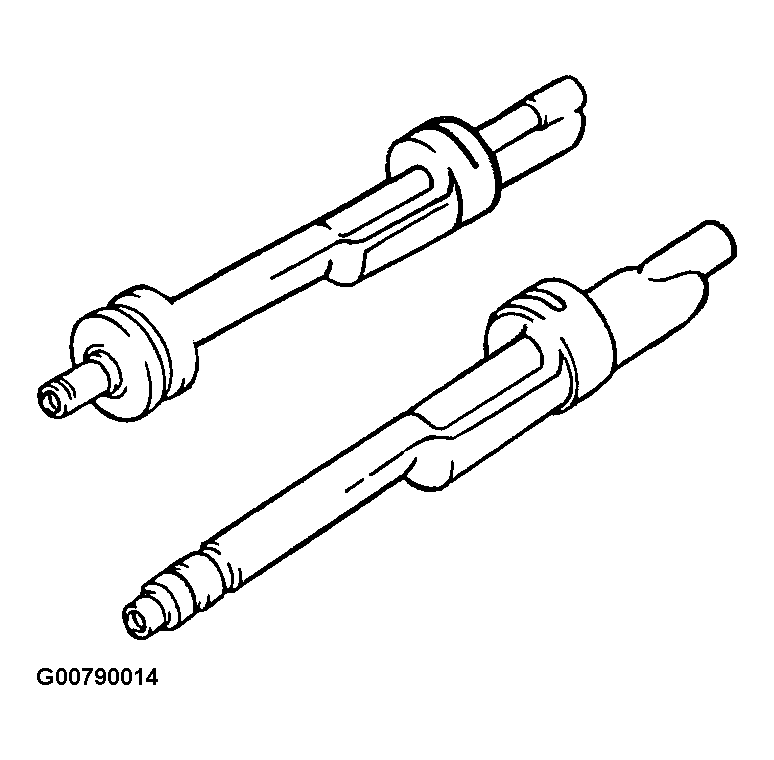

    Fig 1: Identifying Counter Balance Shaft
    G00790014Courtesy of HYUNDAI MOTOR CO.
