Coolant Temperature Sensor: Removal

  1. Drain the coolant to a level below the bottom of the sensor.
  2. Disconnect the ground cable from the battery and then remove the sensor connector.
  3. Remove the coolant sensor.

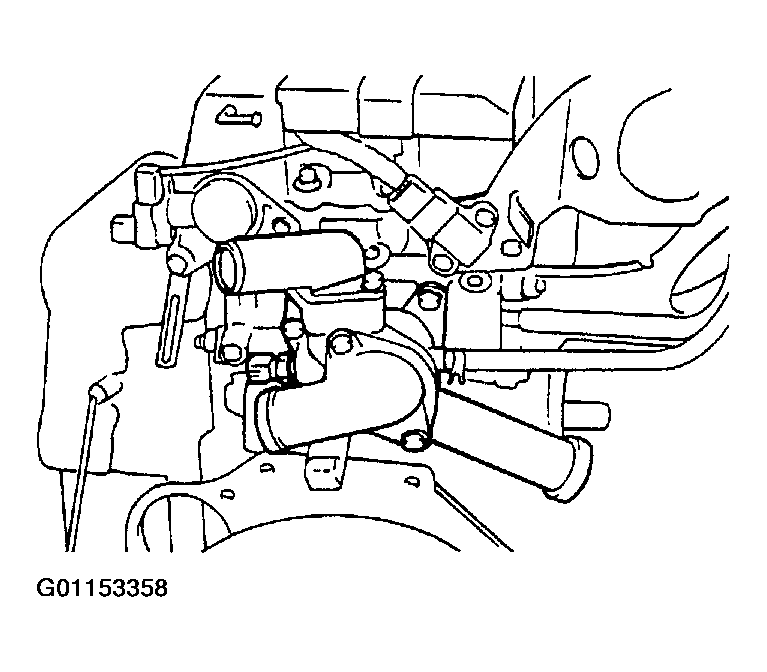

    Fig 1: Identifying Coolant Temperature Sensor
    G01153358Courtesy of HYUNDAI MOTOR CO.
