Front Door: Notes

Remove the quadrant inner cover and the rear view mirror.

Fig 1: Identifying Rear View Mirror Mounting Screws
Courtesy of HYUNDAI MOTOR CO.
Remove the front door inside handle housing.

Fig 2: Identifying Front Inside Door Handle
Courtesy of HYUNDAI MOTOR CO.
Remove the front door trim panel.

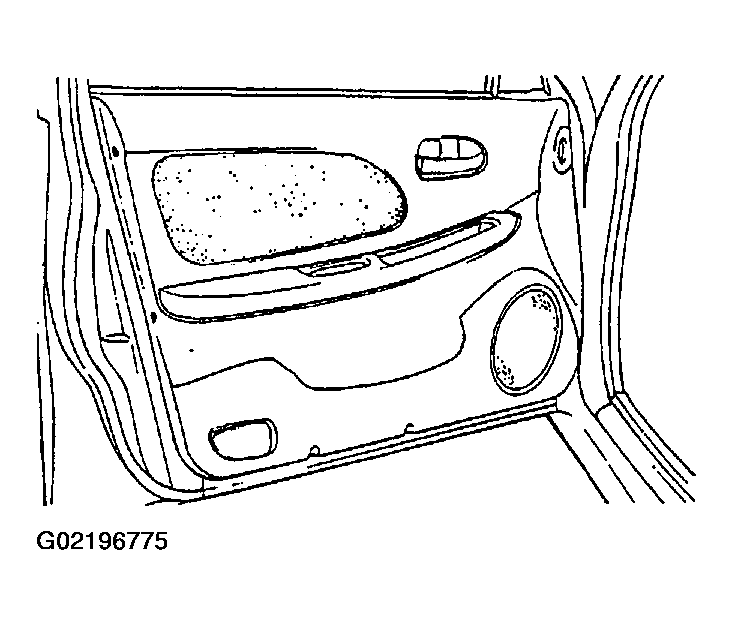

Fig 3: View Of Front Door Trim Panel
Courtesy of HYUNDAI MOTOR CO.
Insert a trim panel remover between the trim fasteners and the door trim panel to pry off.
Disconnect the door lamp connector.

Fig 4: Inserting A Trim Panel Remover Between The Trim Fasteners & The Door Trim Panel
Courtesy of HYUNDAI MOTOR CO.
Remove the pull handle mounting bracket, inside door handle and the door trim seal.

Fig 5: Identifying pull handle mounting bracket, inside door handle & the door trim seal
Courtesy of HYUNDAI MOTOR CO.
Remove the front speaker.

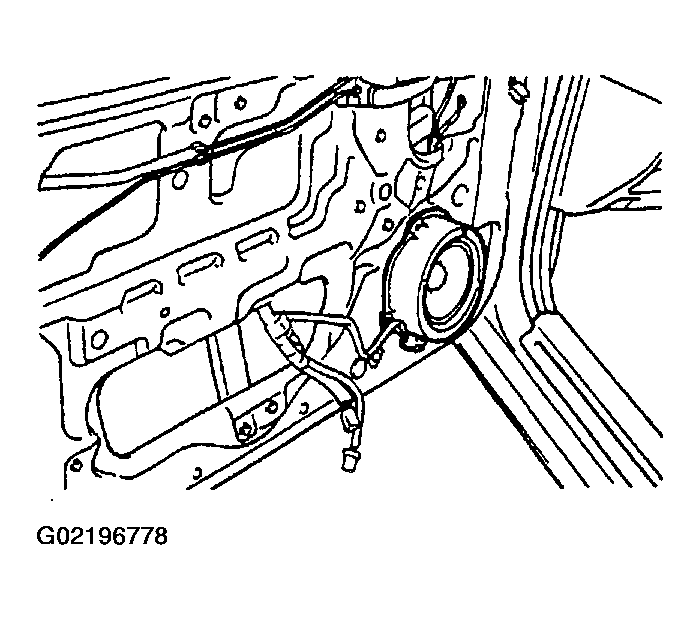

Fig 6: Identifying Front Speaker
Courtesy of HYUNDAI MOTOR CO.
Remove the front door belt outside weatherstrip.

Fig 7: Removing Front Door Belt Outside Weatherstrip
Courtesy of HYUNDAI MOTOR CO.
Lower the door window glass and loosen the carrier plate mounting bolts in the regulator channel.

Fig 8: Identifying Carrier Plate Mounting Bolts
Courtesy of HYUNDAI MOTOR CO.

Tightening torque

Front door glass mounting bolts:

8-12 N.m (80-120 kg.cm, 5.8-8.7 lb.ft)
Pull the door glass out through the window slot.

Fig 9: Removing Door Glass
Courtesy of HYUNDAI MOTOR CO.
Remove the door regulator channel mounting bolts and then remove the door regulator assembly.

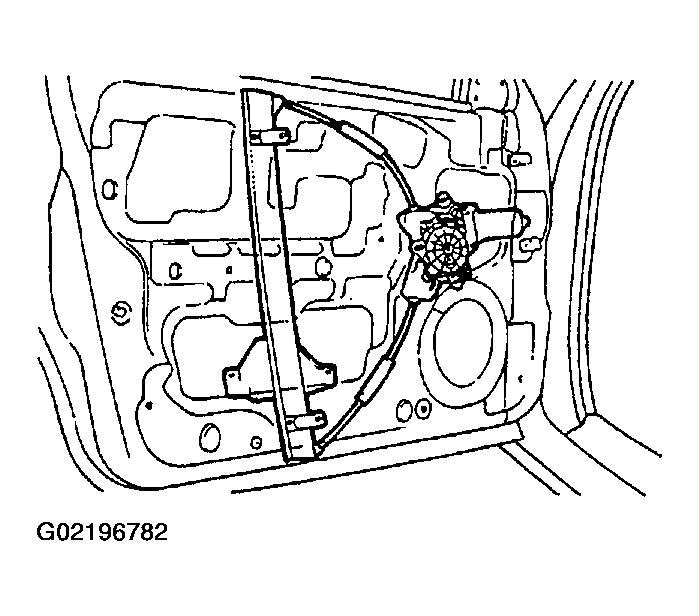

Fig 10: Identifying Door Regulator Assembly
Courtesy of HYUNDAI MOTOR CO.

Tightening torque

Door regulator channel mounting bolts:

4-6 N.m (40-60 kg.cm, 2.9-4.4 lb.ft)
Installation is the reverse of removal.
When installing the door trim seal, butyl tape should not be placed over door trim fastener mounting area.
