Manual Transaxle: Components

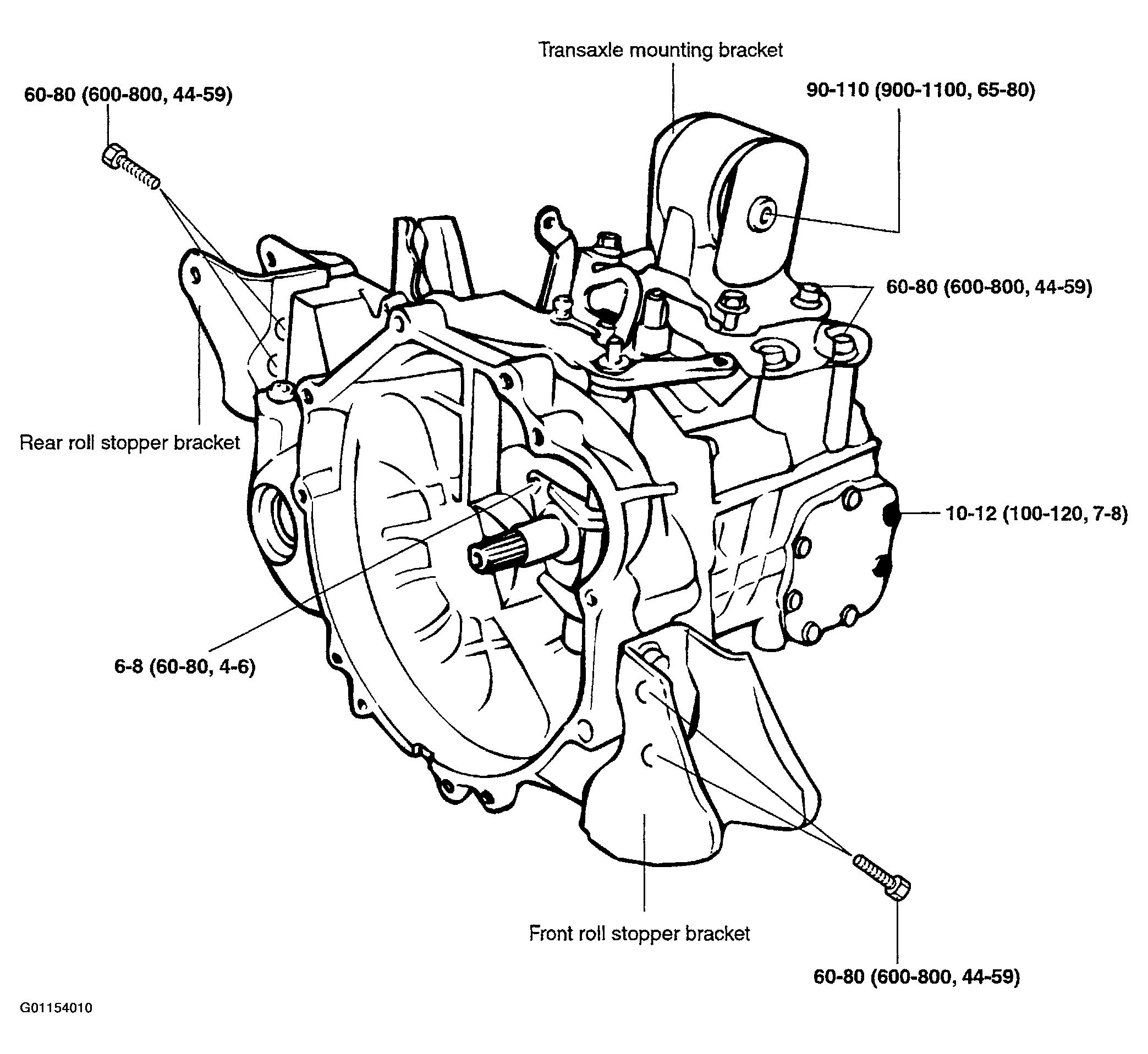

Fig 1: Manual Transaxle Components

G01154010

Courtesy of HYUNDAI MOTOR CO.
