Inspection Procedure 3

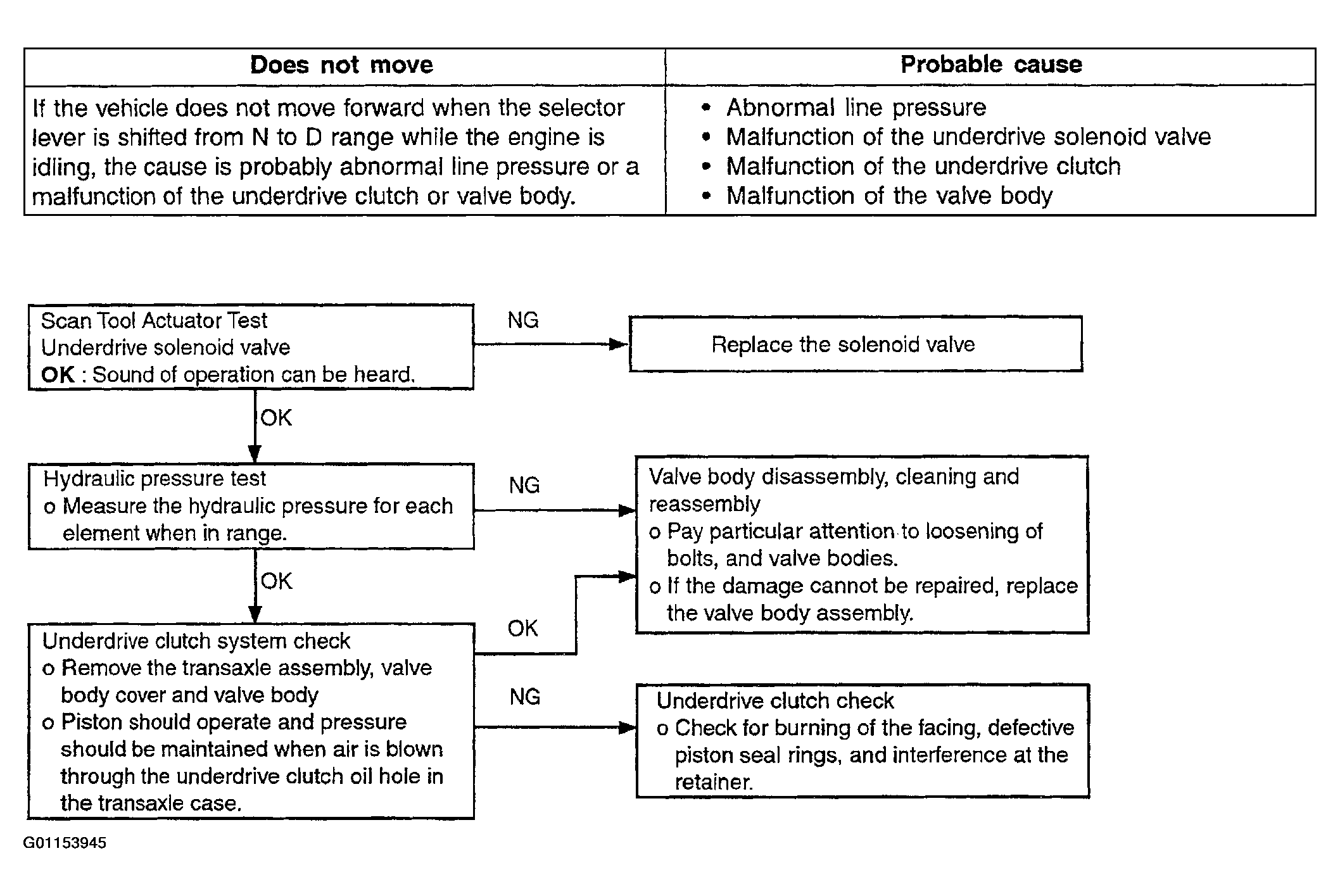

Fig 1: Vehicle Does Not Move Forward, Possible Causes Table & Flow Chart

G01153945

Courtesy of HYUNDAI MOTOR CO.
