Specific Gravity Test: Notes

WARNING: This page is about a different variant/trim than selected.
  1. Measure the specific gravity of the coolant with a hydrometer.

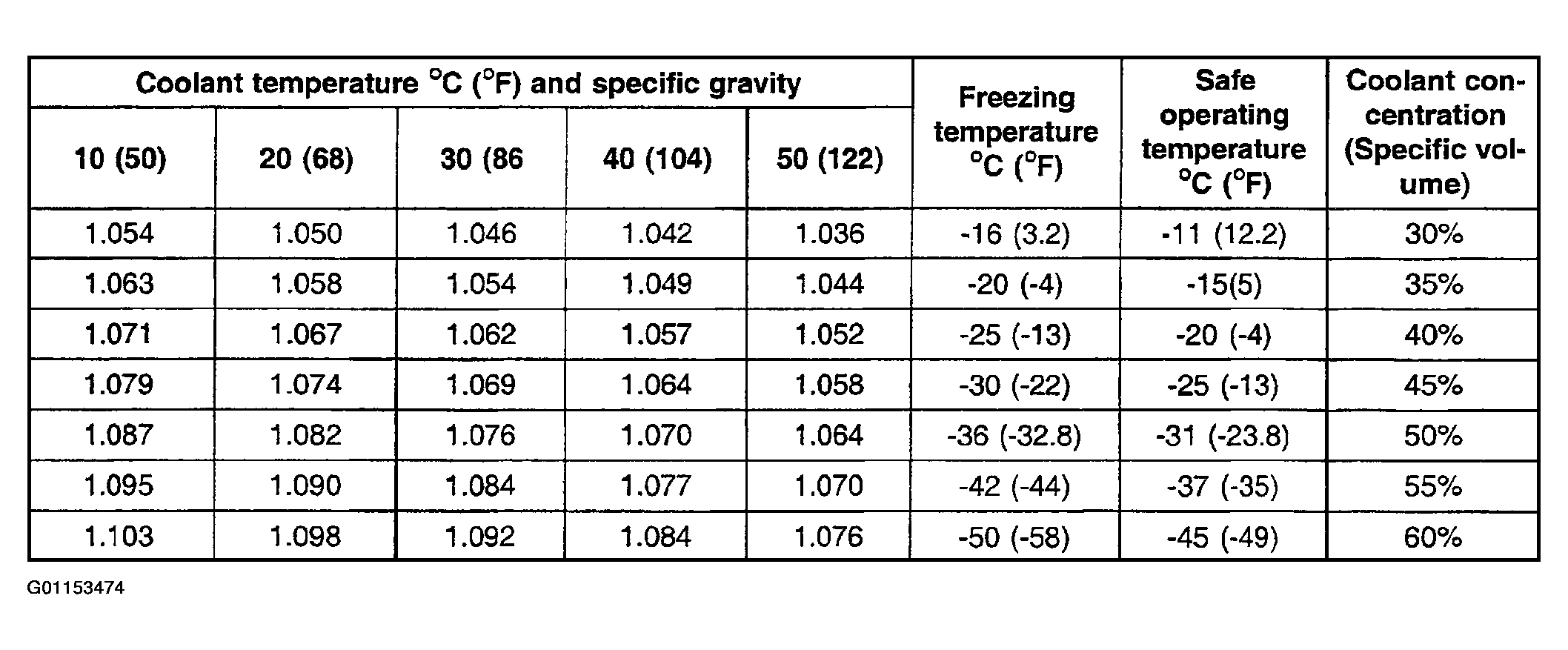

  2. Measure the coolant temperature and calculate the concentration from the relation between the specific gravity and temperature. Use the following table for reference. See Figure.

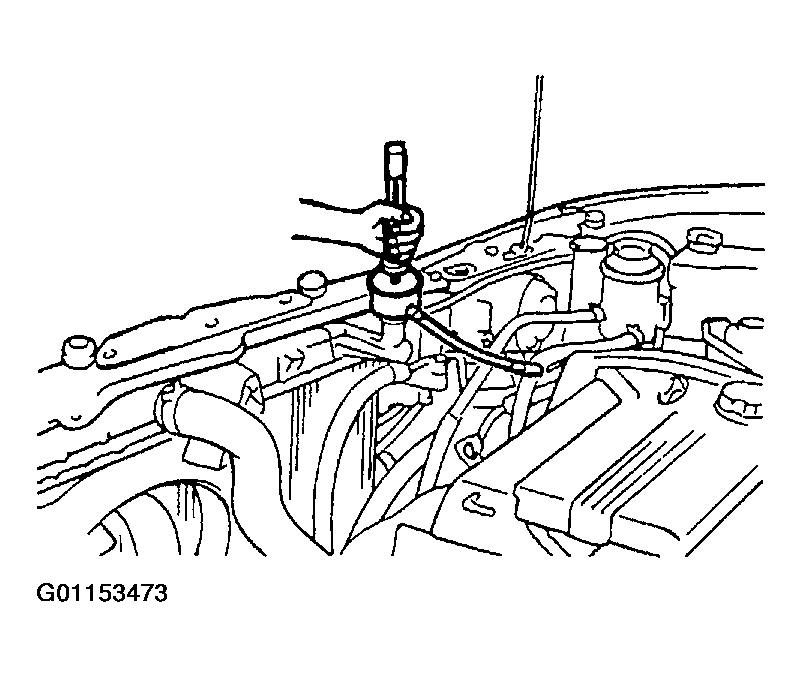

    Fig 1: Checking Coolant With Hydrometer
    G01153473Courtesy of HYUNDAI MOTOR CO.
