Connecting Rods

  1. When the connecting rod cap is installed, make sure that cylinder numbers, marked on the rod end cap at disassembly, match. When a new connecting rod is installed, make sure that the notches for holding the bearing in place are on the same side.
  2. Replace the connecting rod if it is damaged at either end of the thrust faces. IF it has stratified wear in, or if the surface of, the inside diameter of the small end is severely rough, replace the rod.

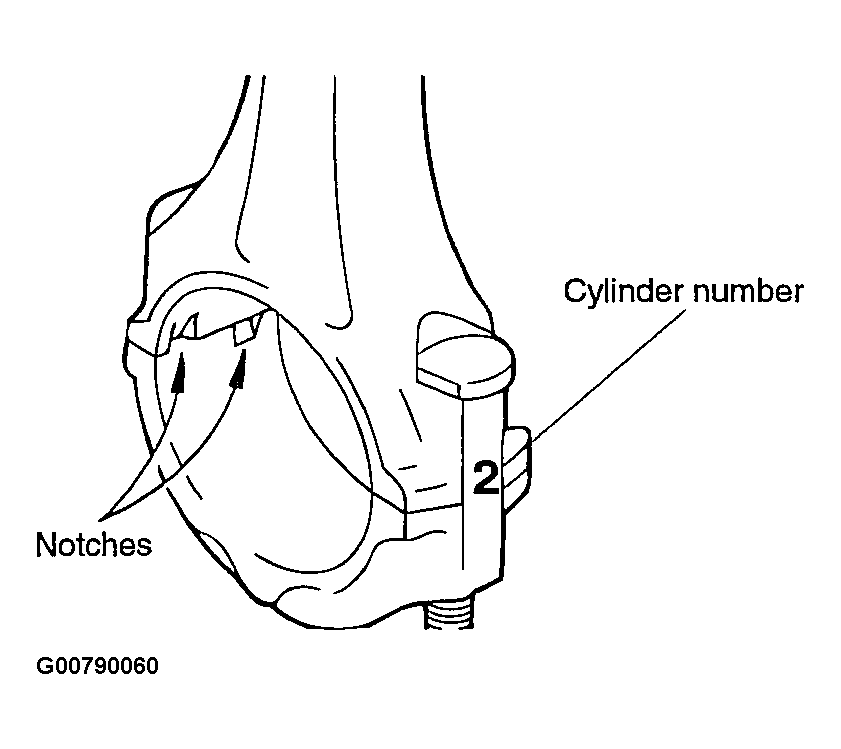

    Fig 1: Identifying Connecting Rod Bearing Notches
    G00790060Courtesy of HYUNDAI MOTOR CO.
