Passenger Compartment Relay Box

NOTE: Passenger compartment relay box is located under driver's side of instrument panel. See Figure .

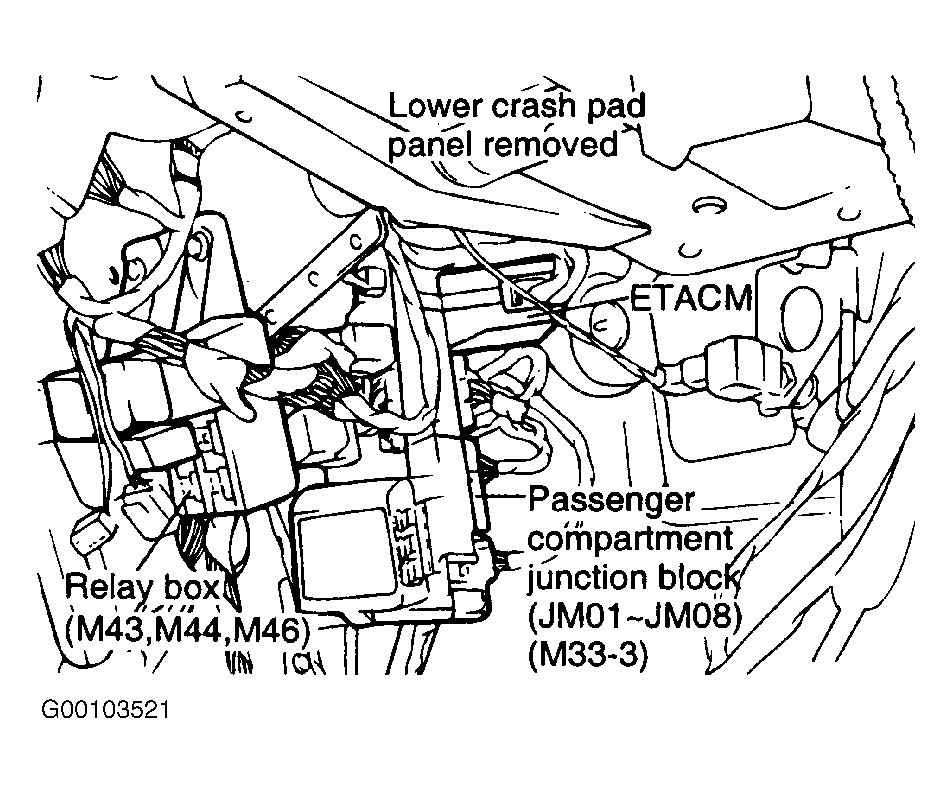

Fig 1: Identifying Passenger Compartment Relay Box
G00353671Courtesy of HYUNDAI MOTOR CO.
