Engine Compartment Junction Box

NOTE: Engine compartment junction box is located on driver's side of engine compartment. See Fig 1 .

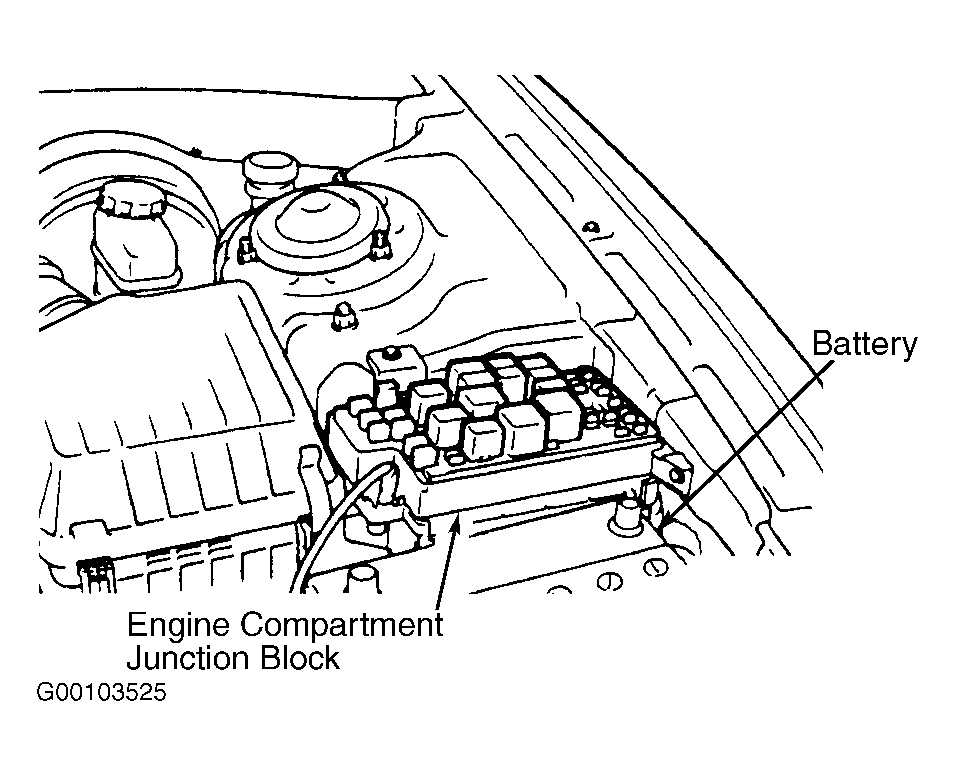

Fig 1: Locating Engine Compartment Junction Block

Courtesy of HYUNDAI MOTOR CO.

Fig 2: Identifying Engine Compartment Junction Block Components

Courtesy of HYUNDAI MOTOR CO.

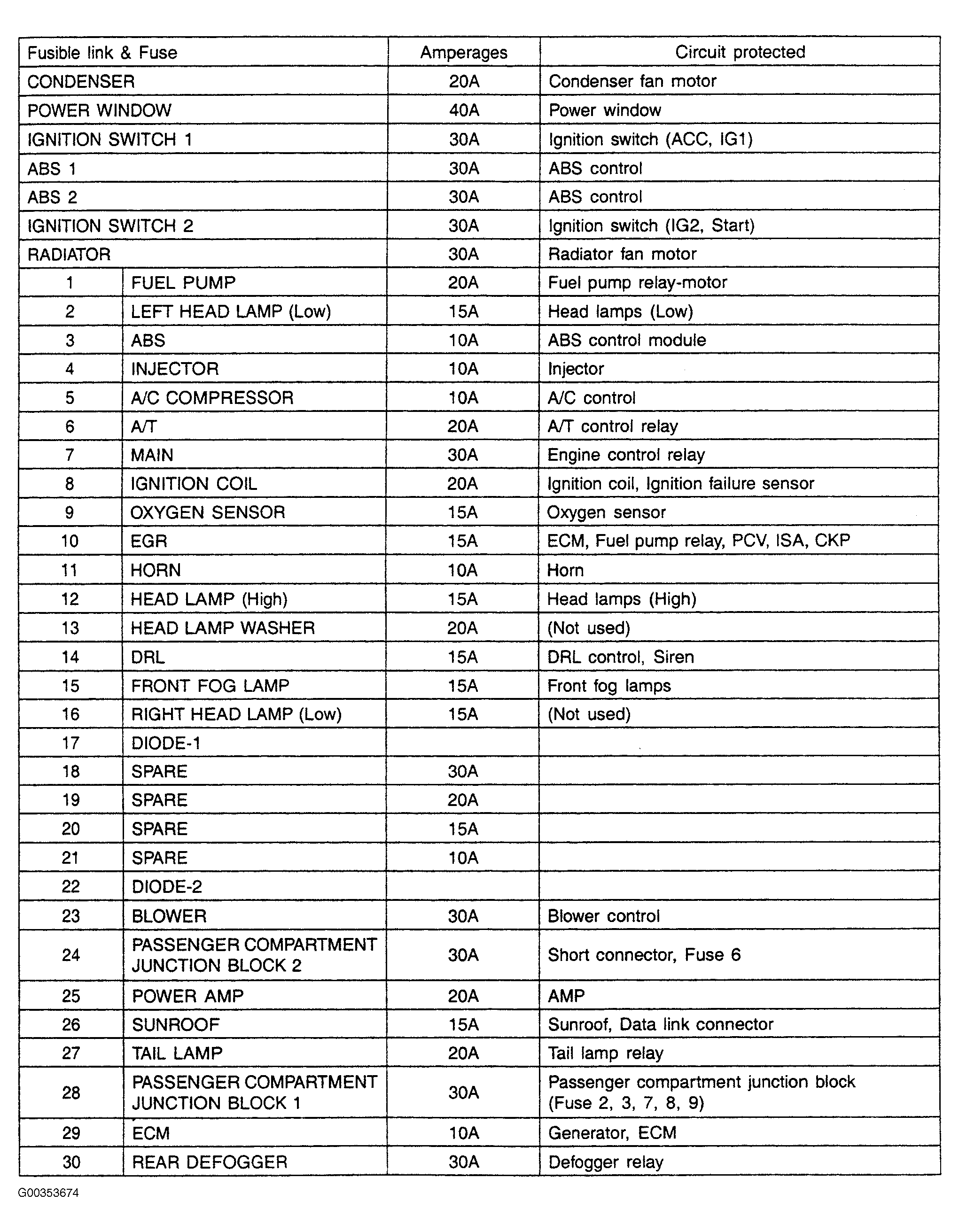

Fig 3: Engine Compartment Junction Block Legend (2002)

Courtesy of HYUNDAI MOTOR CO.

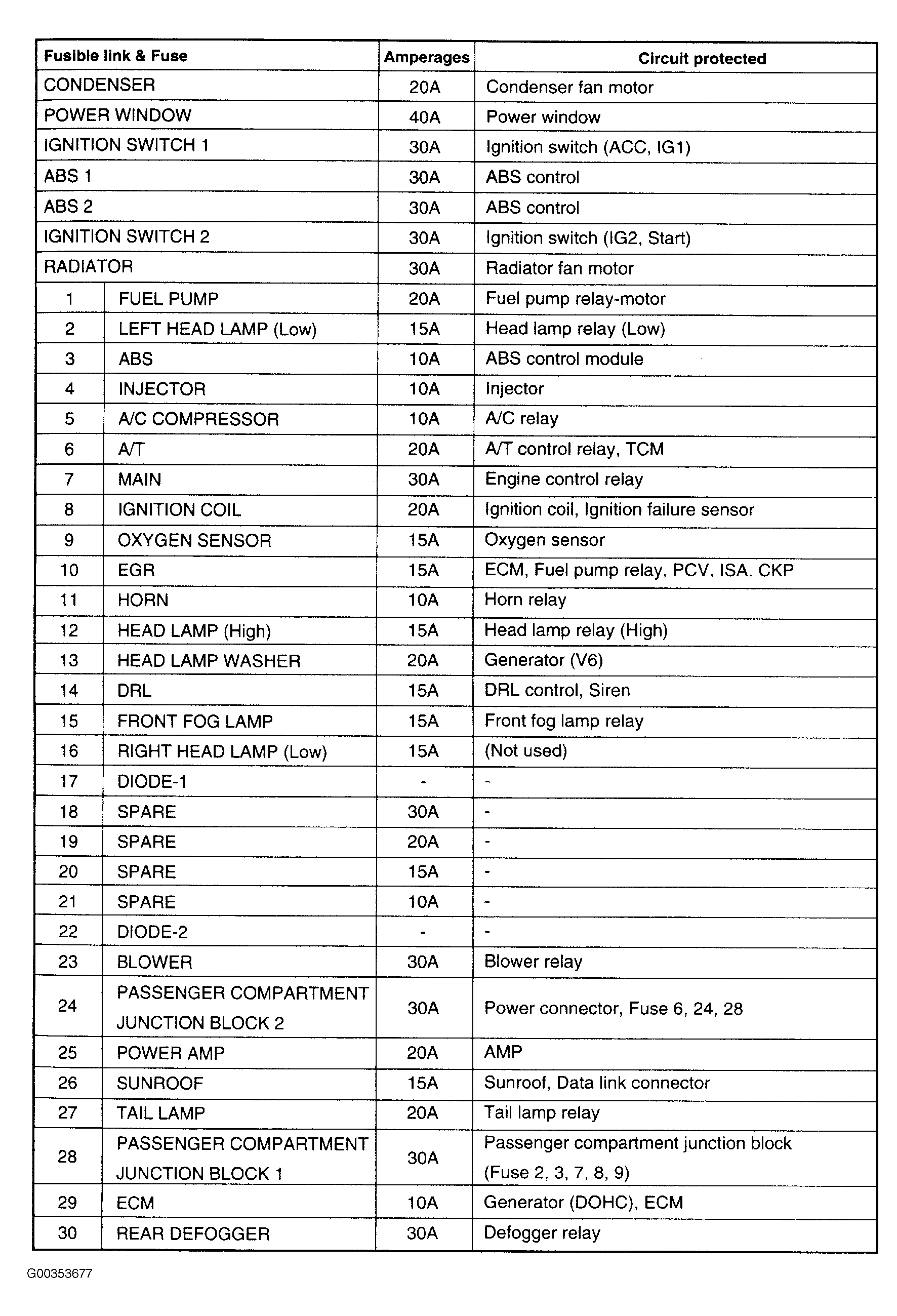

Fig 4: Engine Compartment Junction Block Legend (2003)

Courtesy of HYUNDAI MOTOR CO.

Fig 5: Engine Compartment Junction Block Legend (2004)

Courtesy of HYUNDAI MOTOR CO.
