Multifunction Switch Assembly Connector End Views

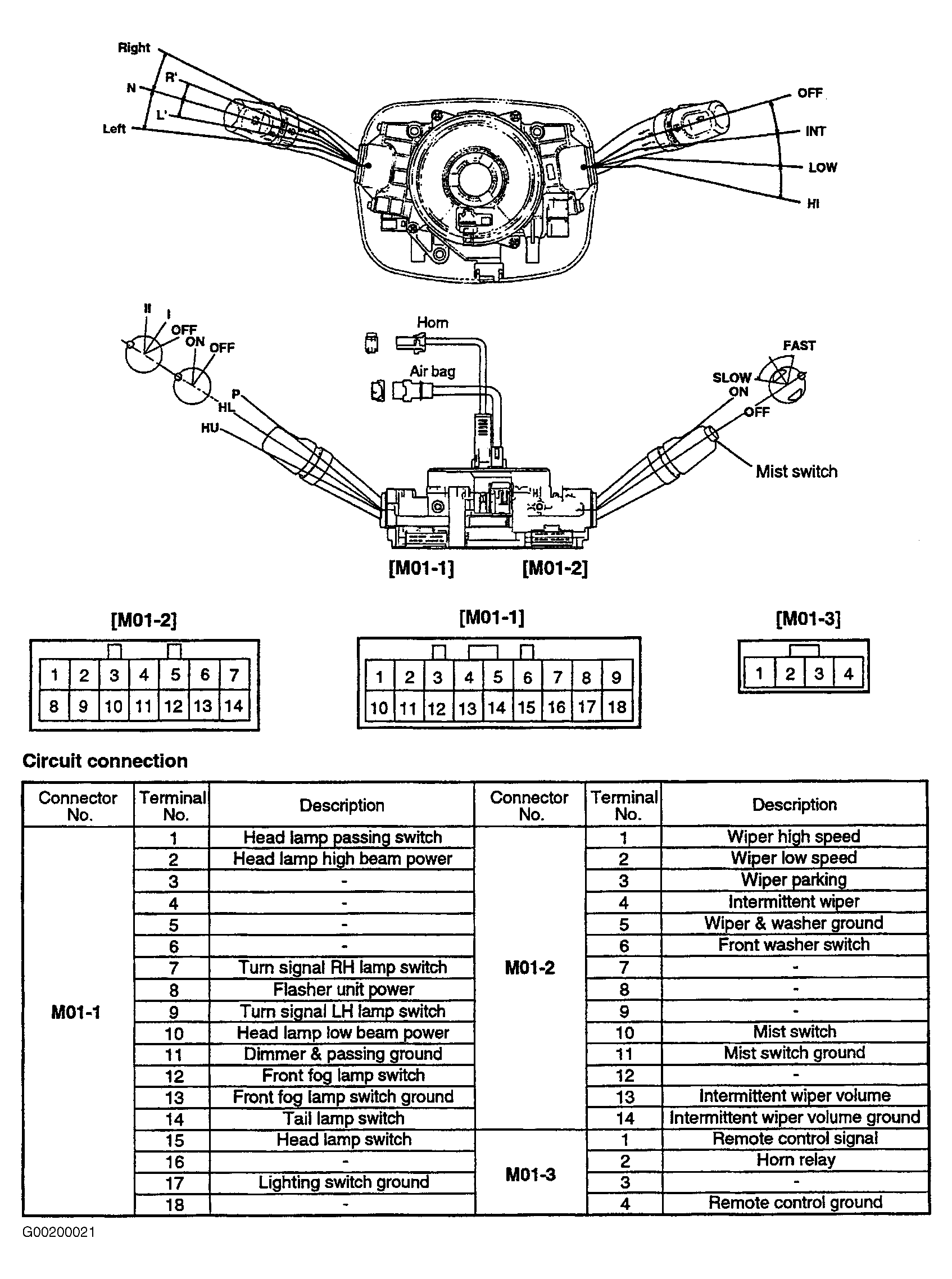

Fig 1: Multifunction Switch Assembly Connector End Views

G00200021

Courtesy of HYUNDAI MOTOR AMERICA
