Rear Door: Notes

Remove the rear door inside handle housing.

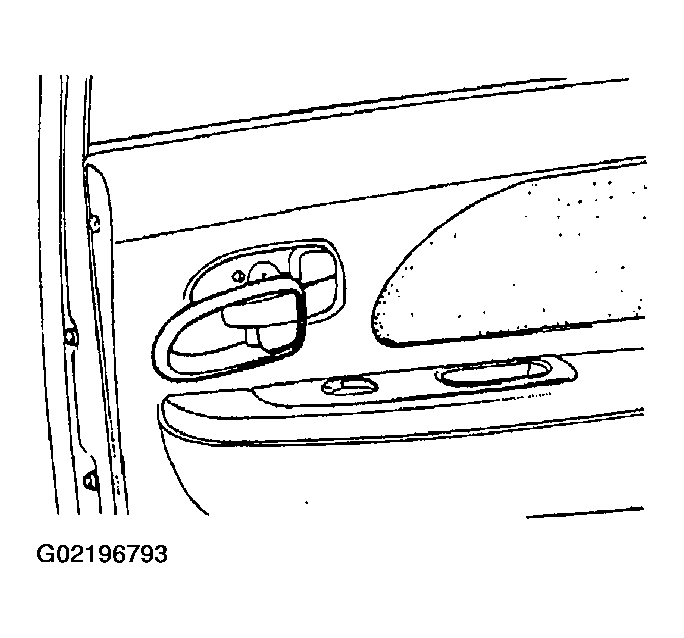

Fig 1: Identifying Rear Door Inside Handle Housing
Courtesy of HYUNDAI MOTOR CO.
Remove the mounting screws (3EA) from the rear door trim panel.

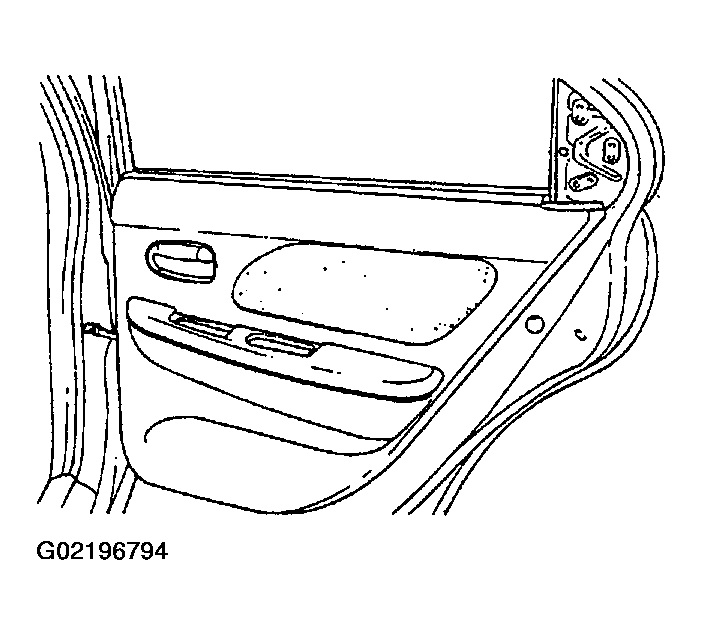

Fig 2: View Of Rear Door Inside Trim Panel
Courtesy of HYUNDAI MOTOR CO.
Insert a trim panel remover between the trim fasteners and the door trim panel to pry off. Disconnect the connector.

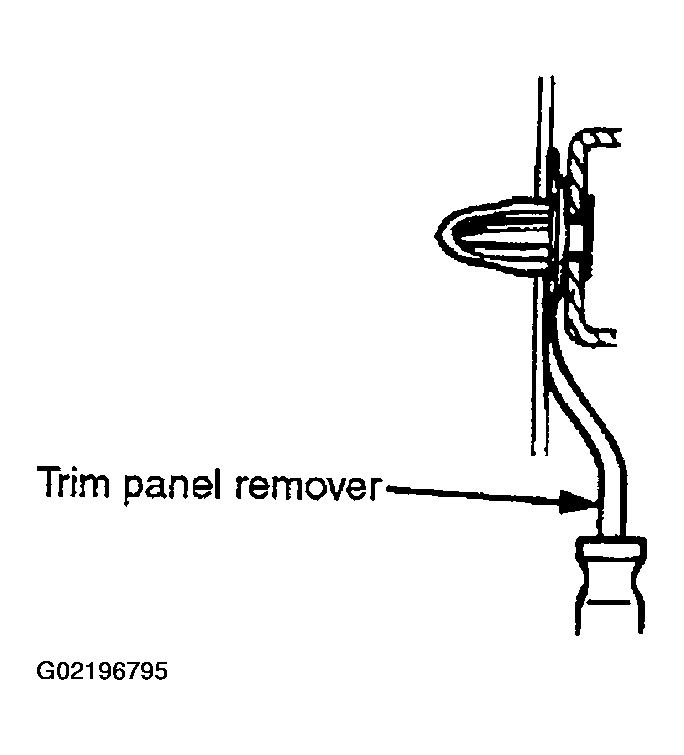

Fig 3: Inserting A Trim Panel Remover Between The Trim Fasteners & The Door Trim Panel
Courtesy of HYUNDAI MOTOR CO.
Remove the door pull handle mounting bracket and inside door handle.

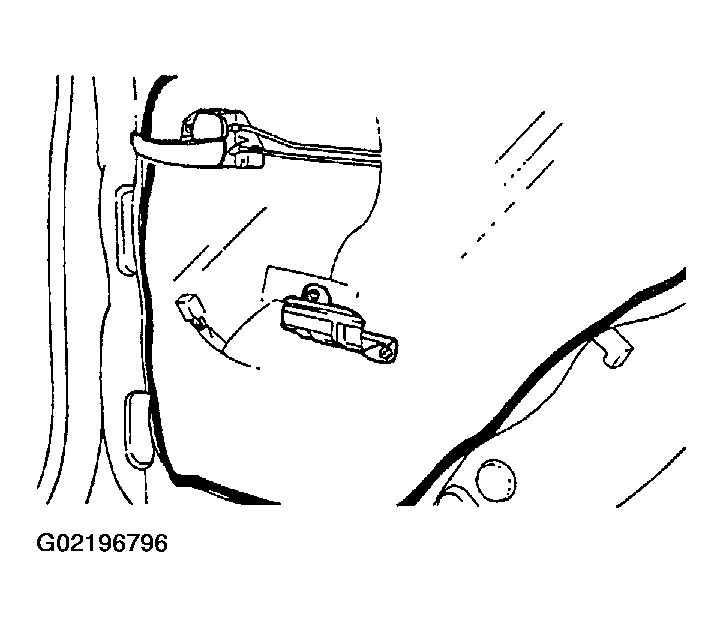

Fig 4: Identifying Door Pull Handle Mounting Bracket & Inside Door Handle
Courtesy of HYUNDAI MOTOR CO.
Remove the door trim seal.

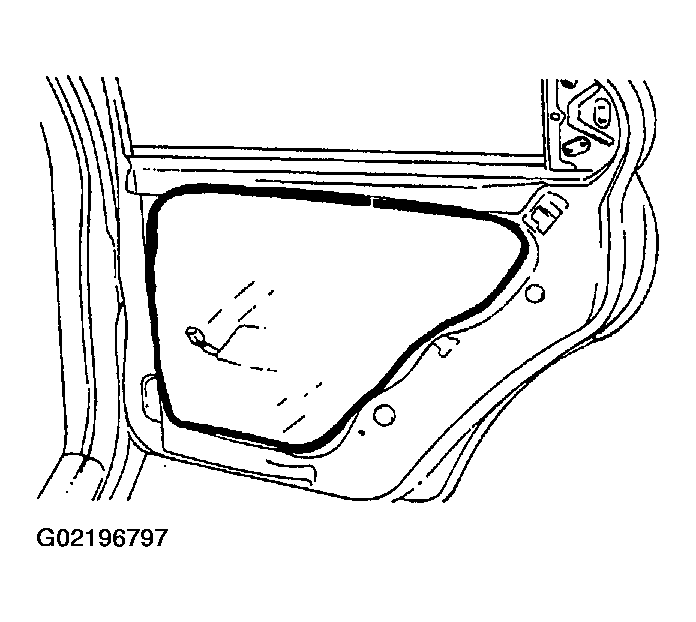

Fig 5: Identifying Door Trim Seal
Courtesy of HYUNDAI MOTOR CO.
Lower the door glass and remove the door glass run and delta lower channel.

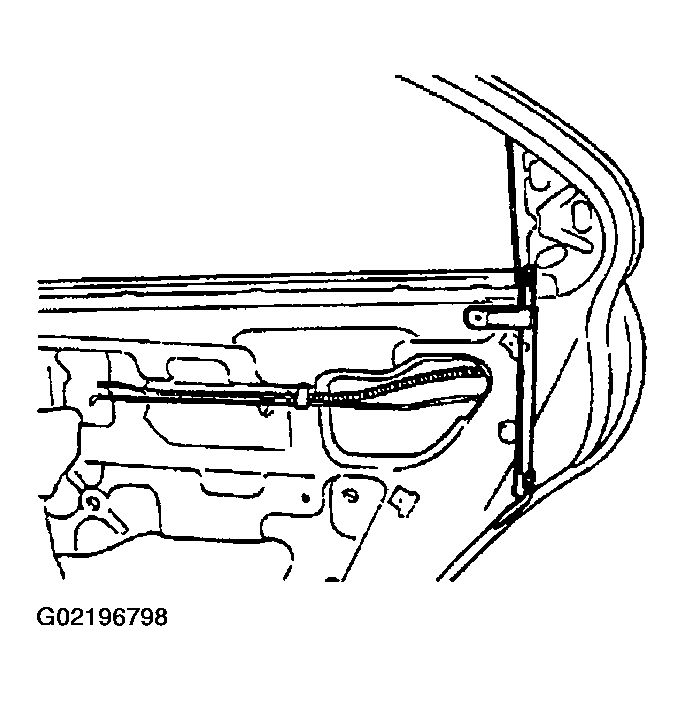

Fig 6: Identifying The Door Glass Run & Delta Lower Channel
Courtesy of HYUNDAI MOTOR CO.

Tightening torque

Rear door glass mounting bolts:

8-12 N.m (80-120 kg.cm, 5.8-8.7 lb.ft)

Delta lower channel mounting bolts:

8-12 N.m (80-120 kg.cm, 5.8-8.7 lb.ft)
Remove the carrier plate mounting bolts from the door regulator channel and remove the door glass.

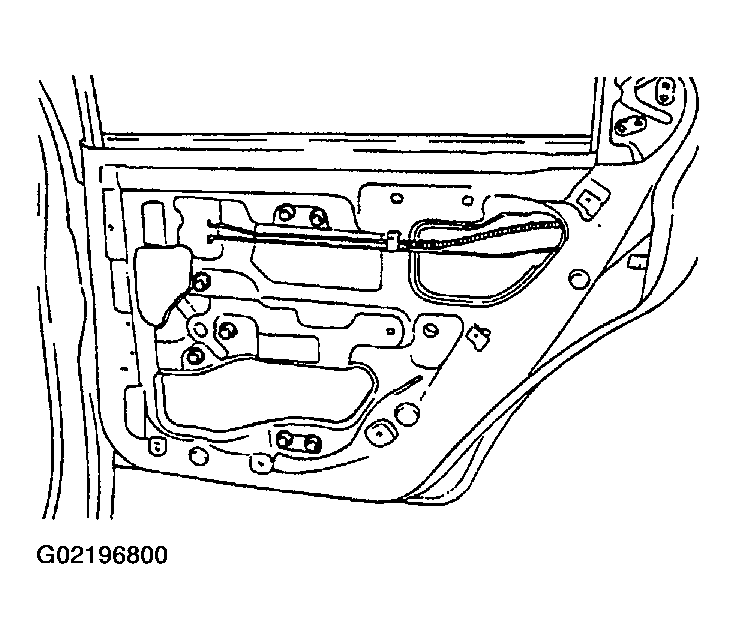

Fig 7: Removing Carrier Plate Mounting Bolts From Door Regulator Channel & Removing Door Glass
Courtesy of HYUNDAI MOTOR CO.
Remove the door regulator channel mounting bolts and then remove the door regulator assembly.

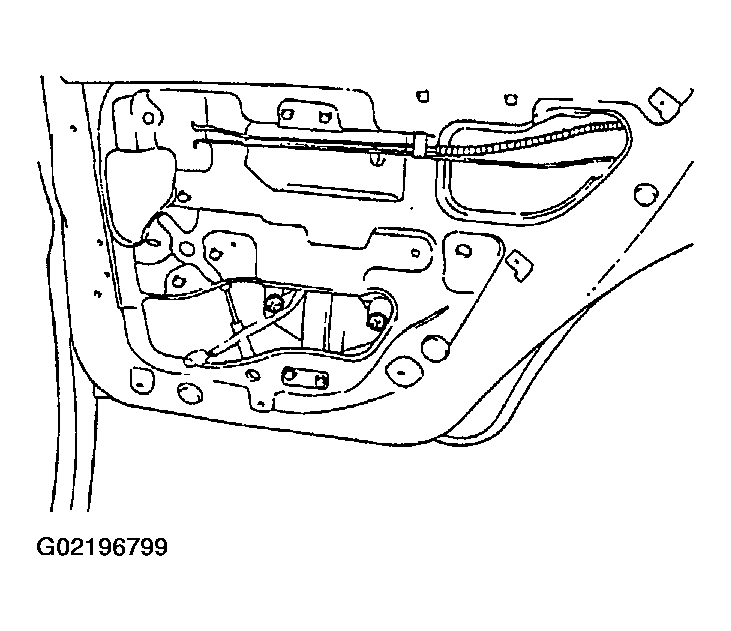

Fig 8: Identifying Door Regulator Channel Mounting Bolts
Courtesy of HYUNDAI MOTOR CO.

Tightening torque

Door regulator channel mounting bolts:

4-6 N.m (40-60 kg.cm, 2.9-4.4 lb.ft)
Installation is the reverse of removal.
When installing the door trim seal, butyl tape should not be placed over door trim fastener mounting area.
