Removal & Installation

Remove the front seat mounting covers and loosen the mounting bolts.

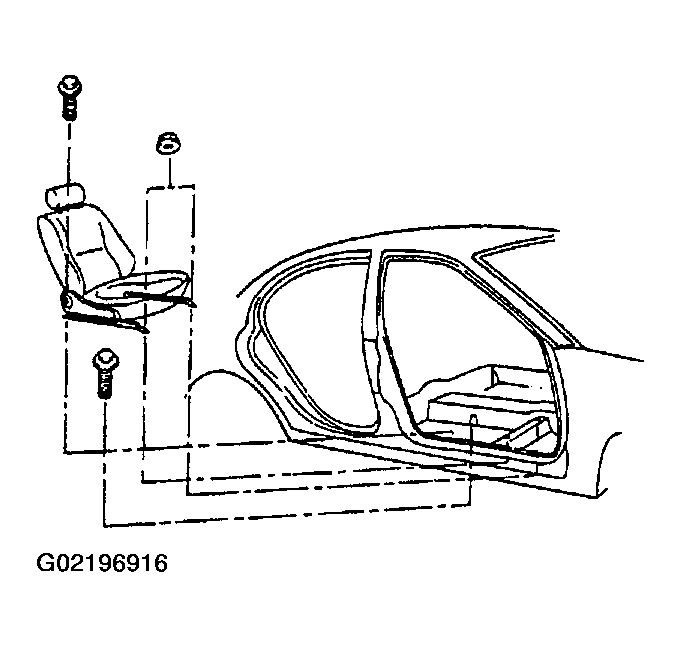

Fig 1: Identifying Front Seat Mounting Bolts & Nuts
Courtesy of HYUNDAI MOTOR CO.

Tightening torque;

35-55 N.m (350-550 kg.cm, 25.3-40 lb.ft)
Disconnect the seat wiring connectors.

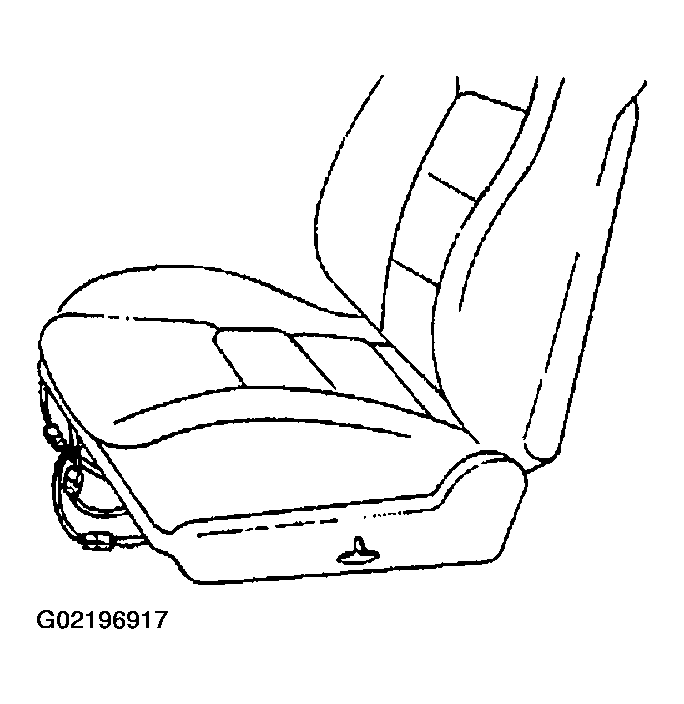

Fig 2: Identifying Power Seat Wiring & Connectors
Courtesy of HYUNDAI MOTOR CO.
Remove the front seat assembly.
Installation is the reverse of removal.
NOTE: Connect the wire connectors securely.
