Removal And Installation

  1. Disconnect the negative (-) battery terminal.
  2. Remove the two screws holding the lower crash pad panel and remove it.

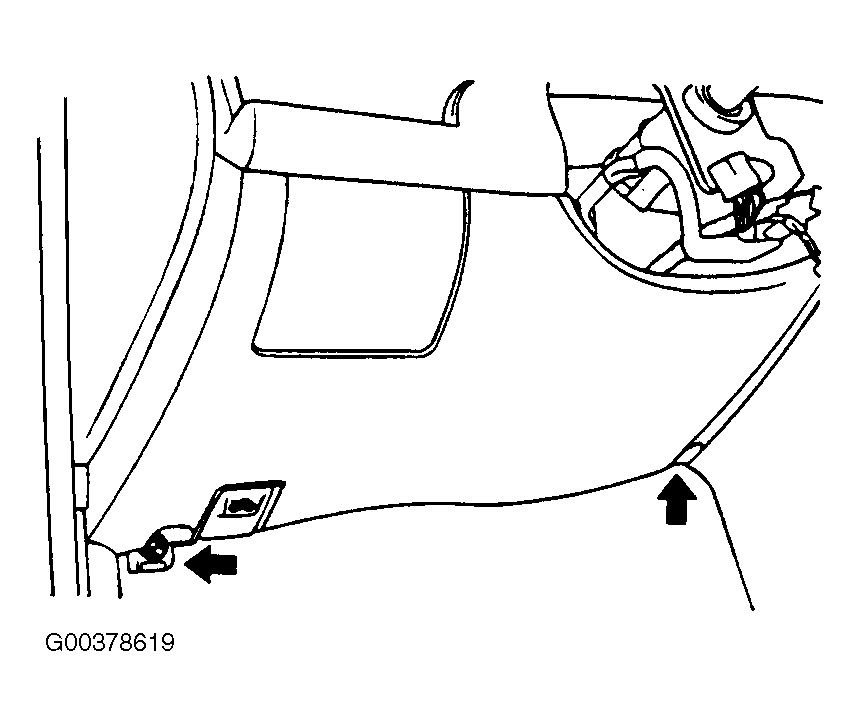

    Fig 1: Identifying Crash Pad Panel Screws
    G00378619Courtesy of HYUNDAI MOTOR CO.
  3. Remove the bolts holding the ETACS module and disconnect the connectors.

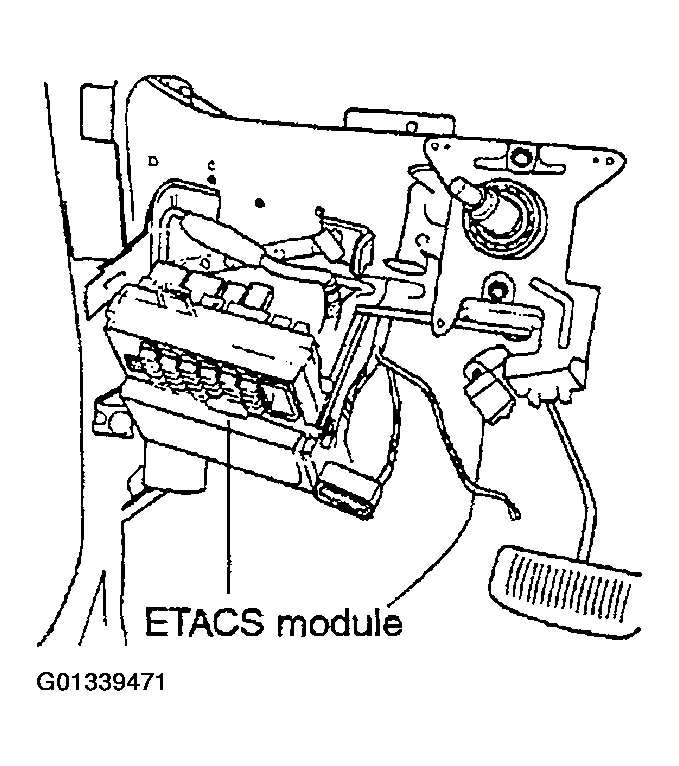

    Fig 2: Identifying ETACS Module
    G01339471Courtesy of HYUNDAI MOTOR CO.
  4. Installation is the reverse of removal.
