ETACS Function

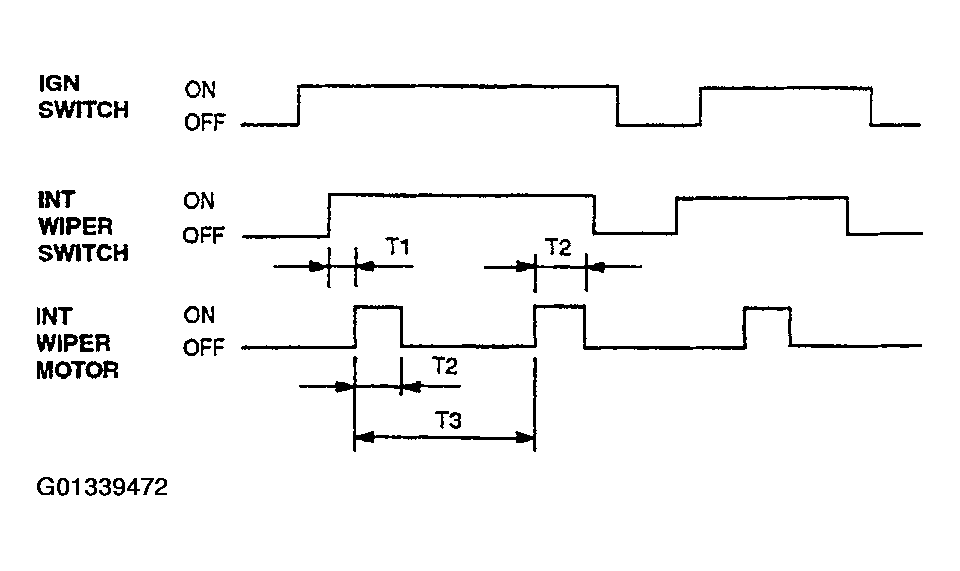

Fig 1: Vehicle Speed Sensing Intermittent Wiper Timing Chart

Courtesy of HYUNDAI MOTOR CO.

Time specification

T1: Max. 0.3 sec.

T2: 0.6-0.8 sec. (Time of wiper motor 1 rotation)

T3: At vehicle speed = 0km/h.

2.6+/-0.7 sec. (VR=0kohm) - 18.0+/-1sec (VR=50Kohm)

At vehicle speed = 100km/h or more.

1.0+/-0.2sec (VR=0kohm) - 10.0+/-1sec (VR=50Kohm)

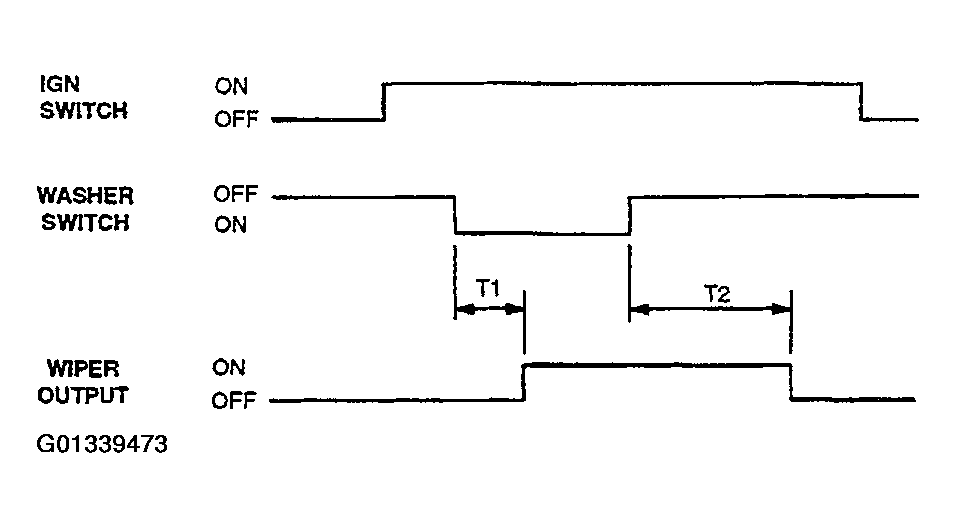

Fig 2: Washer Timing Chart

Courtesy of HYUNDAI MOTOR CO.

1. Time specification

   T1: 0.3sec.

   T2: 2.5-3.8sec.

2. This function should be operated preferentially even though the variable intermittent wiper is operating.

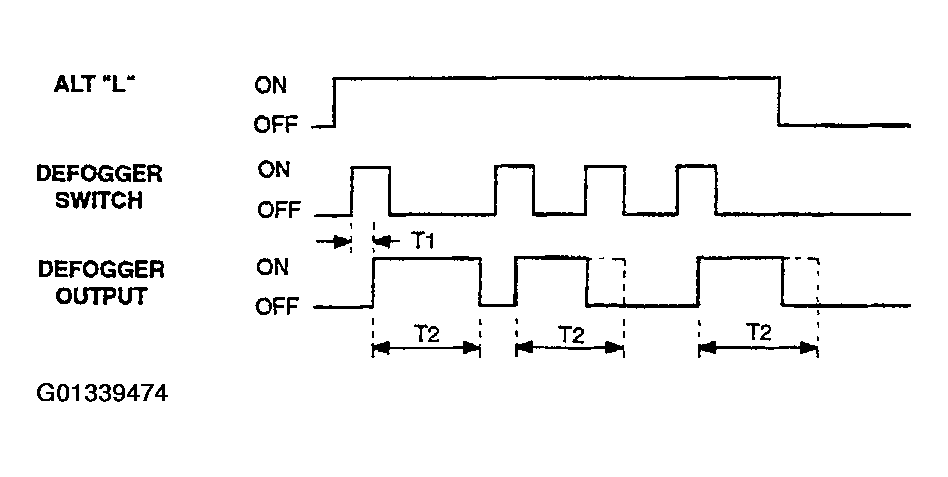

Fig 3: Rear Window Defogger Timing Chart

Courtesy of HYUNDAI MOTOR CO.

Time specification

T1: 60msec

T2: 20+/-1min.

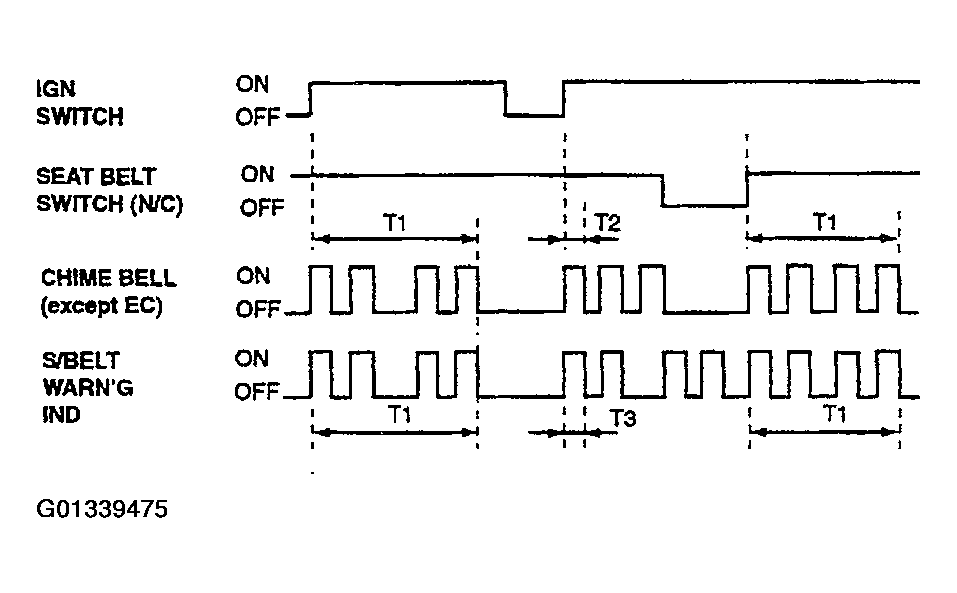

Fig 4: Seat Belt Warning Timing Chart

Courtesy of HYUNDAI MOTOR CO.

Time specification

T1: 6+/-1sec.

T2: 0.45+/-0.1sec.

T3: 0.3+/-0.1sec.

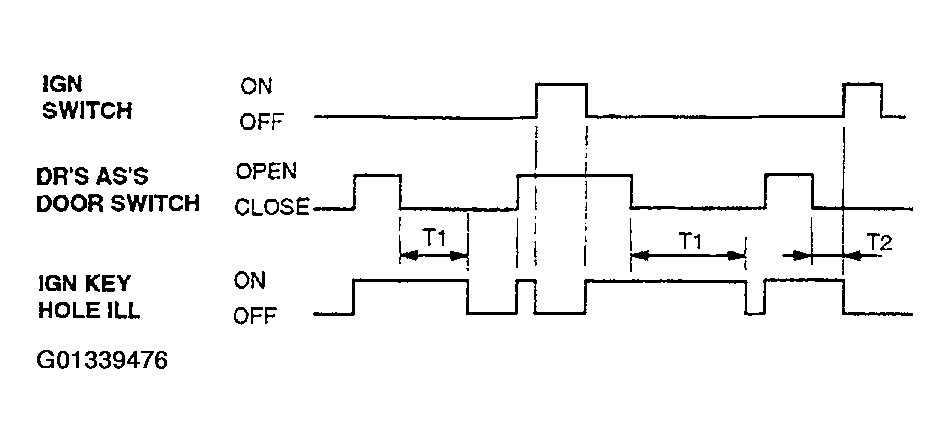

Fig 5: Ignition Key Hole Illumination Timing Chart

Courtesy of HYUNDAI MOTOR CO.

Time specification

T1: 10+/-1sec.

T2: 0-10sec.

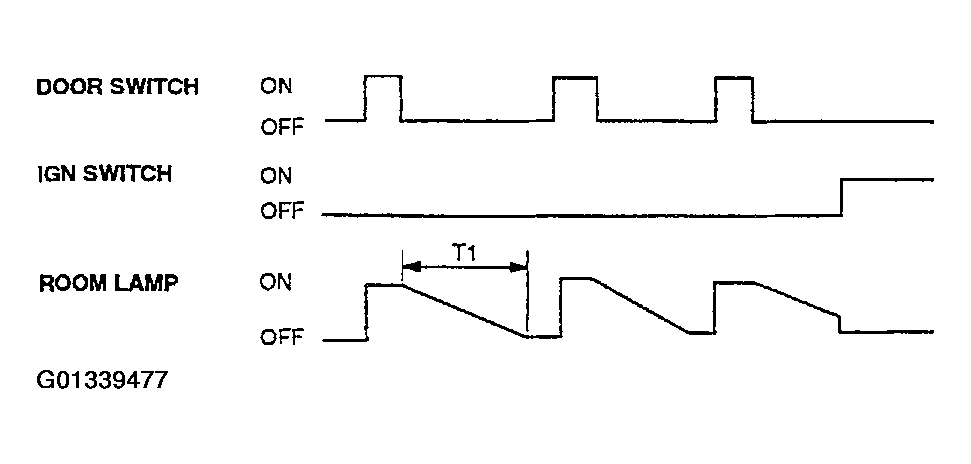

Fig 6: Decayed Out Room Lamp Timing Chart

Courtesy of HYUNDAI MOTOR CO.

Time specification

T1: 5.5+/-0.5sec.

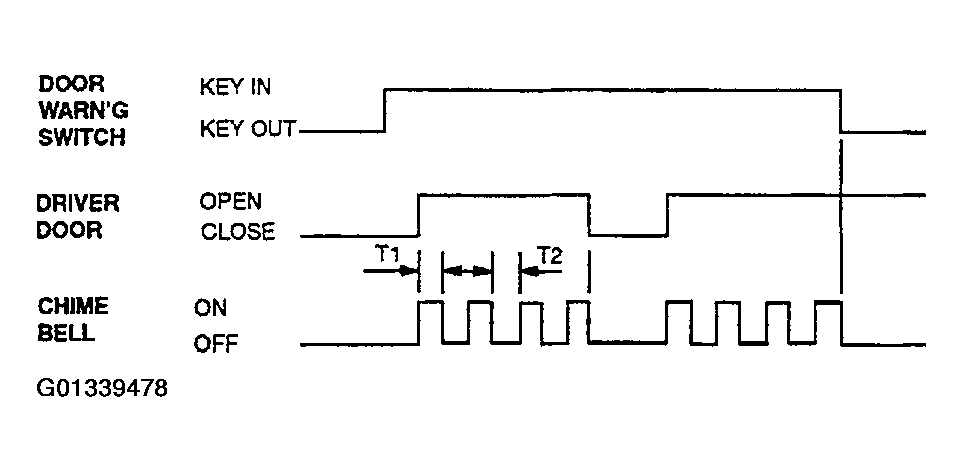

Fig 7: Key Operated Warning Timing Chart

Courtesy of HYUNDAI MOTOR CO.

Time specification

T1, T2: 0.45+/-0.1sec.

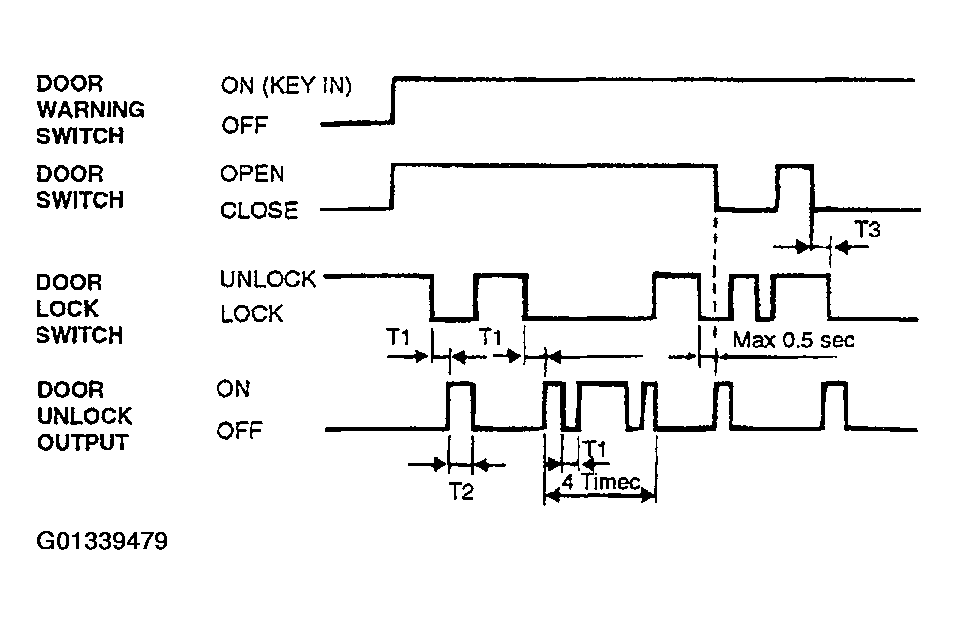

Fig 8: Ignition Key Reminder Timing Chart

Courtesy of HYUNDAI MOTOR CO.

Time specification

T1: 0.5sec.

T2: 1sec.

T3: 0 - 0.5sec.

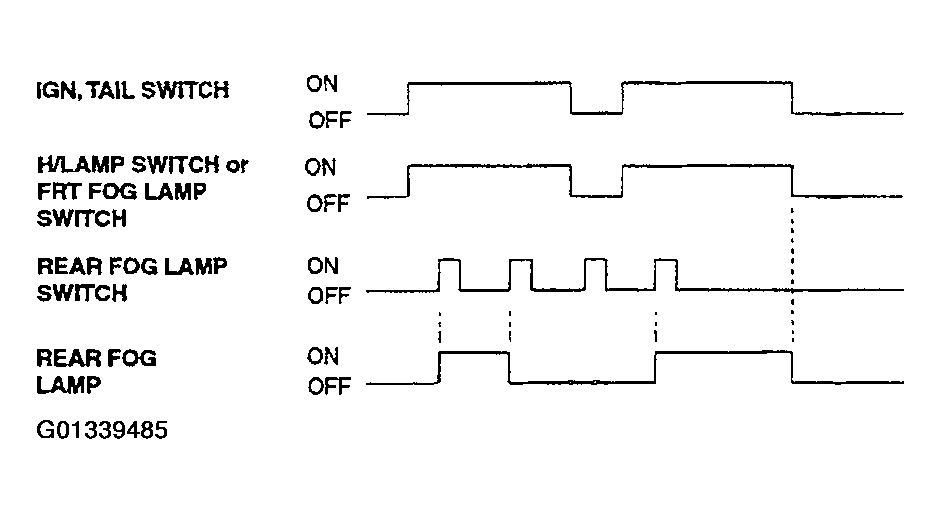

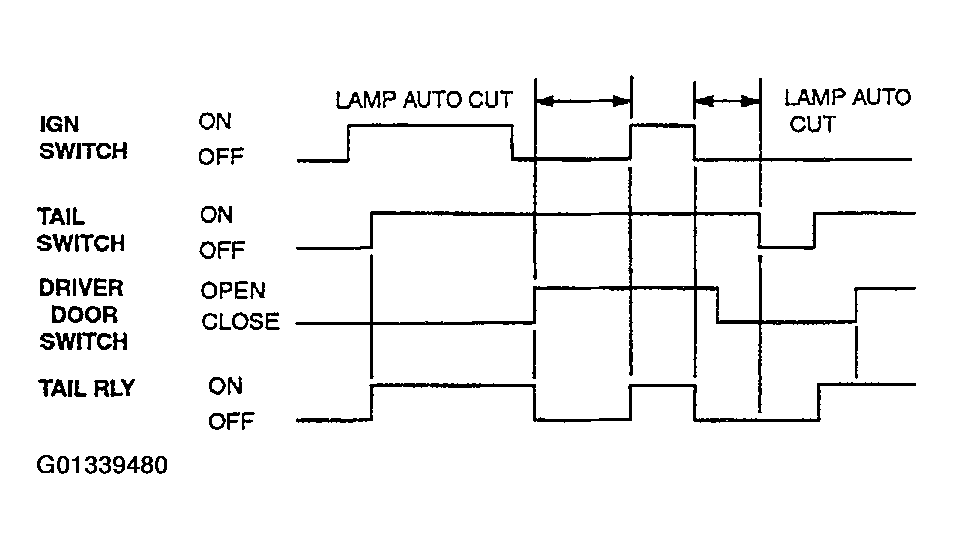

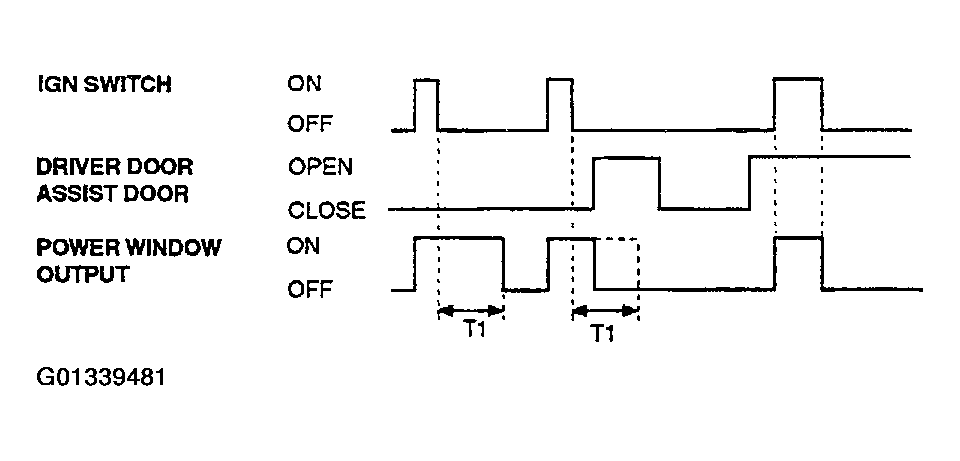

Fig 10: Power Window Timer Timing Chart

Courtesy of HYUNDAI MOTOR CO.

Time specification

T1: 30+/-5sec.

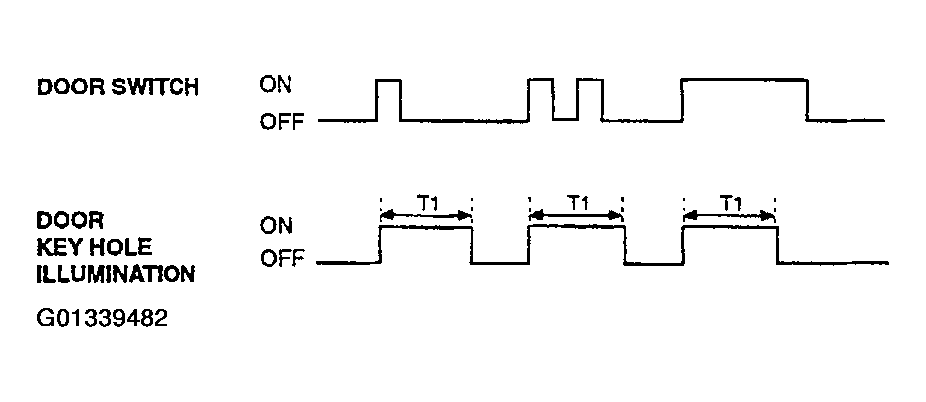

Fig 11: Outside Door Key Hole Illumination Timing Chart

Courtesy of HYUNDAI MOTOR CO.

Time specification

T1: 1041.0sec.

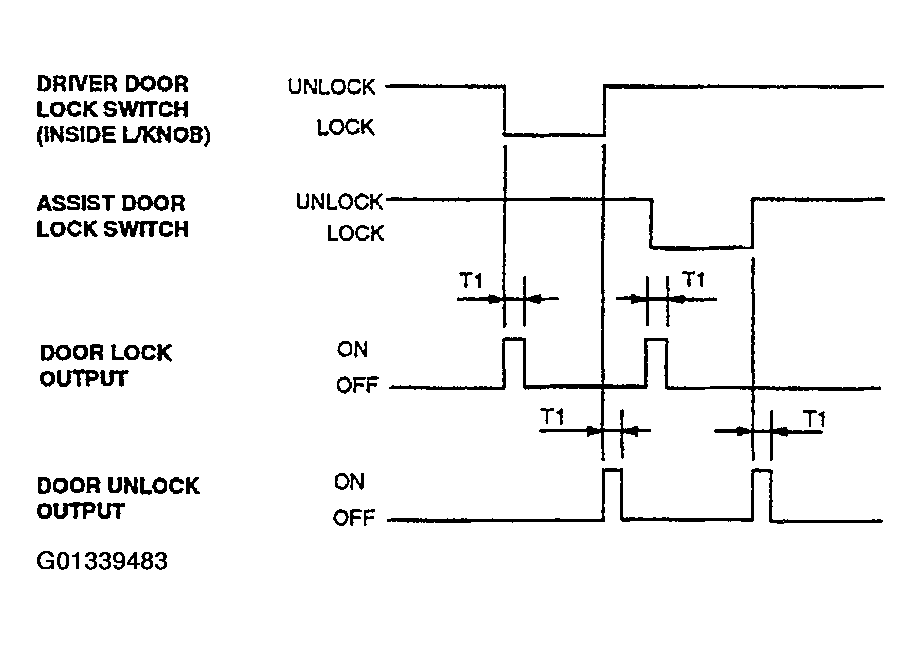

Fig 12: Central Door Lock/Unlock Timing Chart

Courtesy of HYUNDAI MOTOR CO.

Time specification

T1: 0.5+/-0.1sec.

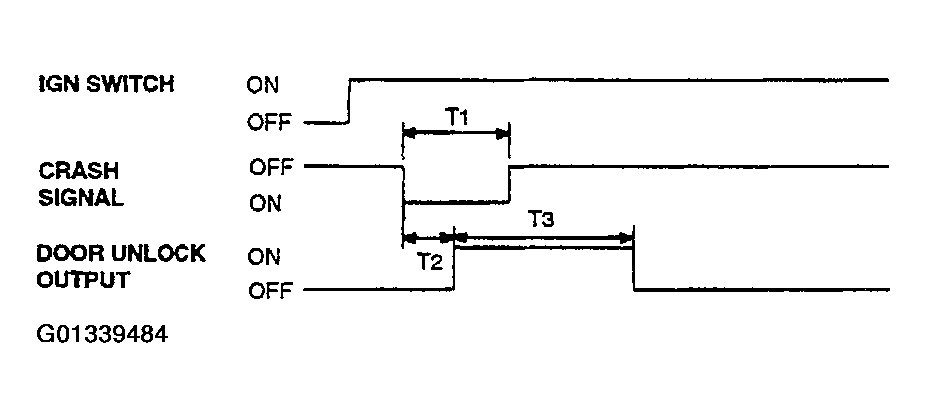

Fig 13: Crash Door Unlock Timing Chart

Courtesy of HYUNDAI MOTOR CO.

Time specification

T1: 200msec.

T2: 5-6msec.

T3: 5sec.
