Inspection Procedure 1

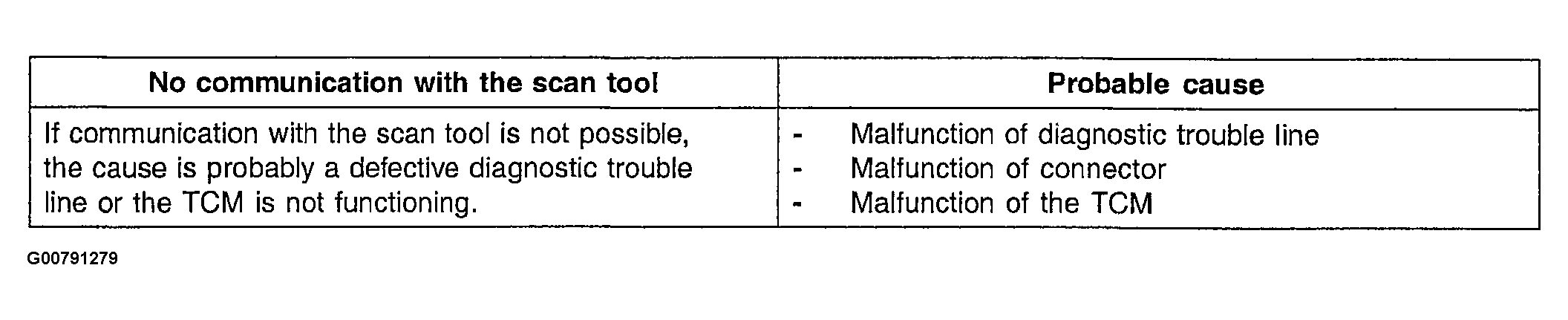

Fig 1: Inspection Procedure 1 Definitions & Probable Causes

G00791279

Courtesy of HYUNDAI MOTOR CO.

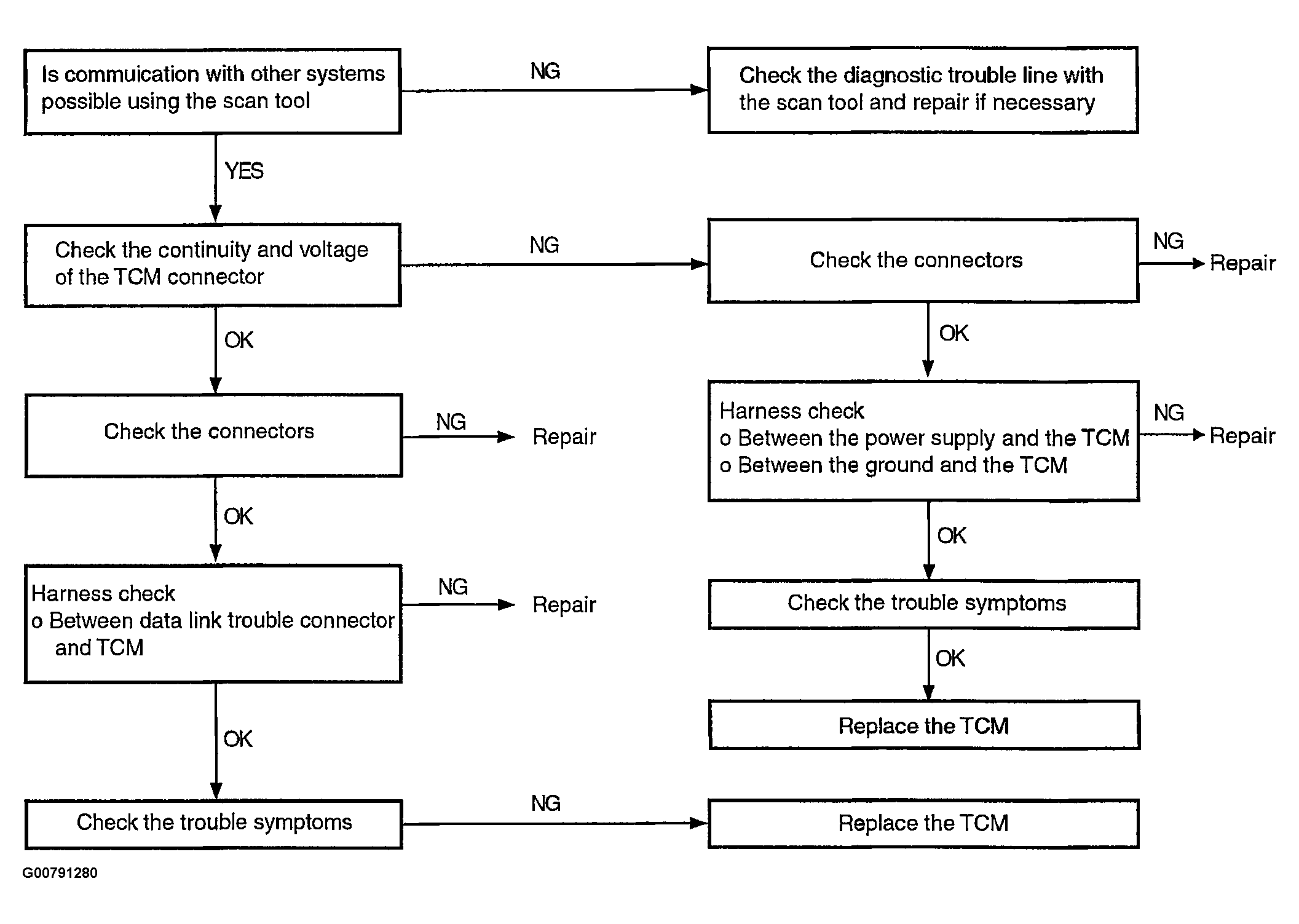

Fig 2: Inspection Procedure 1 Diagnostic Flow Chart

G00791280

Courtesy of HYUNDAI MOTOR CO.
