Inspection Procedure 4

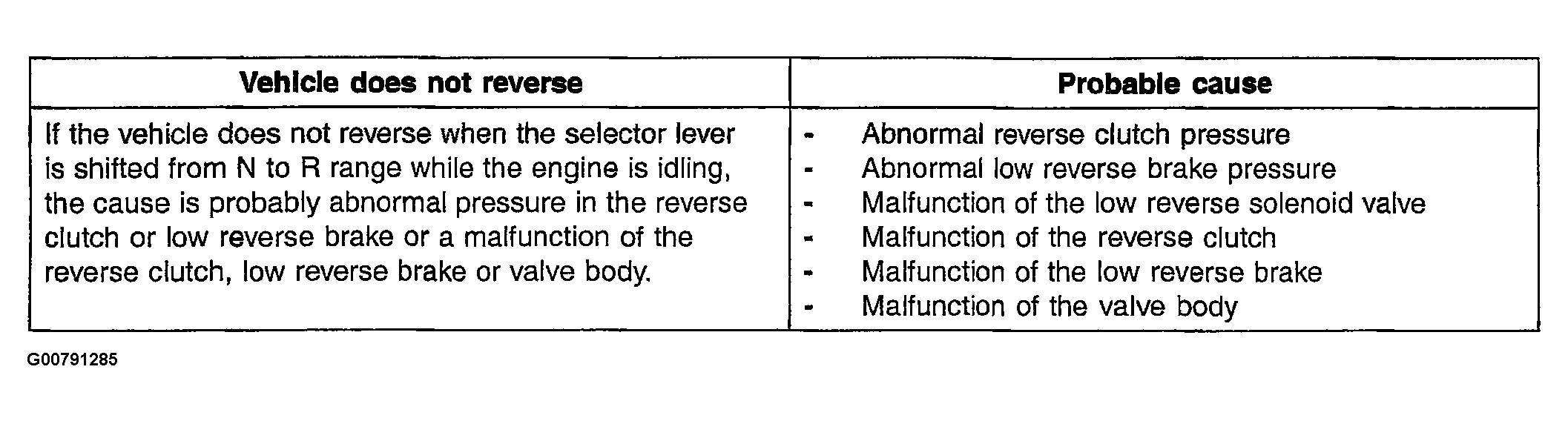

Fig 1: Inspection Procedure 4 Definitions & Probable Causes

G00791285

Courtesy of HYUNDAI MOTOR CO.

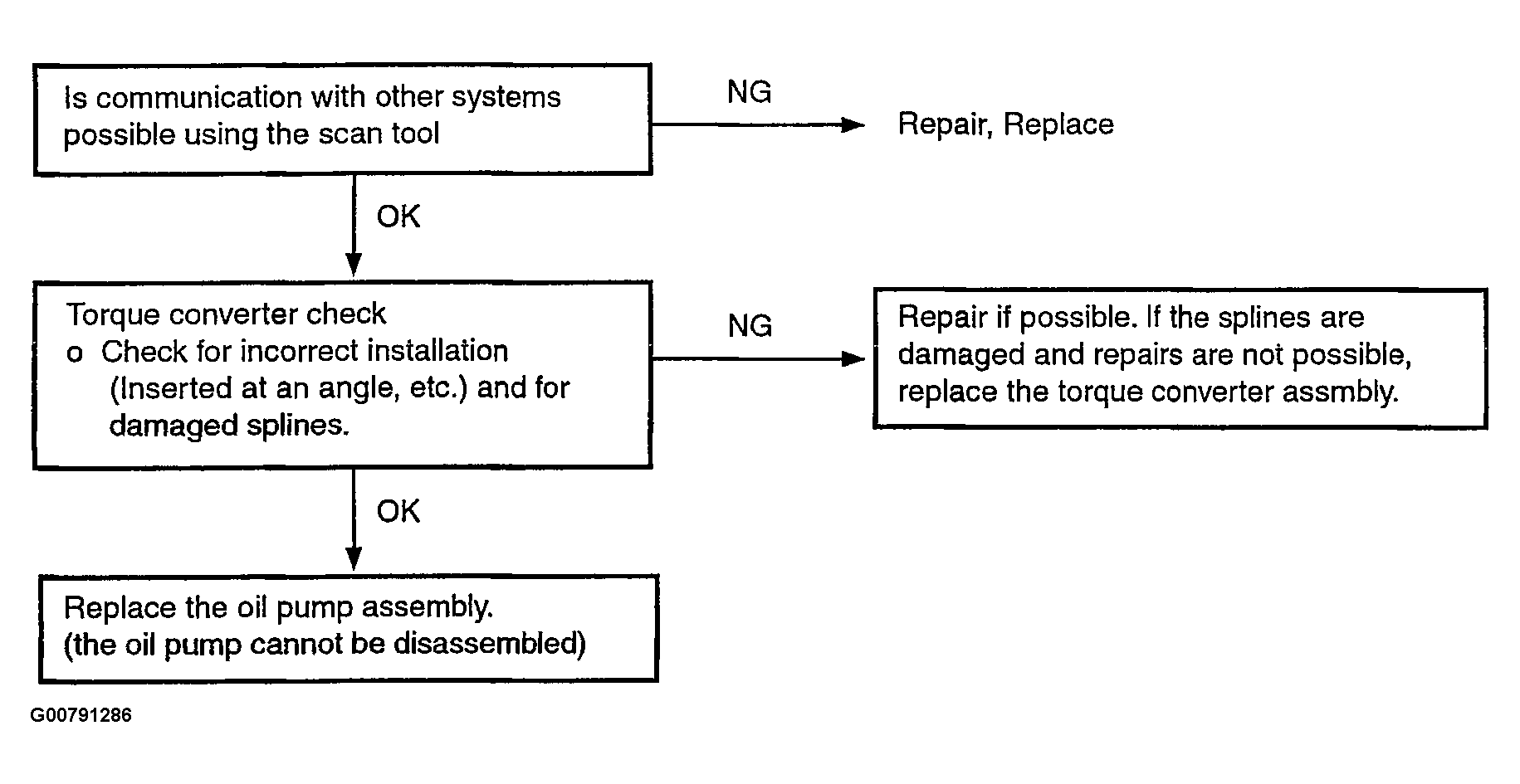

Fig 2: Inspection Procedure 4 Diagnostic Flow Chart

G00791286

Courtesy of HYUNDAI MOTOR CO.
