Automatic Transaxle System
>>
Inspection Process For Diagnostic Trouble Codes
>>
DTC P0703: Stop Light Switch System
DTC P0703: Stop Light Switch System

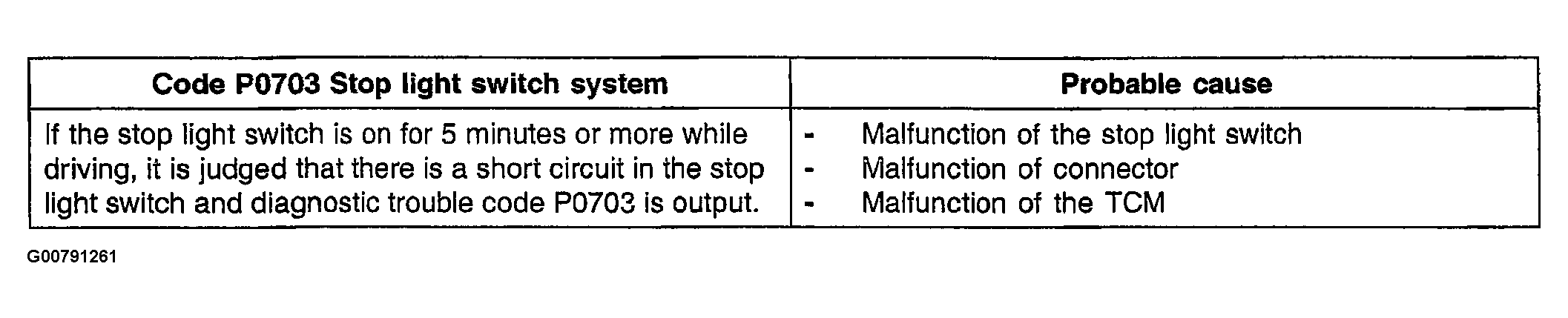

Fig 1: DTC P0703: Stop Light Switch System Definitions & Probable Causes
Courtesy of HYUNDAI MOTOR CO.

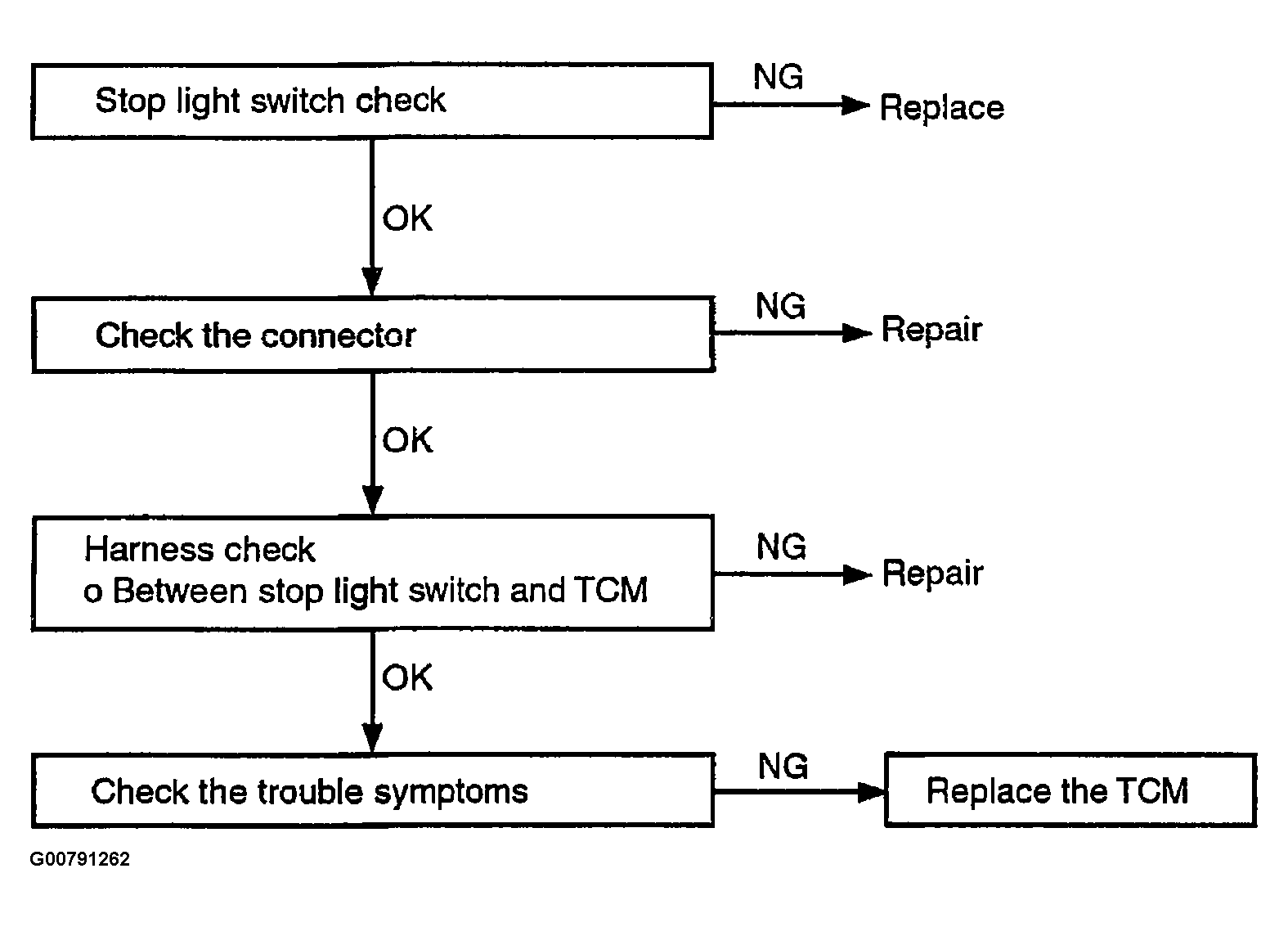

Fig 2: DTC P0703: Stop Light Switch System Diagnostic Flow Chart
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
