Automatic Transaxle Hydraulic Circuit: Second

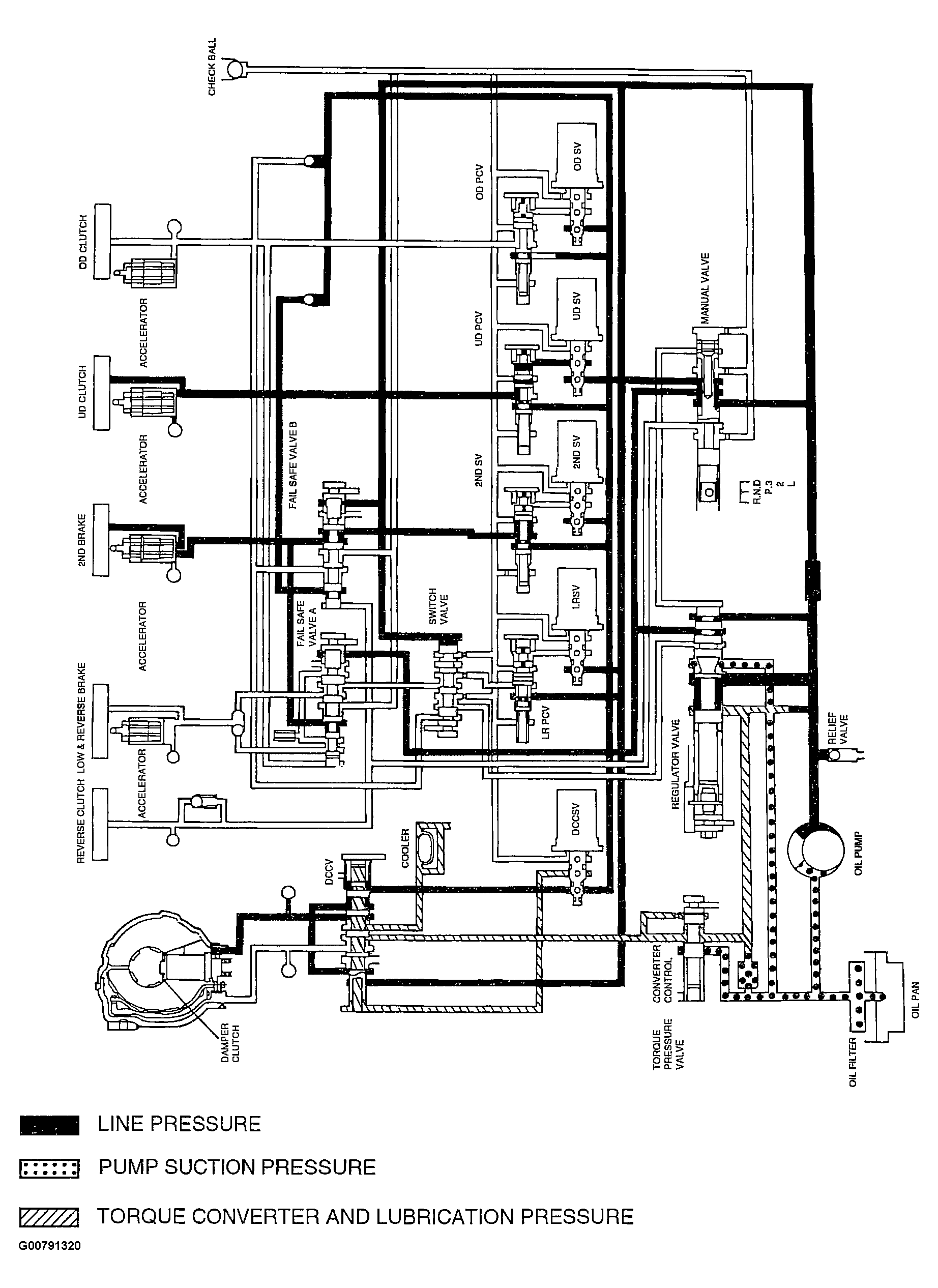

Fig 1: Second Gear Hydraulic Circuit

G00791320

Courtesy of HYUNDAI MOTOR CO.
