Main Moving System: Piston: Reassembly

  1. Install the spacer.

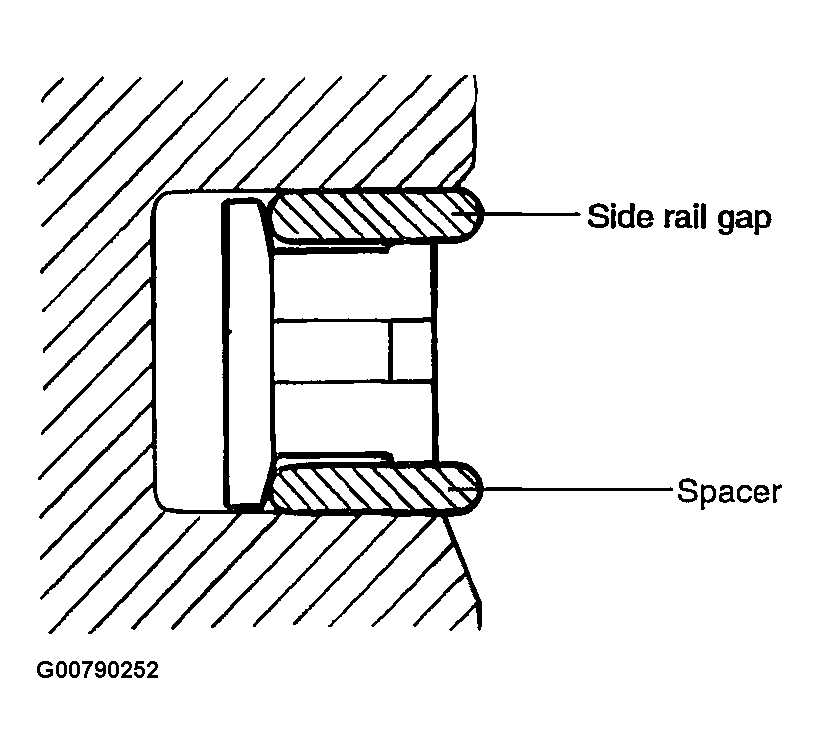

    Fig 1: Identifying Spacer Installation (1 Of 2)
    G00790252Courtesy of HYUNDAI MOTOR CO.
    Fig 2: Identifying Spacer Installation (2 Of 2)
    G00790253Courtesy of HYUNDAI MOTOR CO.
  2. Install the upper side rail. To install the side rail, first put one end of the side rail between the piston ring groove and spacer, hold it firmly, and press down with finger on the portion to be inserted into the groove (as illustrated).
    CAUTION: Do not use a piston ring expander when installing the side rail.
  3. Install the lower side rail by the same procedure described in Step 2.
    Fig 3: Installing Side Rail
    G00790254Courtesy of HYUNDAI MOTOR CO.
  4. Apply engine oil around the piston and piston grooves.
  5. Using a piston ring expander, install the No.2 piston ring.
  6. Install the No. 1 piston ring.
    Fig 4: Identifying Piston Rings
    G00790255Courtesy of HYUNDAI MOTOR CO.
  7. Position each piston ring end gap as far away from its neighboring gaps as possible. Make sure that the gaps are not positioned in the thrust and pin directions.
  8. Hold the piston rings firmly with a piston ring compressor as they are inserted into cylinder.
    Fig 5: Identifying Piston Installation
    G00790256Courtesy of HYUNDAI MOTOR CO.
  9. Install the upper main bearings in the cylinder block.
  10. Install the lower main bearings in the main bearing caps.
    CAUTION: Install the bearing so it matches the oil hole in the block.
    Fig 6: Installing Lower Main Bearing
    G00790257Courtesy of HYUNDAI MOTOR CO.
  11. Install the thrust washers in the No. 3 main bearing cap with the oil grooves facing outward.
    Fig 7: Installing Crankshaft Thrust Washers
    G00790258Courtesy of HYUNDAI MOTOR CO.
  12. Make sure that the front mark of the piston and the front mark (identification mark) of the connecting rod are directed toward the front of the engine.
  13. When the connecting rod cap is installed, make sure that any cylinder numbers placed on the rod and cap at disassembly match.
  14. When a new connecting rod is installed, make sure that the notches for holding the bearing in place are on the same side.
  15. When assembling, bolts should be fastened using the plastic angle technique as follows.
    1. Apply oil to the threads and matching areas.
    2. Tighten the connecting rod bolt.

    Tightening torque

    Connecting rod bolt :

    18 Nm (180 kg.cm, 13 lb.ft) + (90°)

    CAUTION: After removing the connecting rod bolt, do not use it again.
    When using a new bolt, do not tighten the bolt more than 3 times.

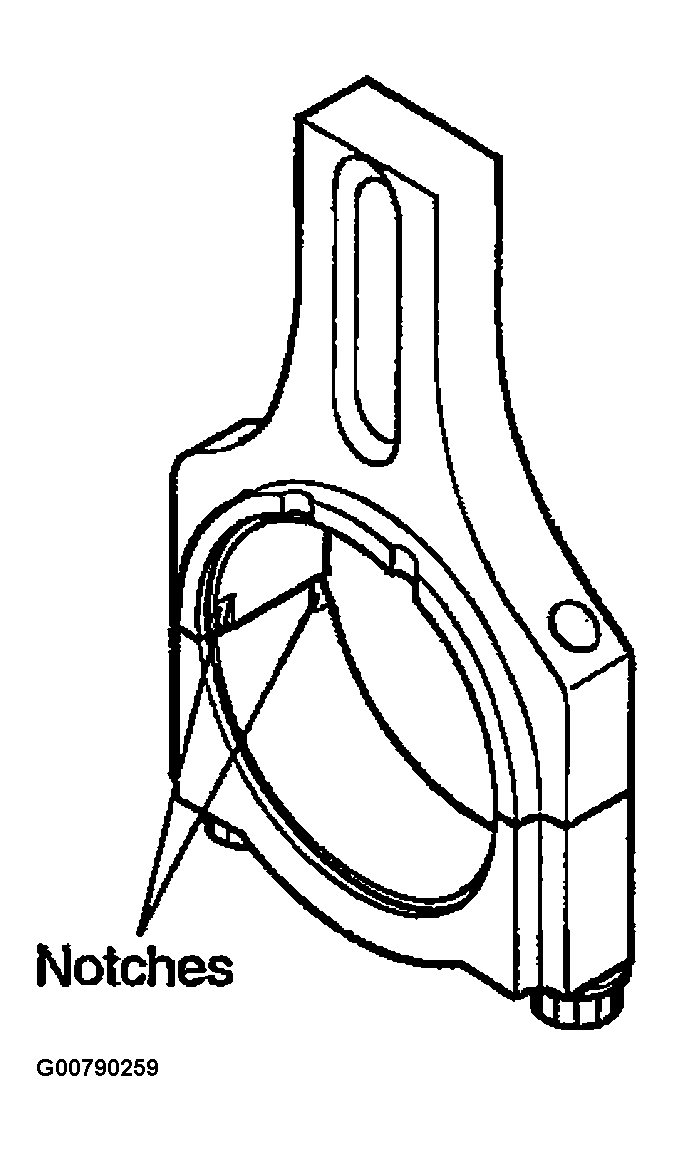

    Fig 8: Identifying Connecting Rod Bearing Notches
    G00790259Courtesy of HYUNDAI MOTOR CO.
  16. Check the connecting rod side clearance.

    Connecting rod side clearance

    Standard : 0.10 ~ 0.25 mm (0.0039 ~ 0.0098 in.)

    Limit : 0.4 mm (0.0157 in.)

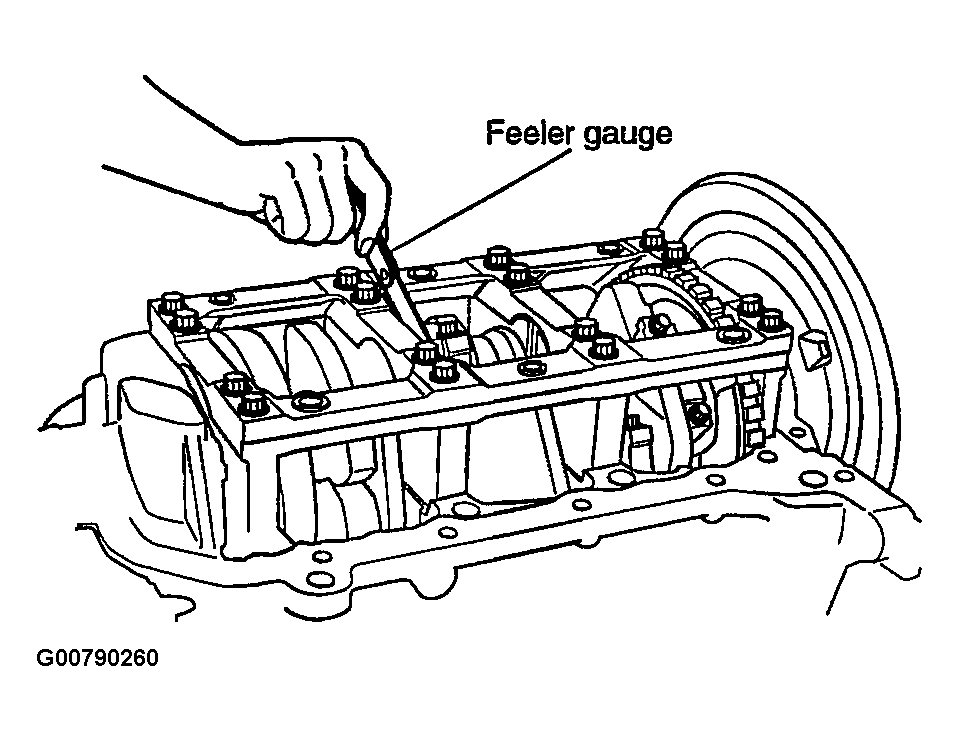

    Fig 9: Checking Connecting Rod Side Clearance
    G00790260Courtesy of HYUNDAI MOTOR CO.
