Home >> Hyundai >> 2002 >> Santa Fe GLS, FWD >> Repair and Diagnosis >> Engine Mechanical >> Lubrication System >> 2.7L V6 Engine >> Main Moving System >> Crankshaft >> Components

Main Moving System: Crankshaft: Components

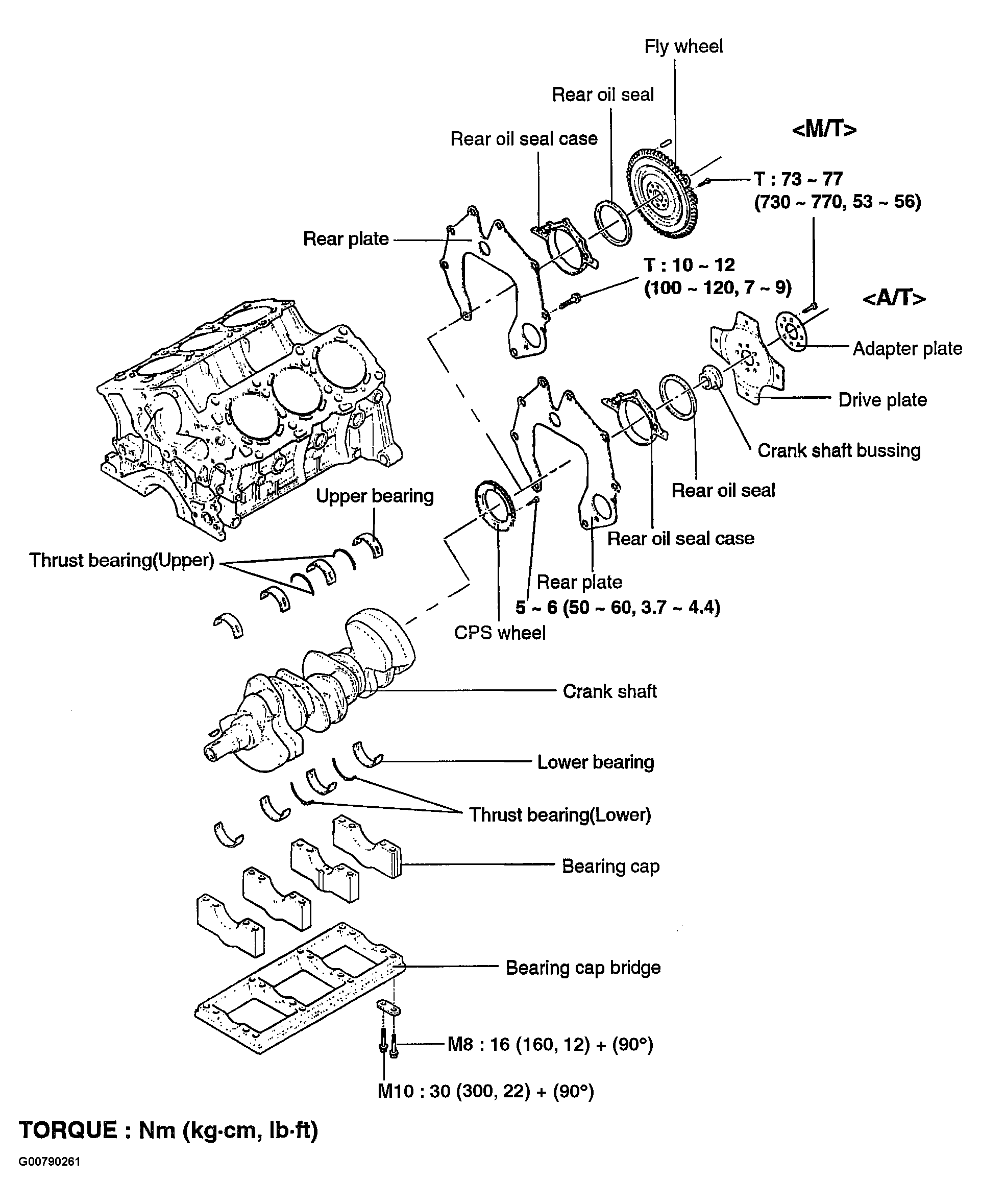

Fig 1: Crankshaft Components

G00790261

Courtesy of HYUNDAI MOTOR CO.
