Main Moving System: Camshaft: Components

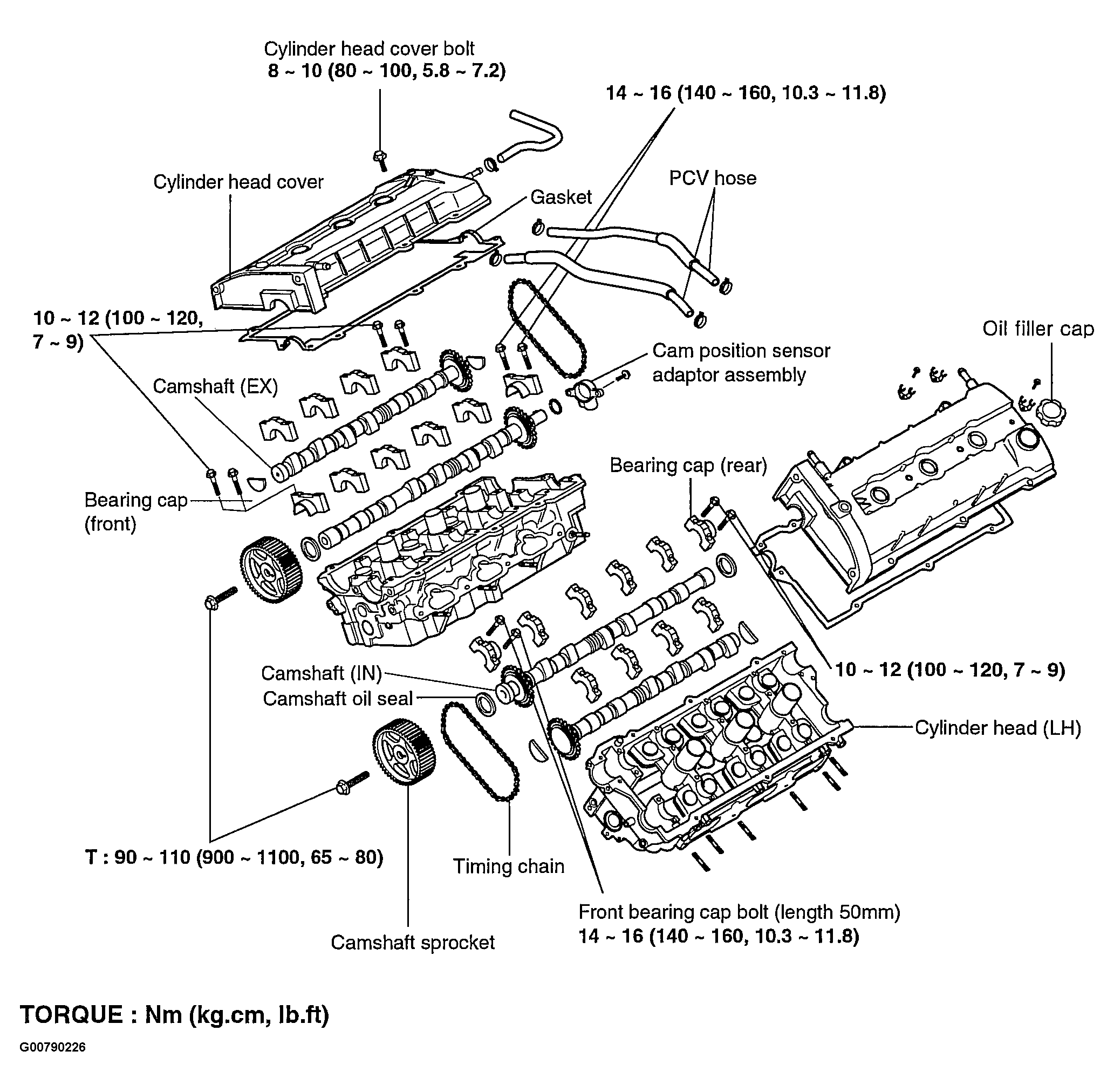

Fig 1: Camshaft Components

G00790226

Courtesy of HYUNDAI MOTOR CO.
