Removal & Installation: Generator

Removal and installation procedures are not available from manufacturer. As an aid to removal and installation, refer to illustrations. On 2.7L, the lower alternator mounting bolt on some models may have to be removed from the backside of the alternator. To remove the bolt it may be necessary to remove the right axle shaft.

Fig 1: Removing & Installing Generator (2.4L)

Courtesy of HYUNDAI MOTOR CO.

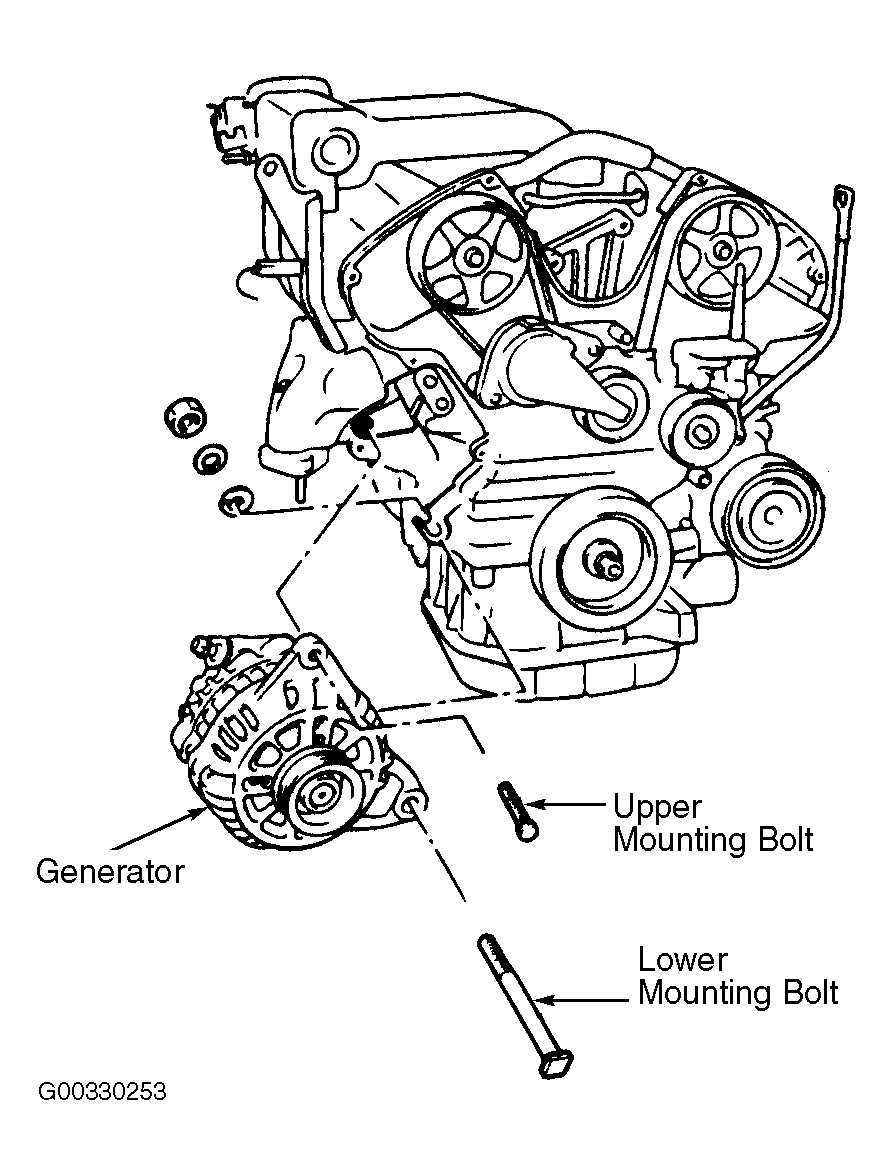

Fig 2: Removing & Installing Generator (2.7L)

Courtesy of HYUNDAI MOTOR CO.
