Home >> Hyundai >> 2002 >> Santa Fe GLS, AWD >> Repair and Diagnosis >> Engine Mechanical >> Lubrication System >> 2.7L V6 Engine >> General >> Troubleshooting

2.7L V6 Engine: General: Troubleshooting

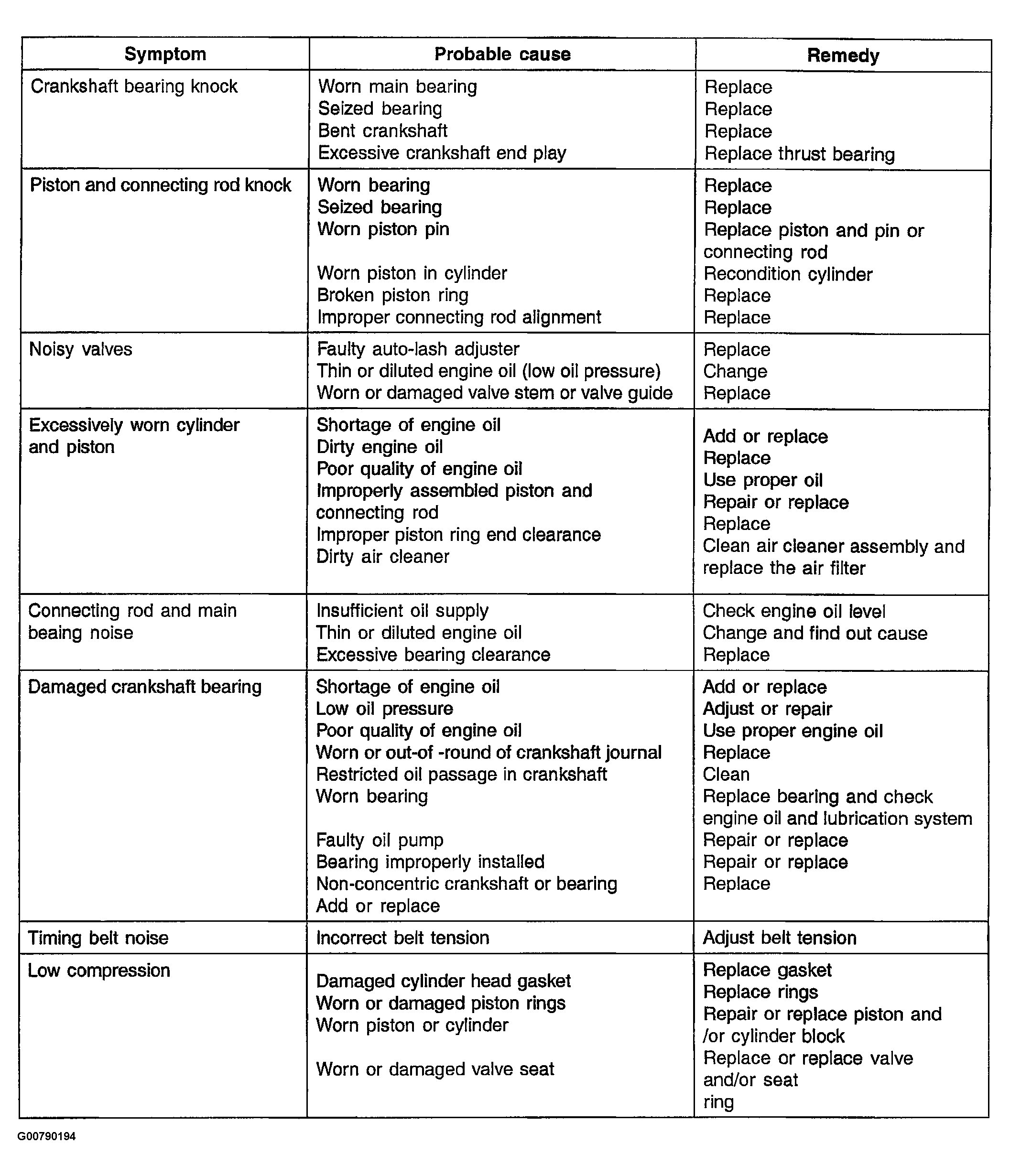

Fig 1: Troubleshooting Table (1 Of 2)

G00790194

Courtesy of HYUNDAI MOTOR CO.

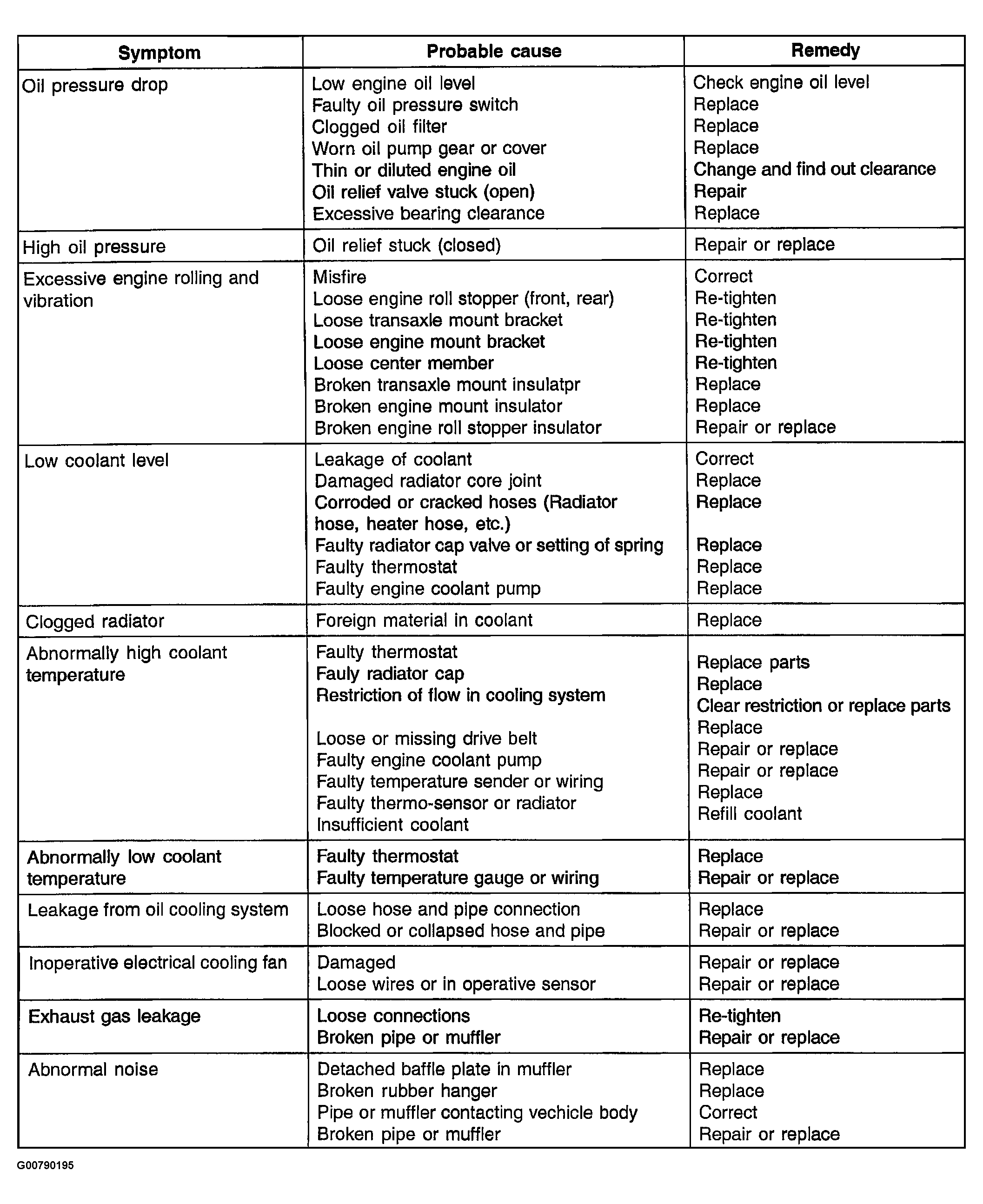

Fig 2: Troubleshooting Table (2 Of 2)

G00790195

Courtesy of HYUNDAI MOTOR CO.
