Intake Manifold: Installation

WARNING: This page is about a different car, the 2004 Hyundai Santa Fe and 2003 Hyundai Santa Fe. However, it is still accessible from the selected car via links, so may be relevant.

Install the intake manifold and delivery pipe reversing the order of the removal procedure.

Tightening torque

Intake manifold :

12 - 15 Nm (120 - 150 kg.cm, 9 - 11 lb.ft)

Surge tank stay :

15 - 20 Nm (150 - 200 kg.cm, 11 - 14 lb.ft)

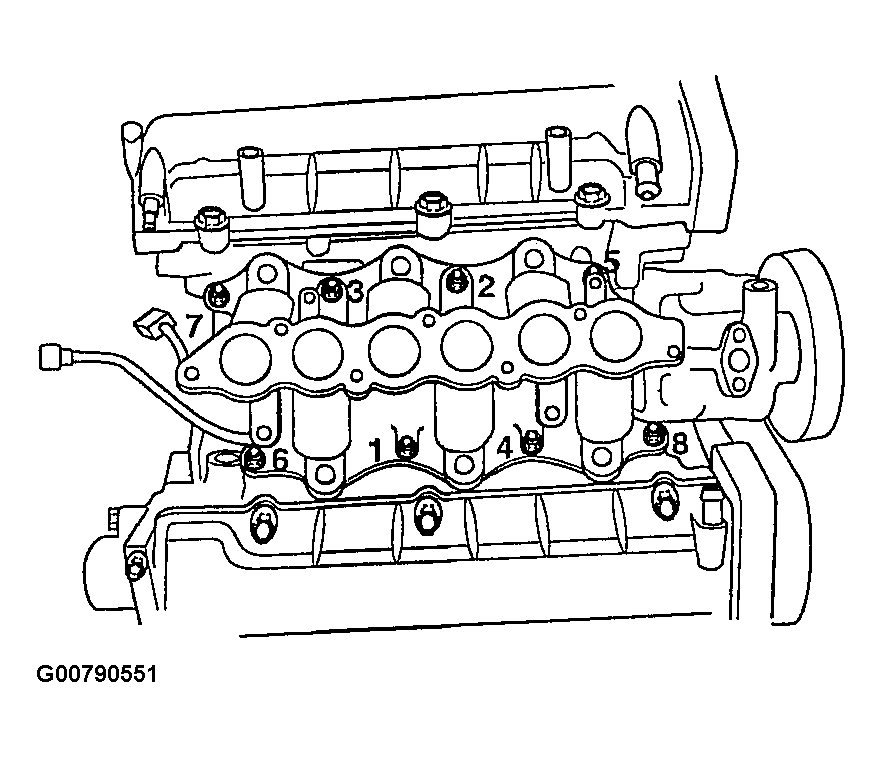

Fig 1: Intake Manifold Bolt Tightening Sequence

Courtesy of HYUNDAI MOTOR CO.

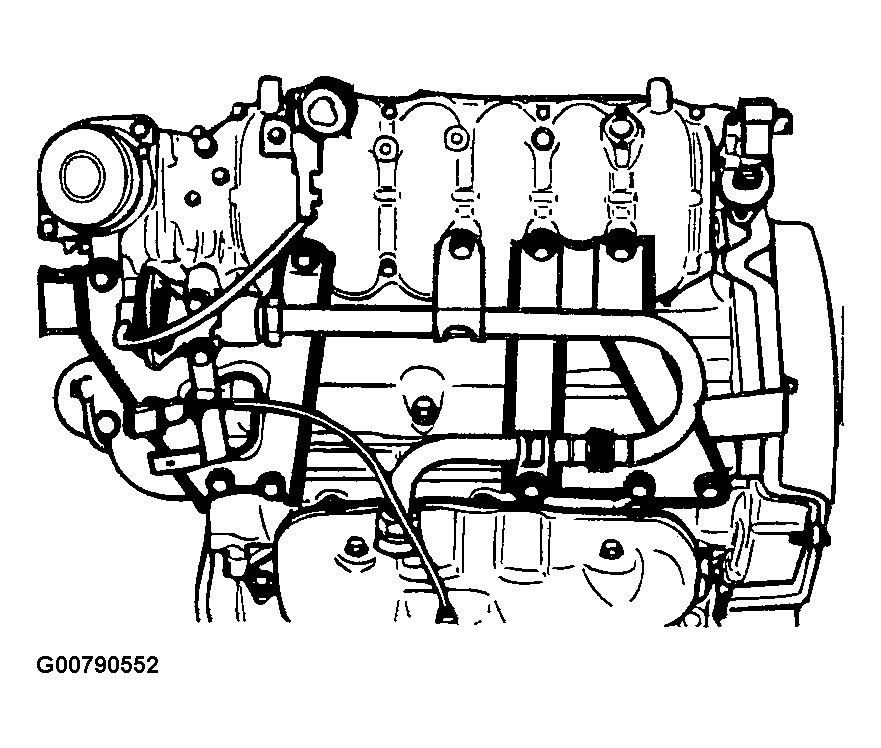

Fig 2: View Of Surge Tank

Courtesy of HYUNDAI MOTOR CO.
