Section 13 (3.5L V6 Engine): General: Troubleshooting

WARNING: This page is about a different car, the 2004 Hyundai Santa Fe and 2003 Hyundai Santa Fe. However, it is still accessible from the selected car via links, so may be relevant.

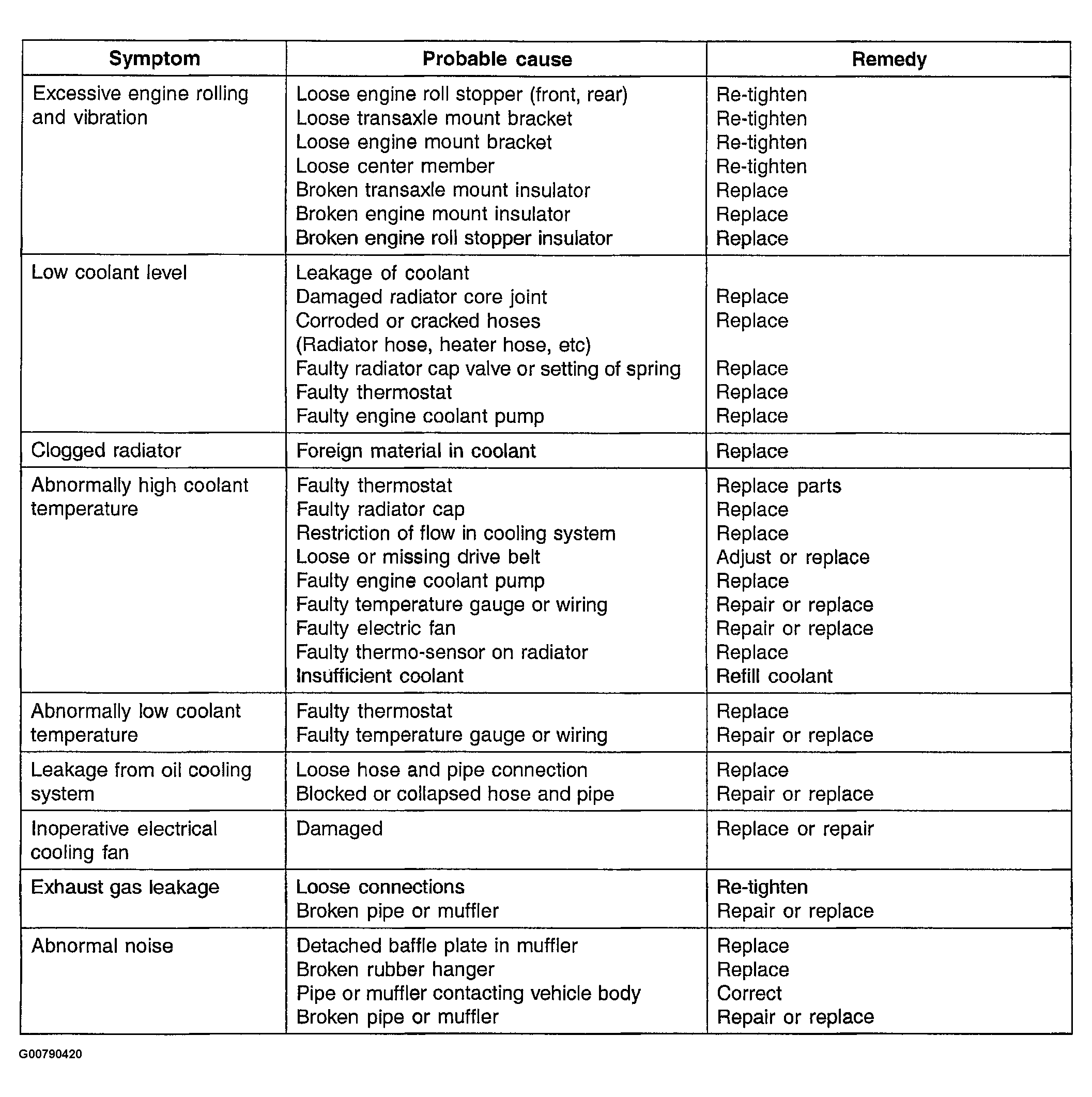

Fig 1: Trouble Shooting Table (1 Of 2)

Courtesy of HYUNDAI MOTOR CO.

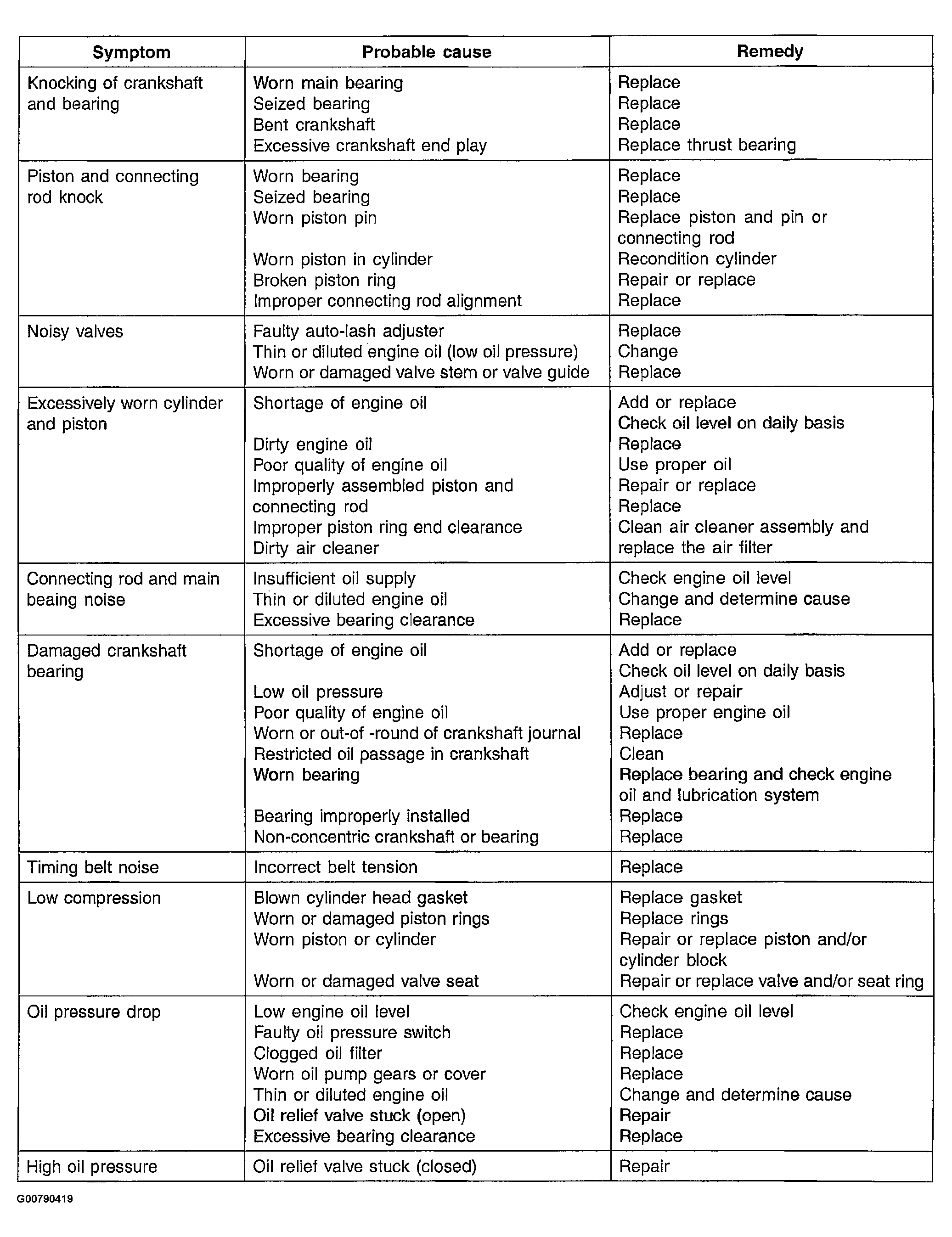

Fig 2: Trouble Shooting Table (2 Of 2)

Courtesy of HYUNDAI MOTOR CO.
