Selection Of Engine Oil

WARNING: This page is about a different car, the 2004 Hyundai Santa Fe and 2003 Hyundai Santa Fe. However, it is still accessible from the selected car via links, so may be relevant.

Recommended API classification: SH OR ABOVE

Recommended SAE viscosity grades:

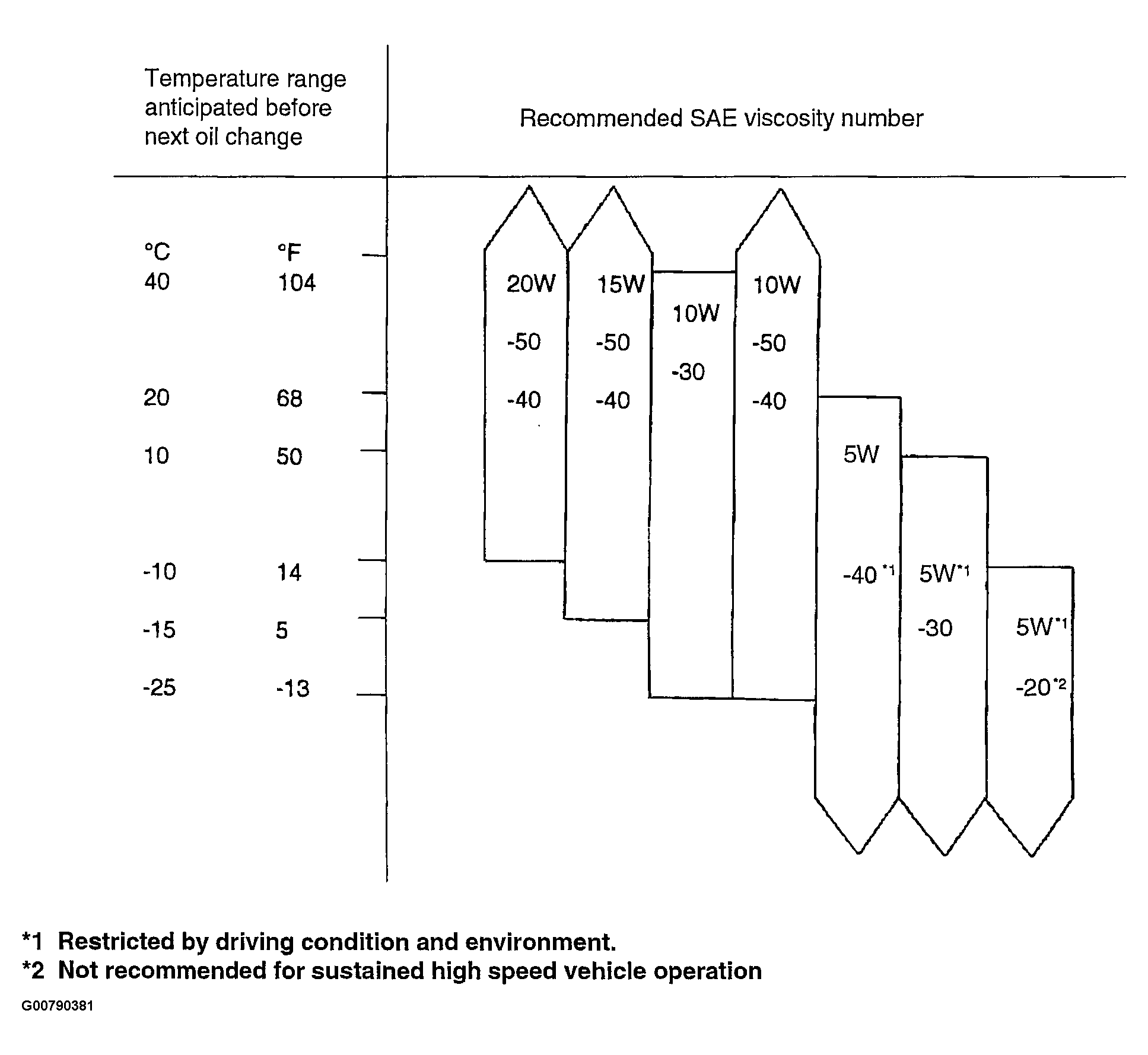

Fig 1: Recommended SAE Viscosity Grades
G00790381Courtesy of HYUNDAI MOTOR CO.
NOTE: For best performance and maximum protection of all types of operation, select only those lubricants which:
  1. Satisfy the requirements of the API classification.
  2. Have the proper SAE grade number for expected ambient temperature range.

Lubricants which do not have both an SAE grade number and an API service classification on the container should not be used.
