Front Roll Stopper

WARNING: This page is about a different car, the 2004 Hyundai Santa Fe and 2003 Hyundai Santa Fe. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the transaxle mounting bolt.
  2. Remove the transaxle bracket.

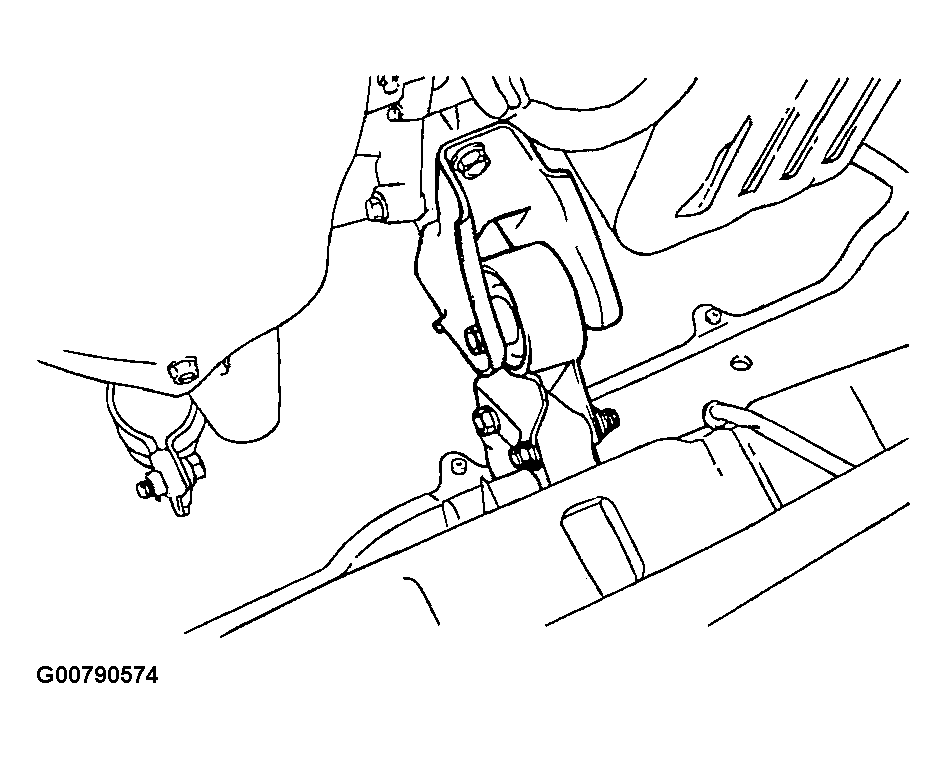

    Fig 1: Identifying Transaxle Bracket
    G00790574Courtesy of HYUNDAI MOTOR CO.
