Inspection Procedure 10

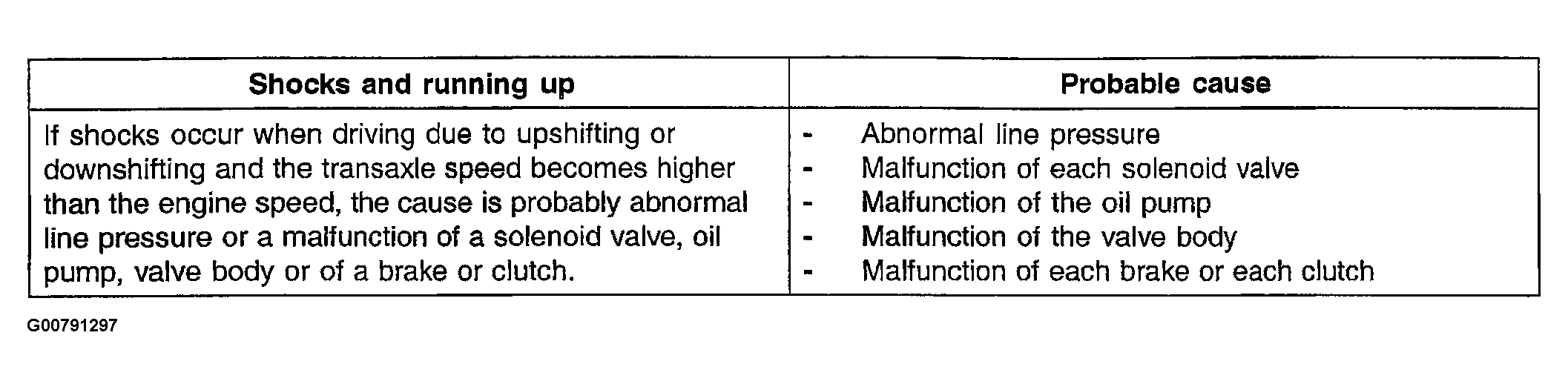

Fig 1: Inspection Procedure 10 Definitions & Probable Causes

G00791297

Courtesy of HYUNDAI MOTOR CO.

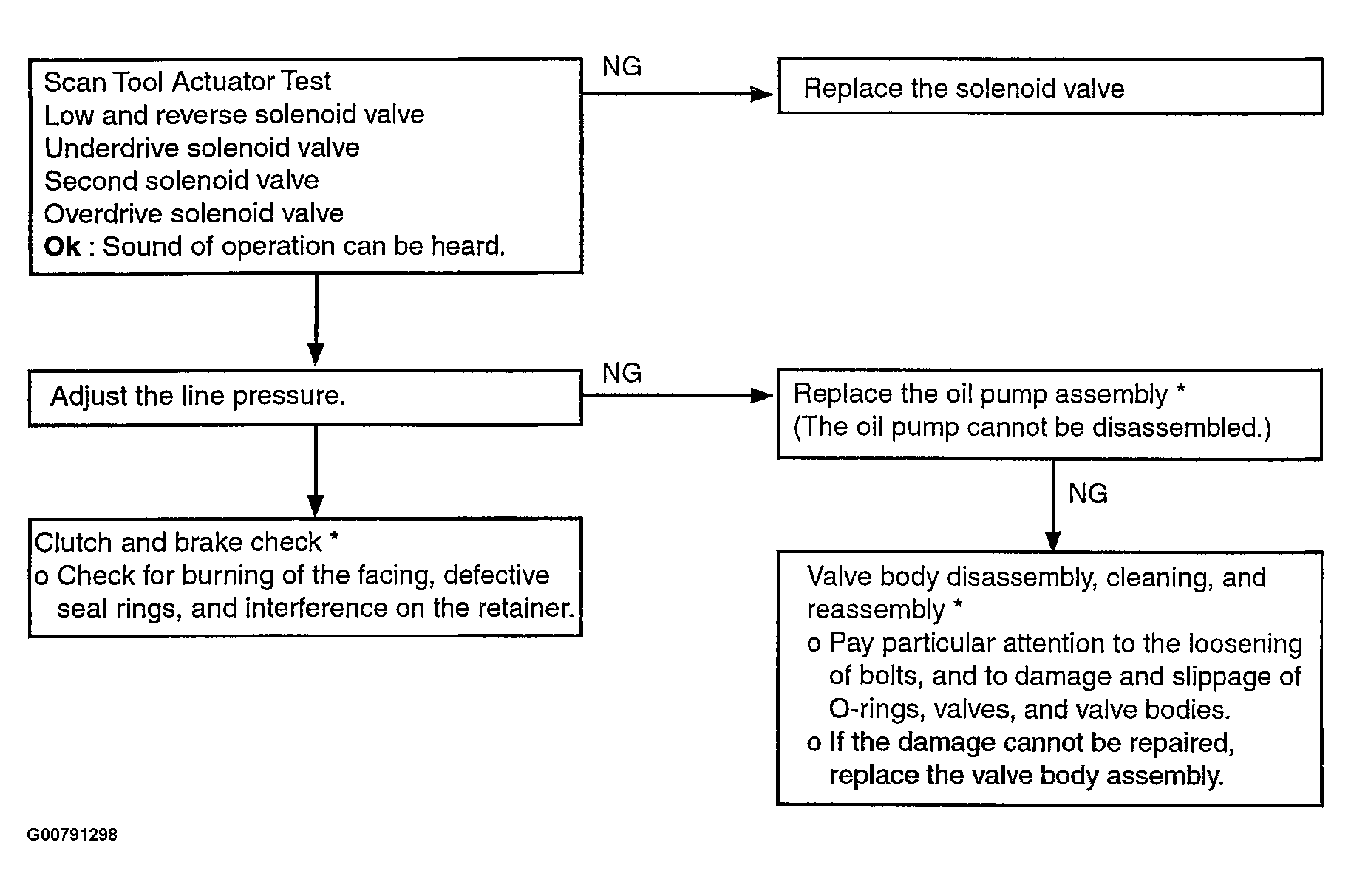

Fig 2: Inspection Procedure 10 Diagnostic Flow Chart

G00791298

Courtesy of HYUNDAI MOTOR CO.
