Automatic Transaxle Hydraulic Circuit: Third

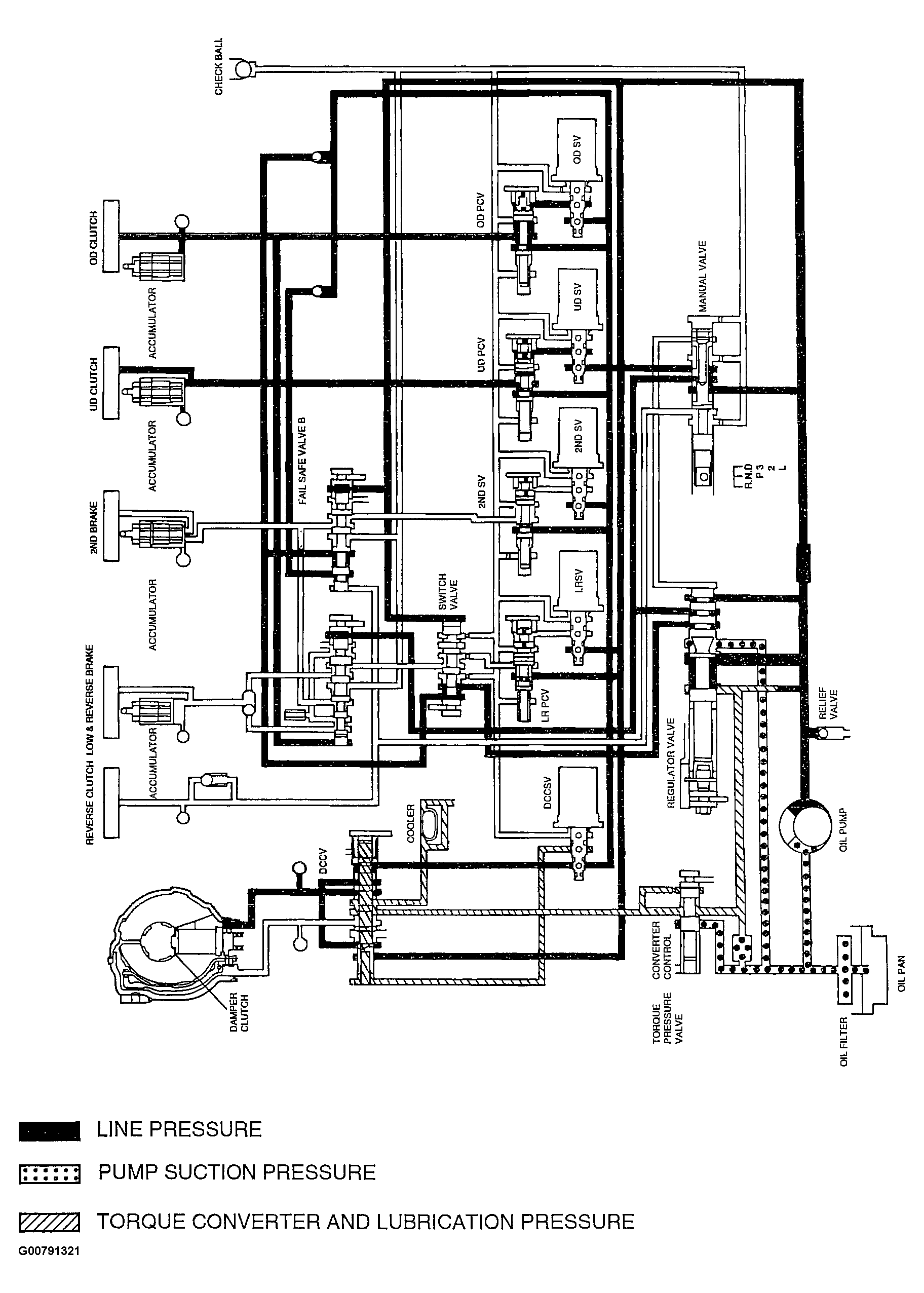

Fig 1: Third Gear Hydraulic Circuit

G00791321

Courtesy of HYUNDAI MOTOR CO.
