Special Tools
Special Tools

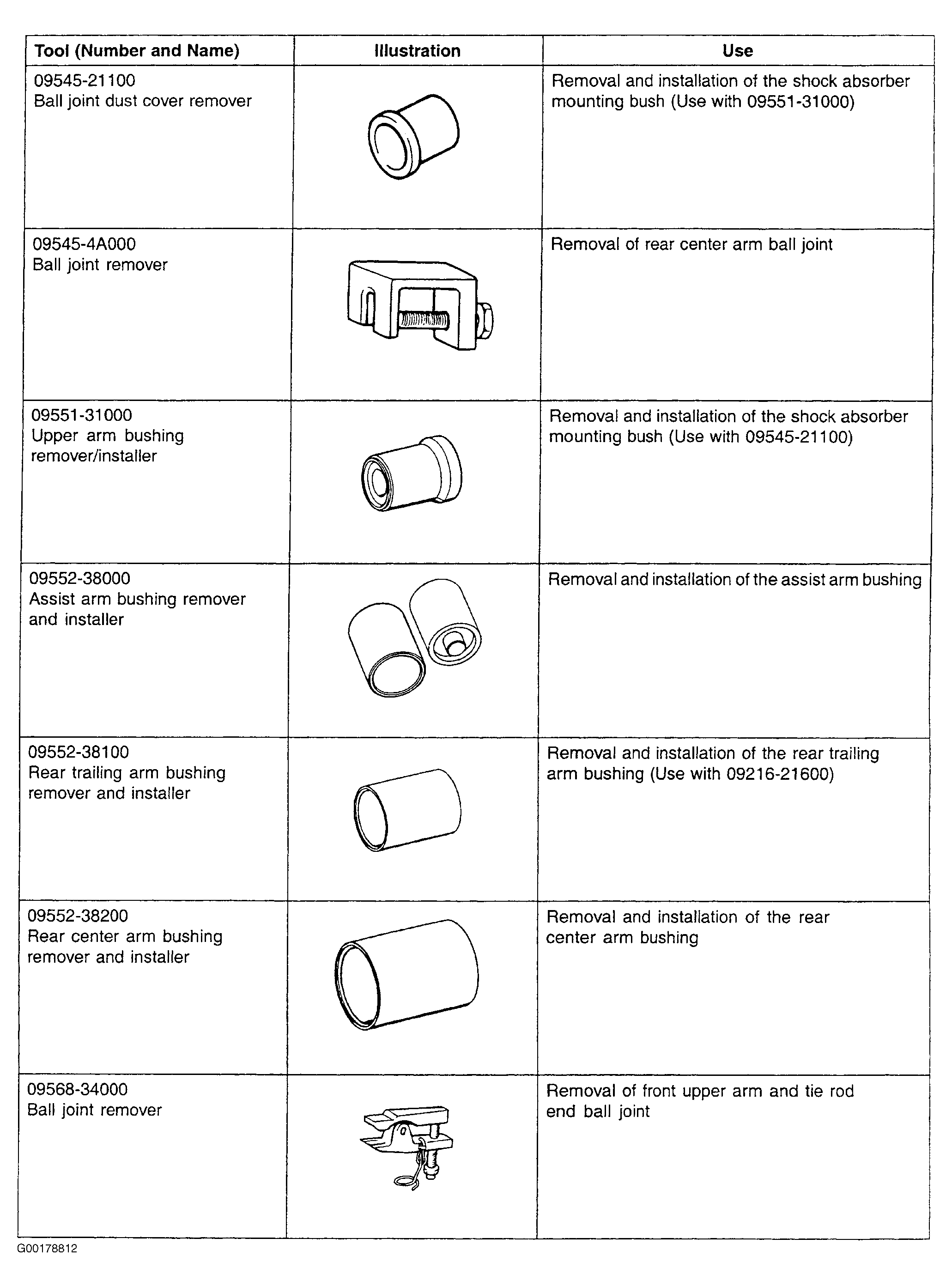

Fig 1: Identifying Special Tools (1 Of 7)
Courtesy of HYUNDAI MOTOR CO.

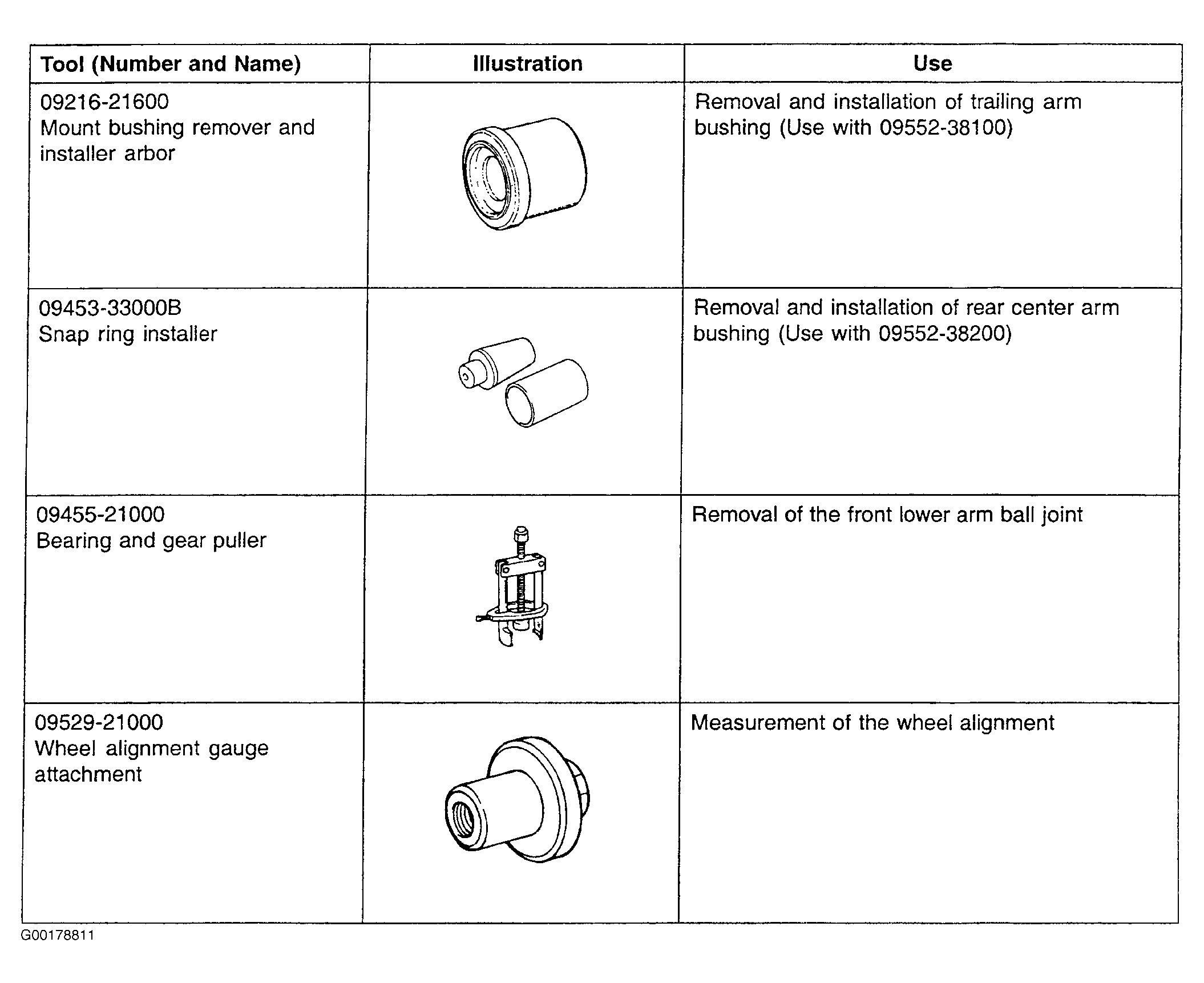

Fig 2: Identifying Special Tools (2 Of 7)
Courtesy of HYUNDAI MOTOR CO.

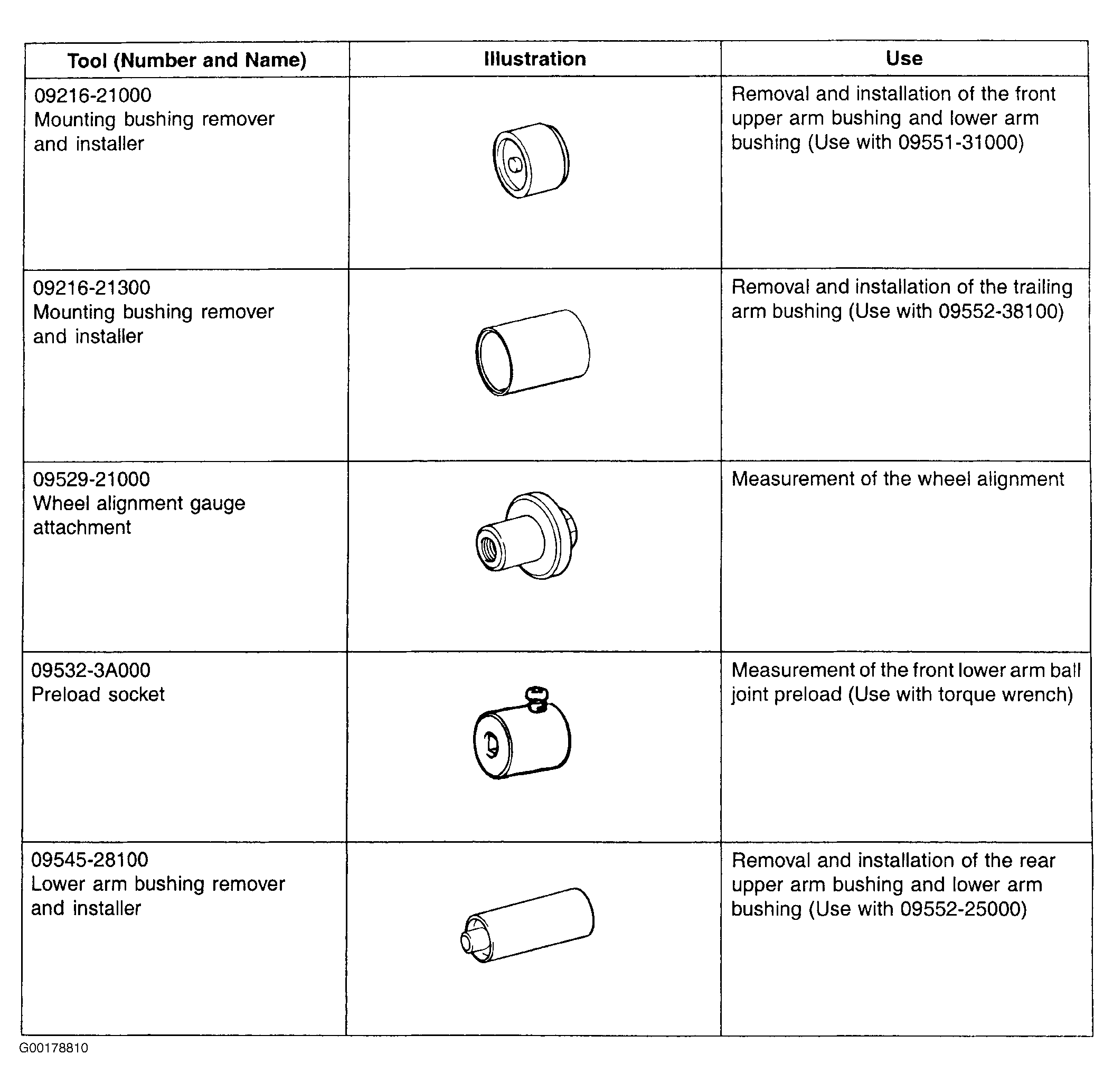

Fig 3: Identifying Special Tools (3 Of 7)
Courtesy of HYUNDAI MOTOR CO.
Fig 4: Identifying Special Tools (4 Of 7)
Courtesy of HYUNDAI MOTOR CO.
Fig 5: Identifying Special Tools (5 Of 7)
Courtesy of HYUNDAI MOTOR CO.
Fig 6: Identifying Special Tools (6 Of 7)
Courtesy of HYUNDAI MOTOR CO.
Fig 7: Identifying Special Tools (7 Of 7)
Courtesy of HYUNDAI MOTOR CO.
