Security System Keyless Adapter Cable (02-90-001)

Publication date: 2002-01-01
Reference number: 02-90-001

SECURITY SYSTEM KEYLESS ADAPTER CABLE

TECHNICAL SERVICE BULLETIN

Reference Number(s): 02-90-001, Date of Issue: January, 2002

HYUNDAI:	2001-2002 Elantra; 2001-2002 Santa Fe; 2002 Sonata
GROUP:	Body Electrical

DESCRIPTION

SECURITY SYSTEM KEYLESS ADAPTER CABLE

The security system keyless adapter cable (SPX/Kent-Moore P/N 09900-21300) is a special service tool (SST) that is used for adding keyless entry remote transmitters to the factory security systems. The keyless adapter is used in conjunction with the Hi-Scan Pro (with Hi-Scan SOL Pro Software Version 10-03-01 or newer) and Data Link Connector (DLC) Cable.

BULLETIN CONTENT

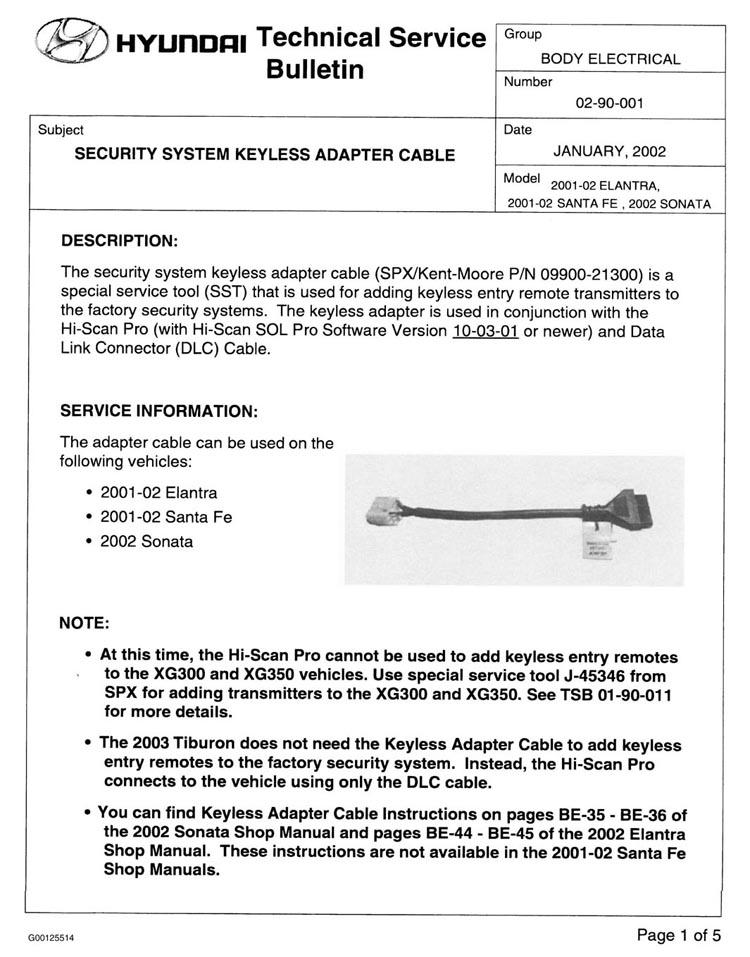

Fig 1: Page 1 of Bulletin

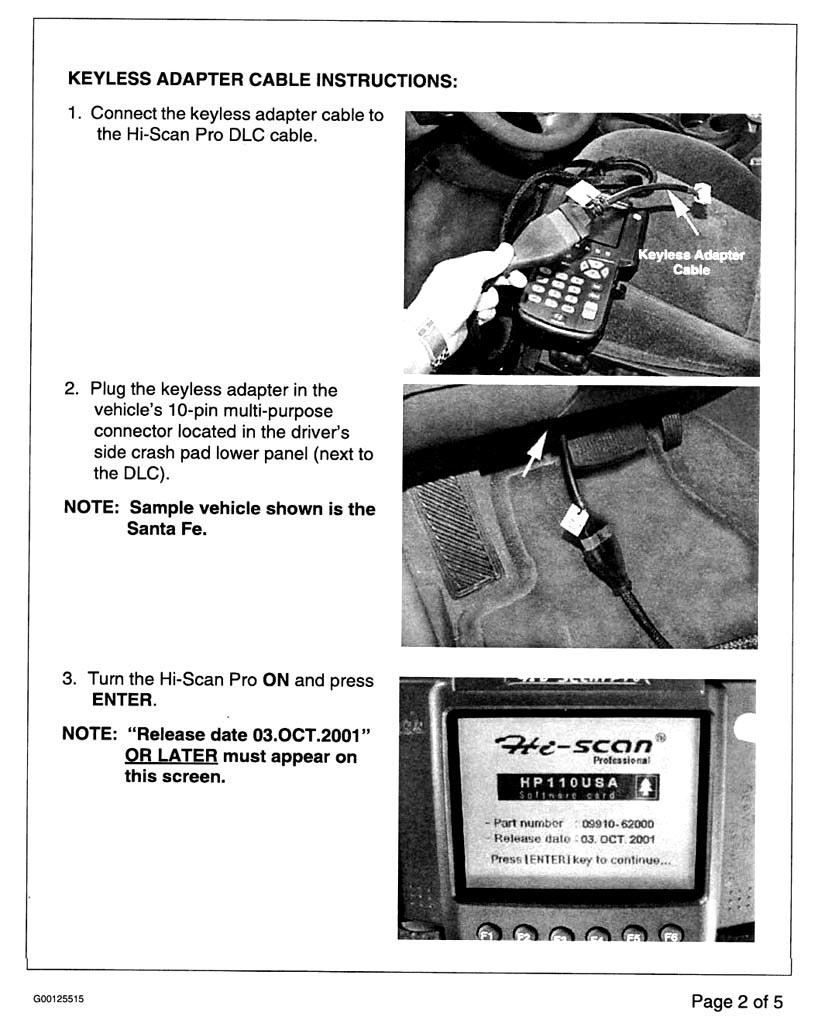

Fig 2: Page 2 of Bulletin

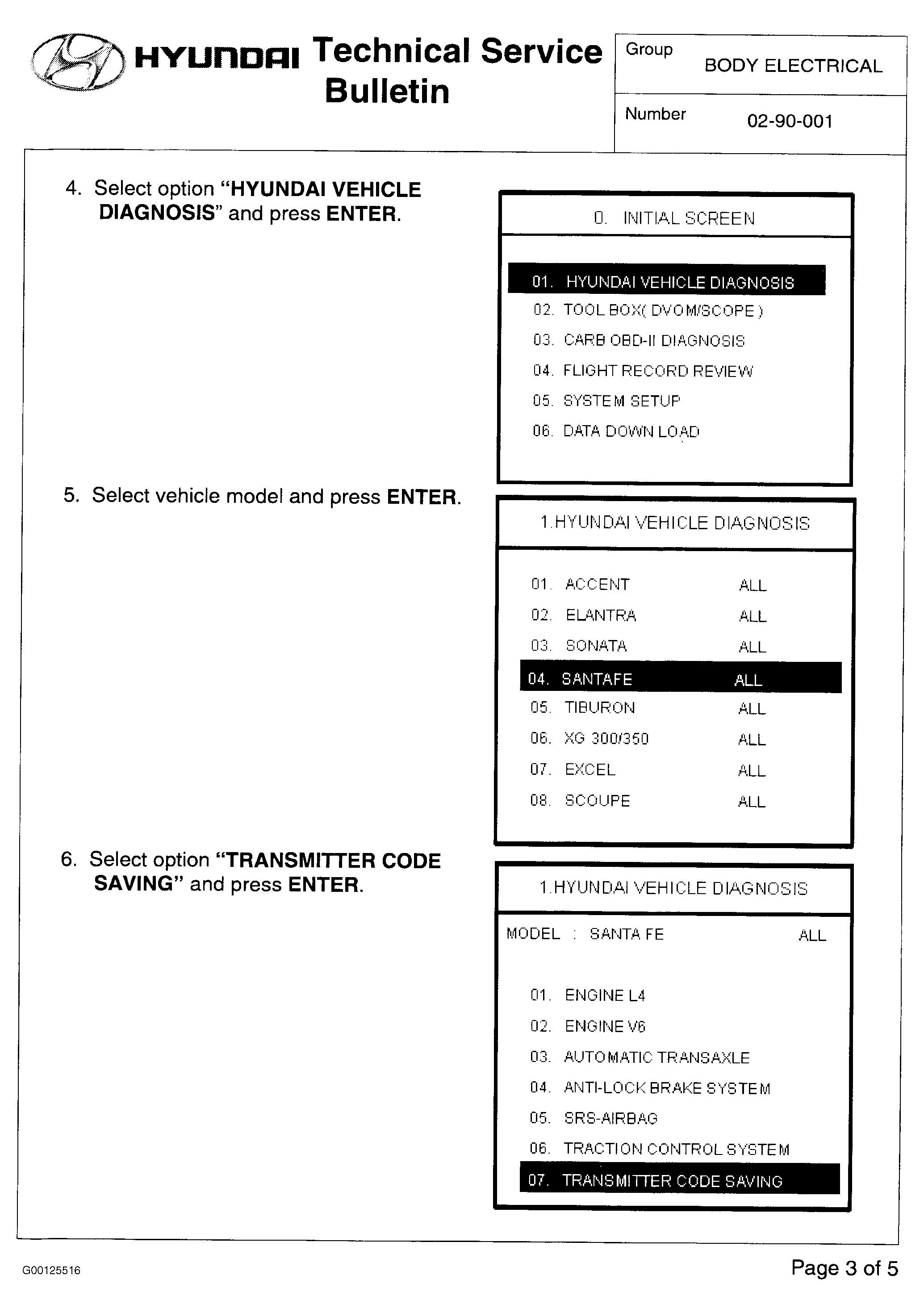

Fig 3: Page 3 of Bulletin

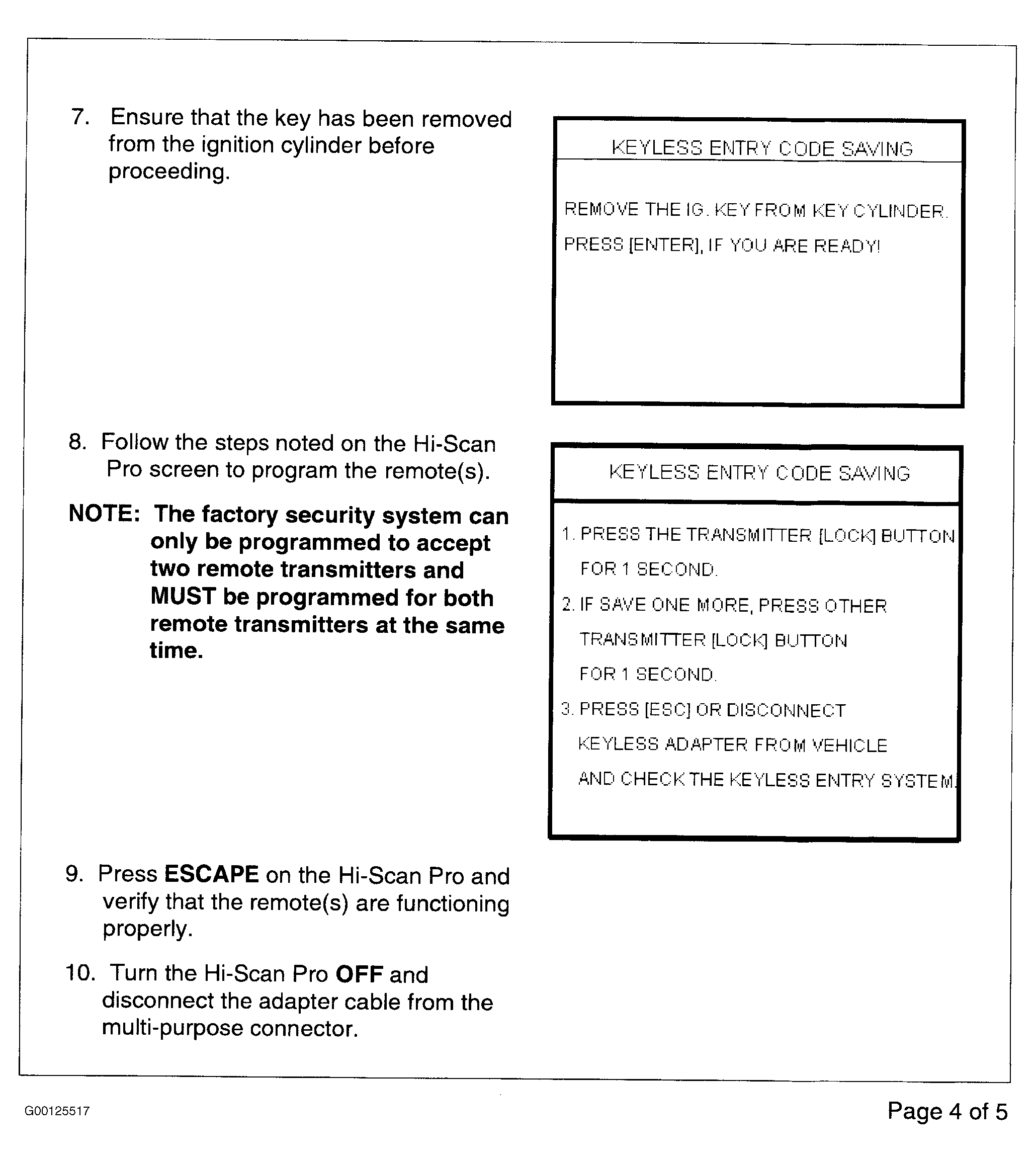

Fig 4: Page 4 of Bulletin

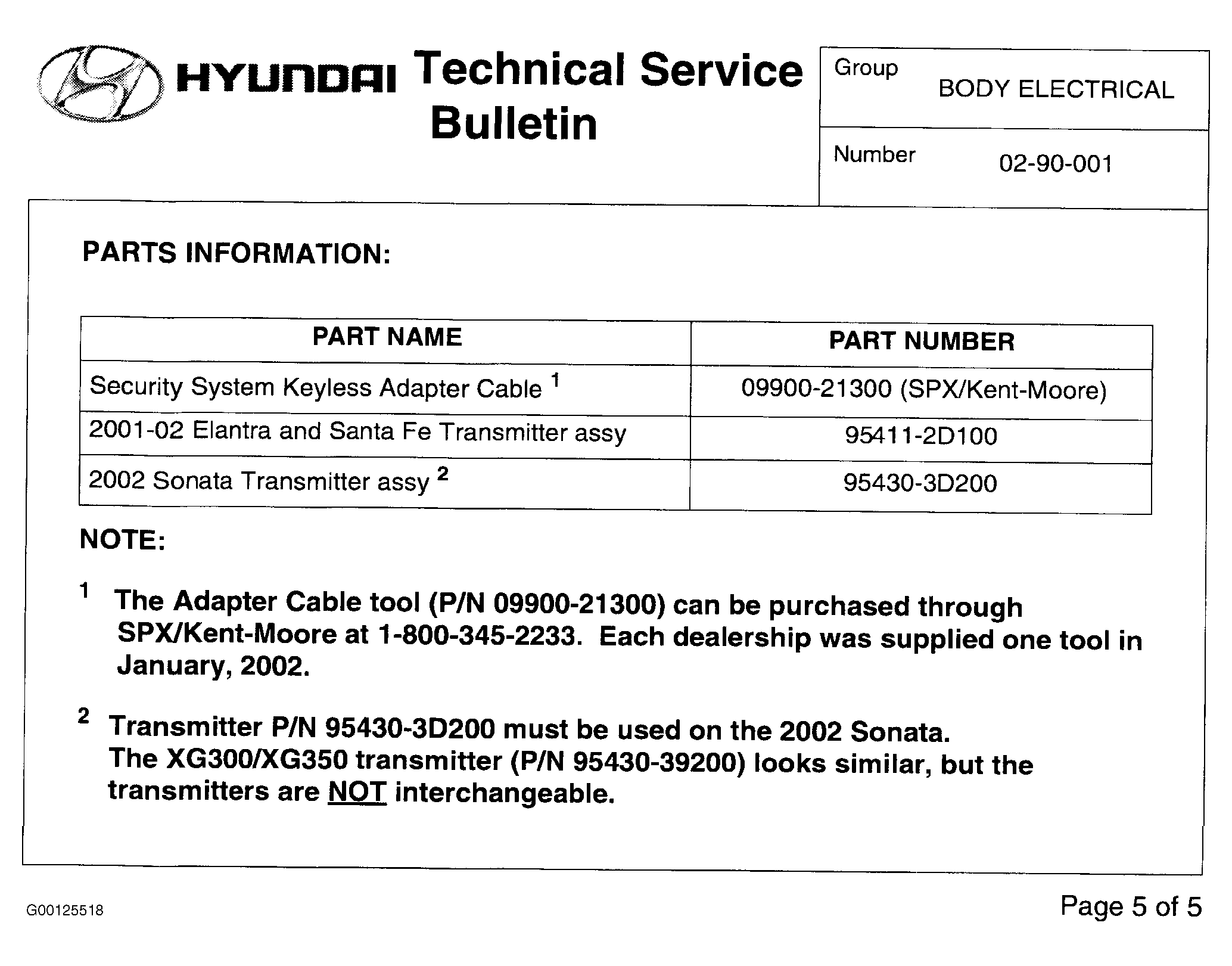

Fig 5: Page 5 of Bulletin
