Passenger Compartment Junction Block

NOTE: The passenger compartment junction block is located under driver's side of instrument panel. See Fig 1 .

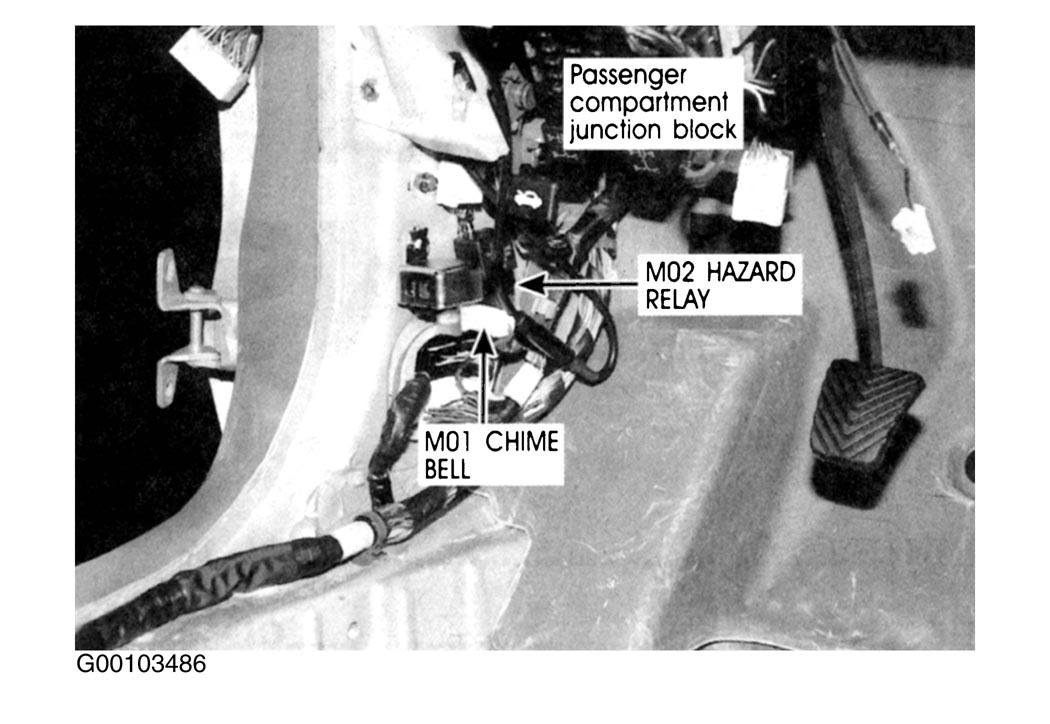

Fig 1: Locating Passenger Compartment Junction Block

Courtesy of HYUNDAI MOTOR CO.

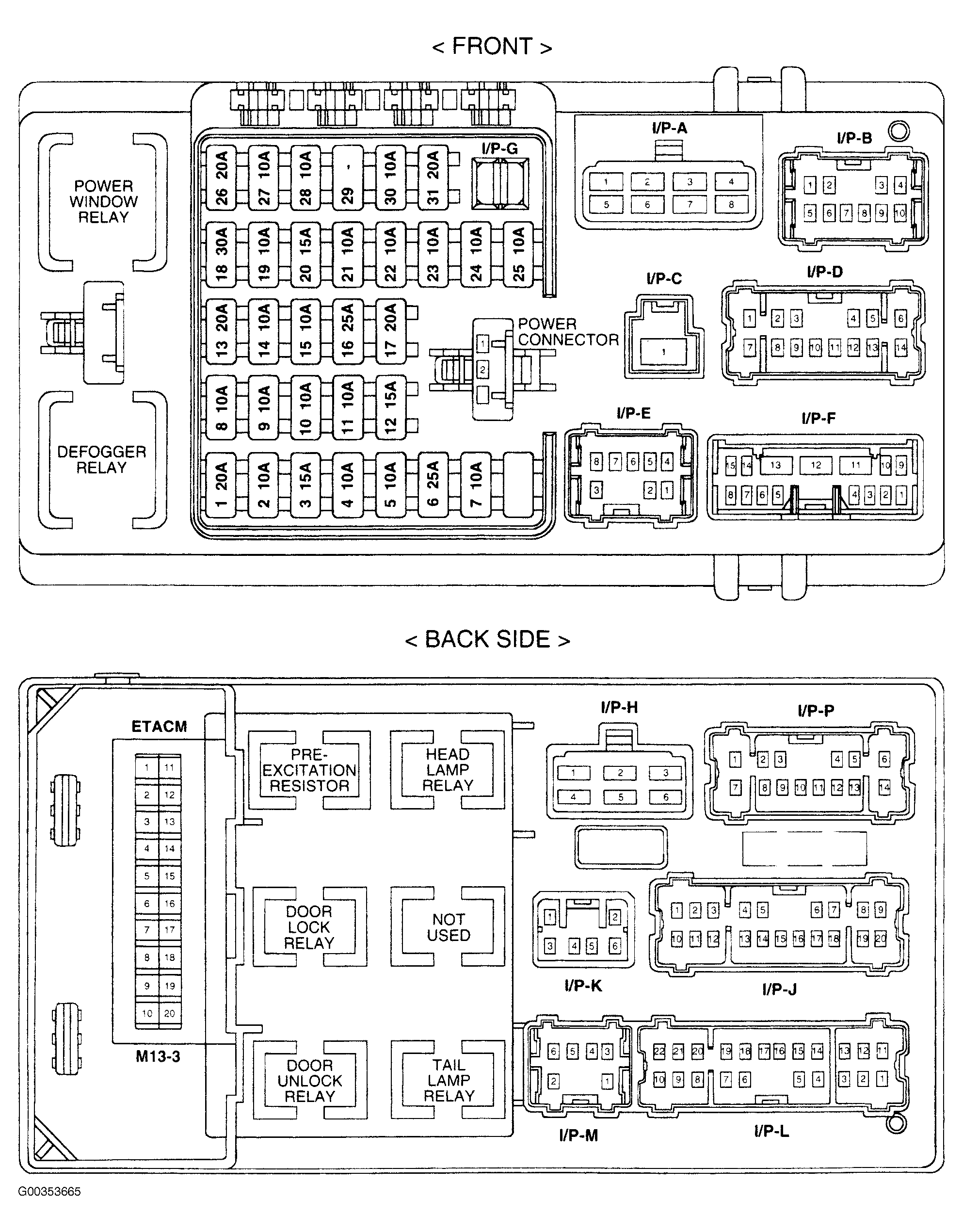

Fig 2: Identifying Passenger Compartment Junction Block

Courtesy of HYUNDAI MOTOR CO.

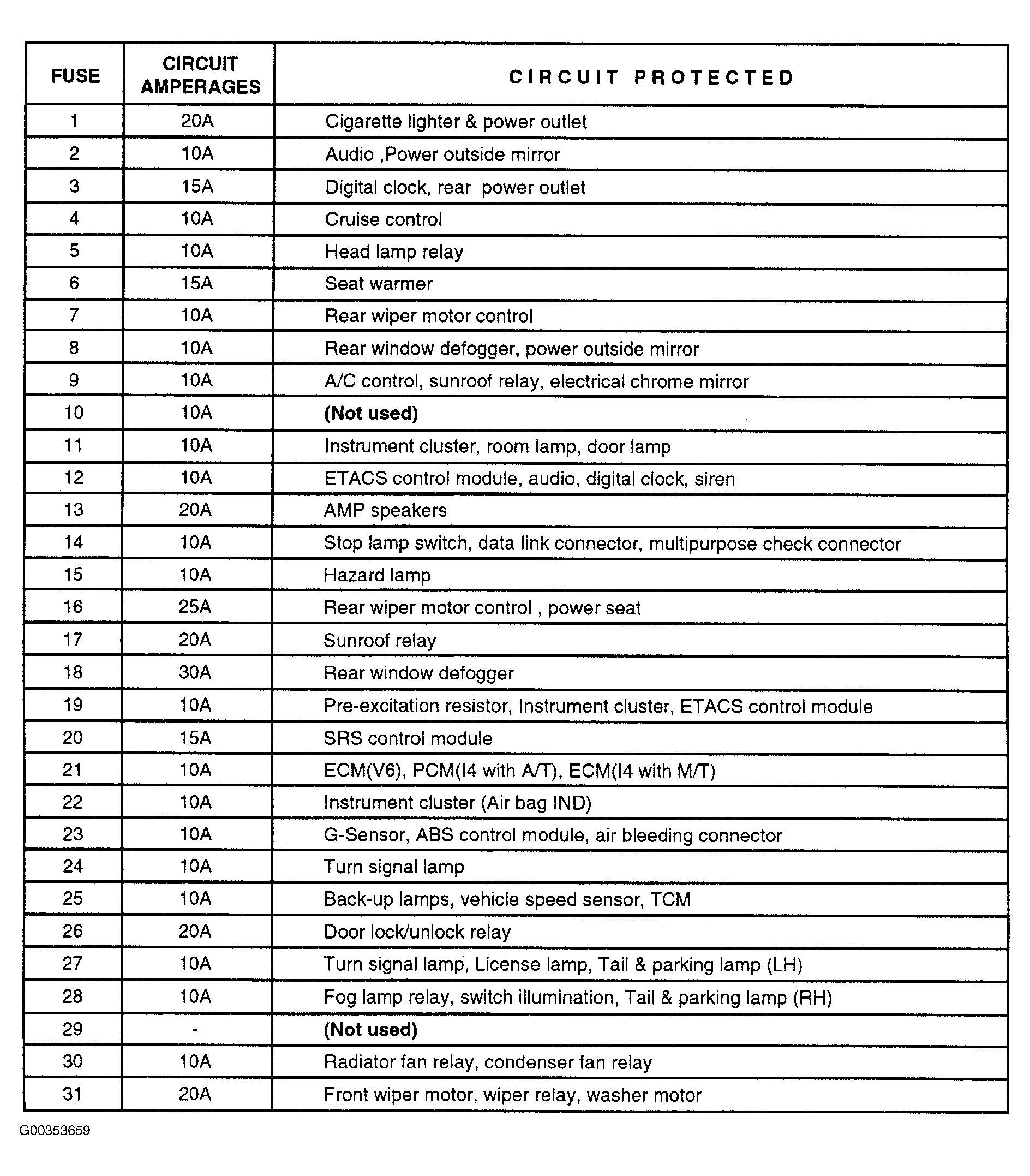

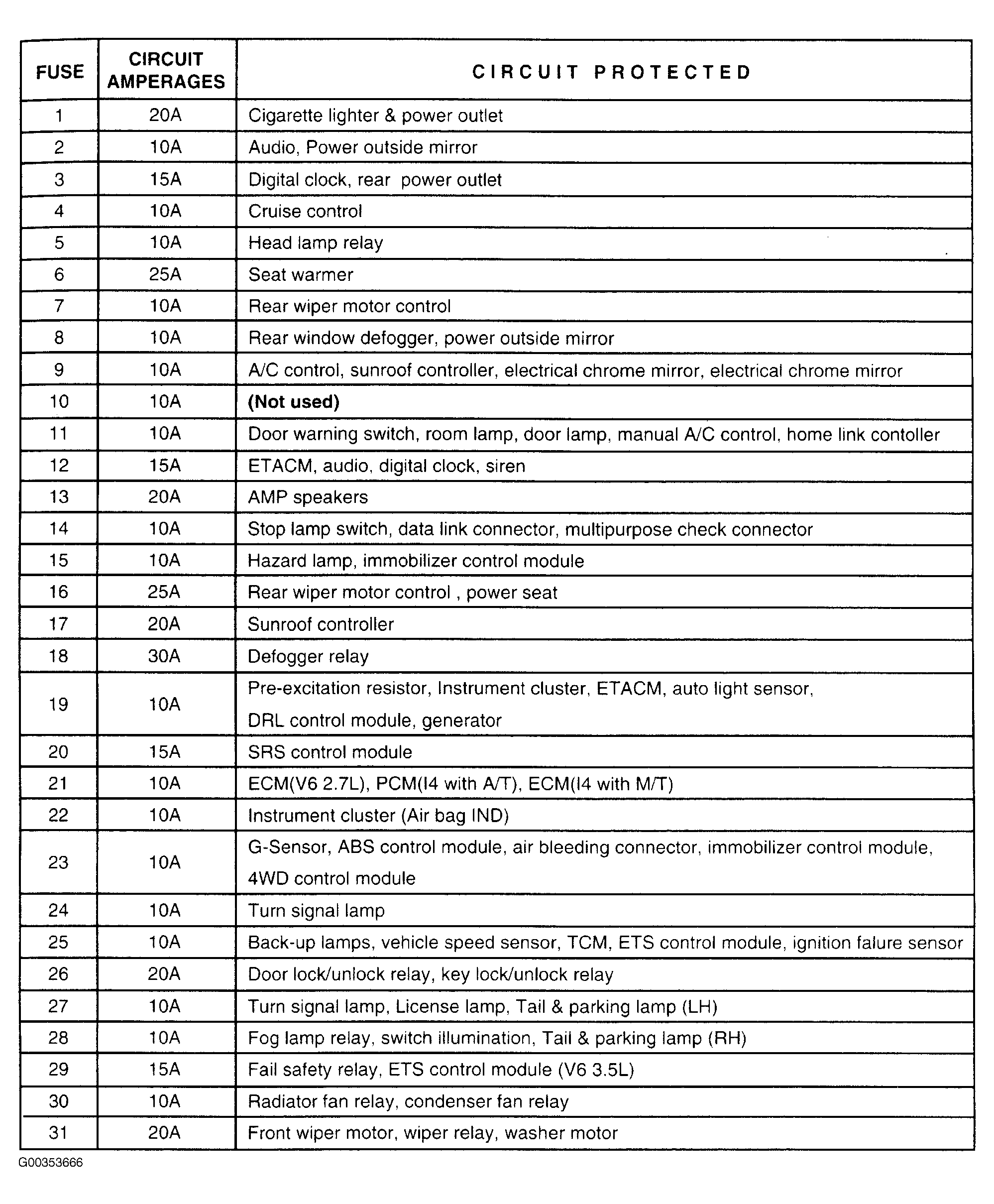

Fig 3: Identifying Passenger Compartment Junction Block Fuses

Courtesy of HYUNDAI MOTOR CO.
