Repair and Diagnosis
>>
Drivelines & Axles
>>
Axle Shafts
>>
General Information
>>
General
>>
Special Tool
Special Tool

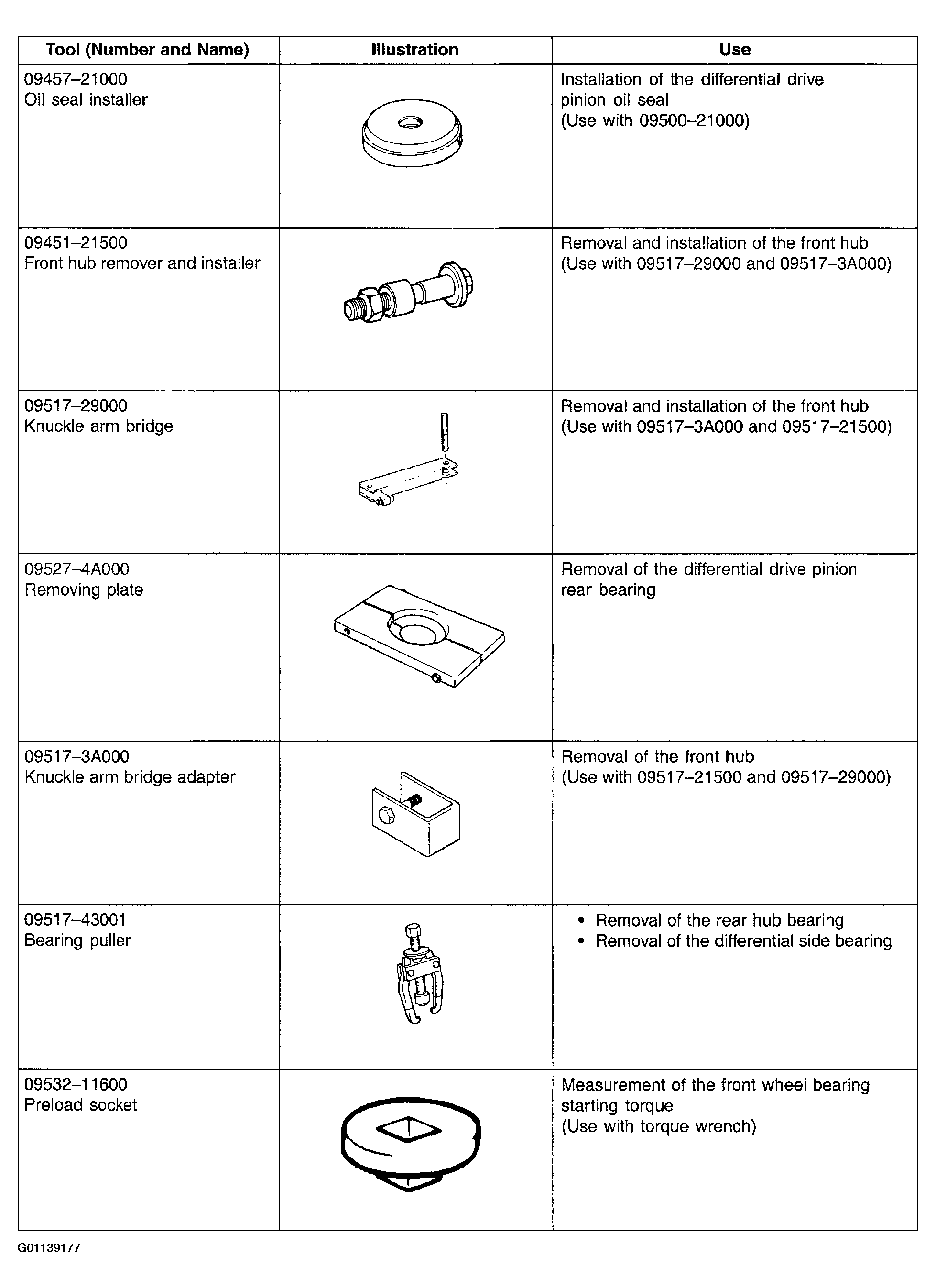

Fig 1: Identifying Special Tools (1 Of 4)
Courtesy of HYUNDAI MOTOR CO.

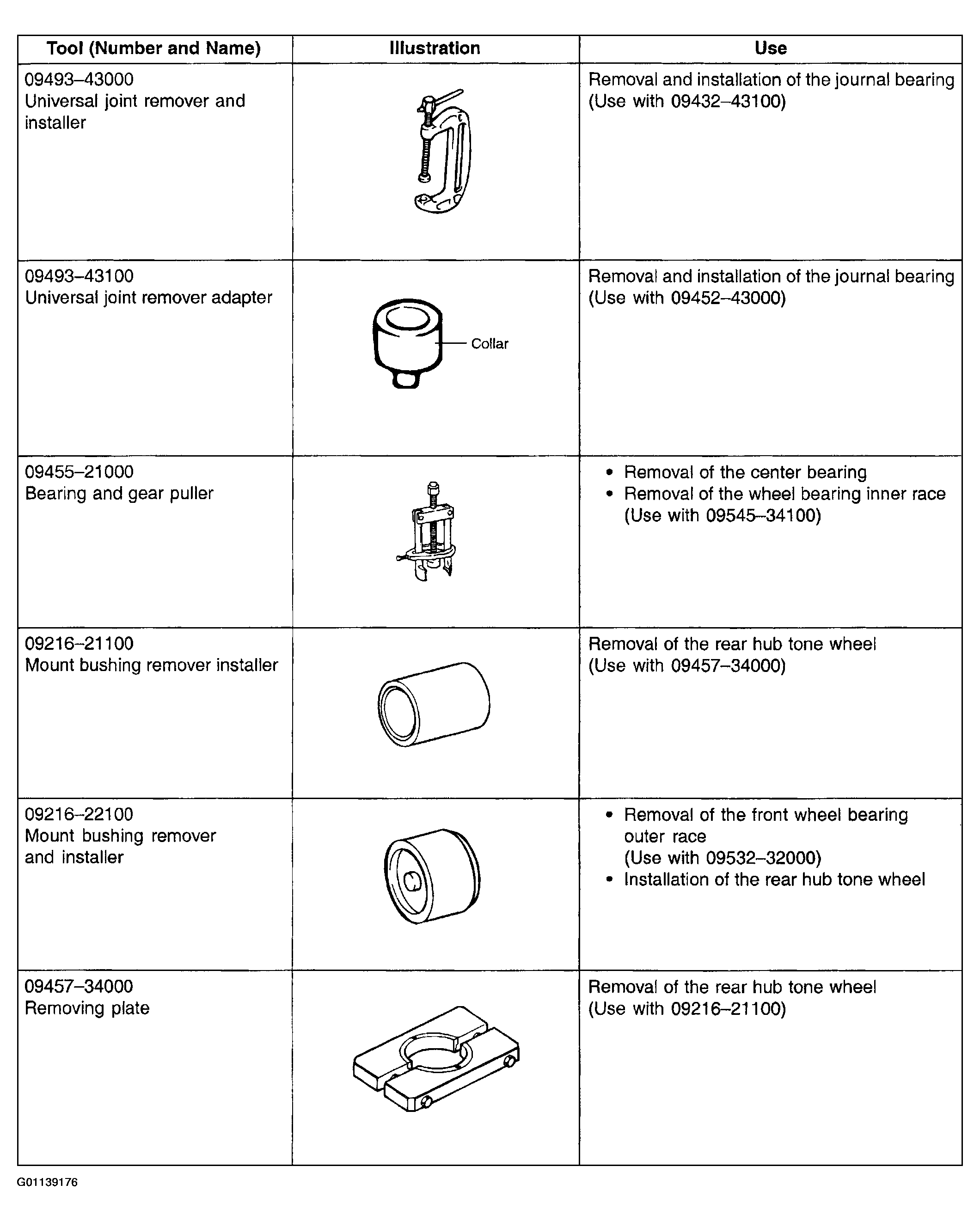

Fig 2: Identifying Special Tools (2 Of 4)
Courtesy of HYUNDAI MOTOR CO.
Fig 3: Identifying Special Tools (3 Of 4)
Courtesy of HYUNDAI MOTOR CO.
Fig 4: Identifying Special Tools (4 Of 4)
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
