Home >> Hyundai >> 2002 >> Santa Fe Base, Automatic >> Repair and Diagnosis >> Body & Frame >> Windows >> General - Body Electrical >> General >> Troubleshooting >> Power Window

Power Window

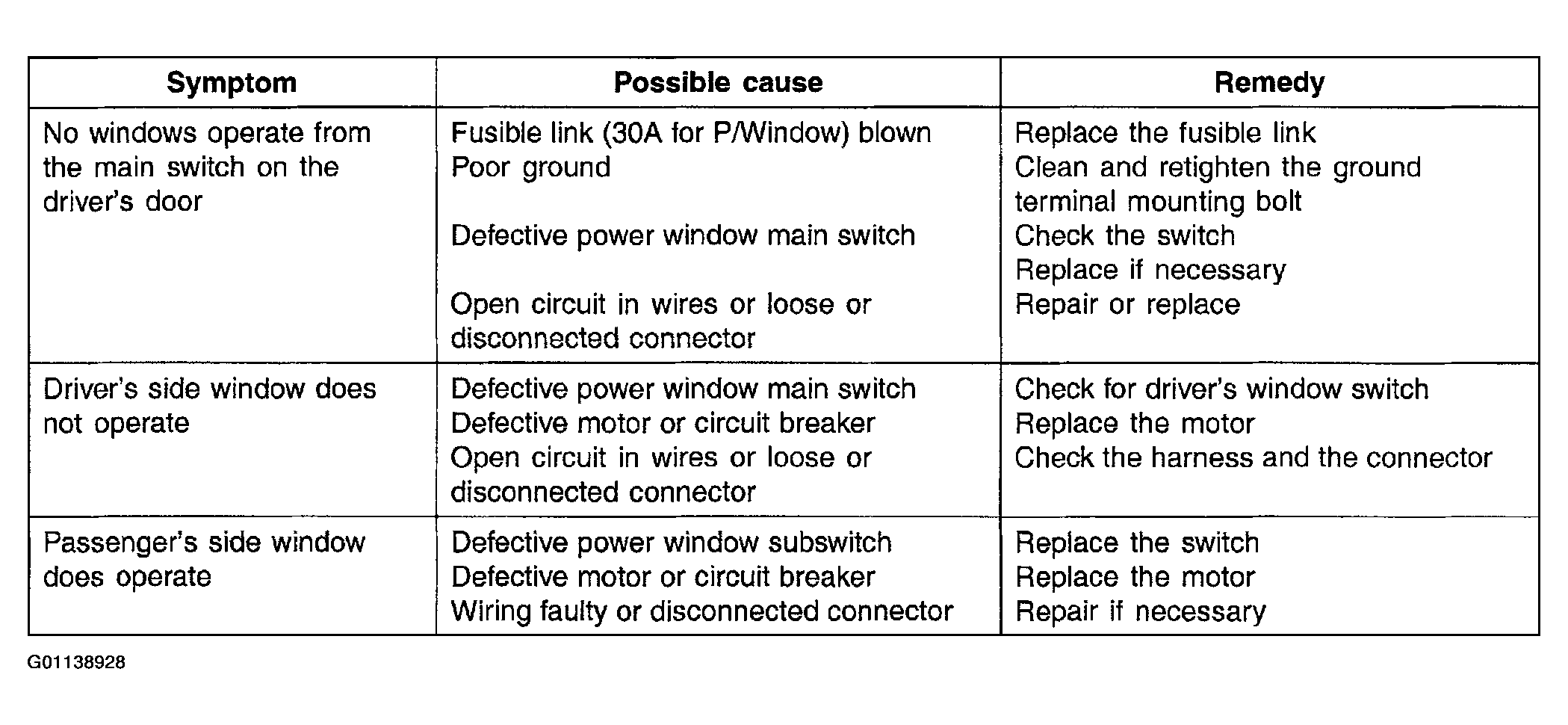

Fig 1: Power Window Troubleshooting Chart

G01138928

Courtesy of HYUNDAI MOTOR CO.
