Chart 6
Chart 6

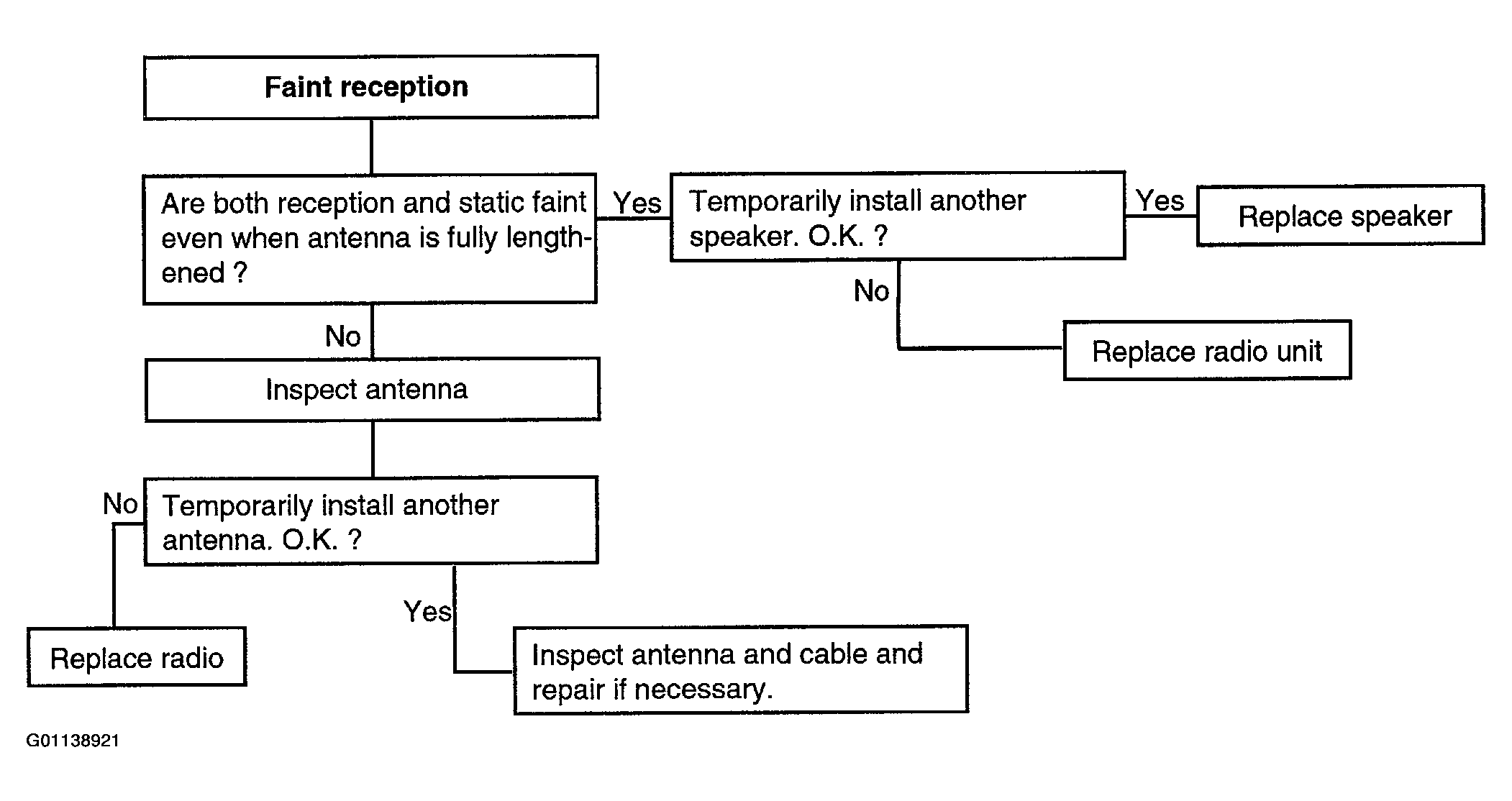

Fig 1: Troubleshooting Flow Chart - Faint Reception
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
