Home >> Hyundai >> 2002 >> Santa Fe Base, Automatic >> Repair and Diagnosis >> Body & Frame >> Windows >> General - Body Electrical >> General >> Troubleshooting >> Chart 4

Chart 4

  1. RADIO

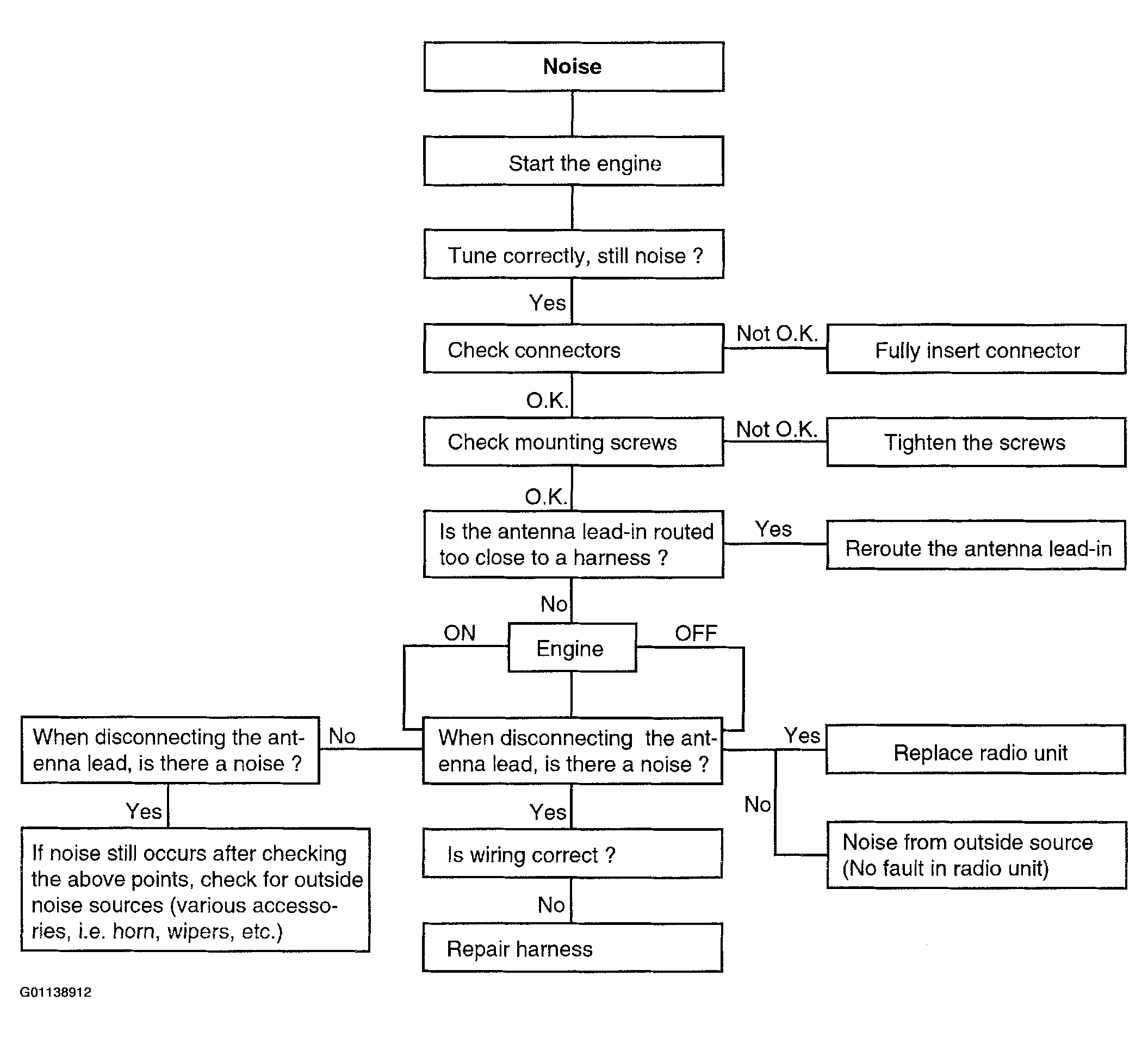

    Fig 1: Troubleshooting Flow Chart - Radio Noise
    G01138912Courtesy of HYUNDAI MOTOR CO.
  2. TAPE

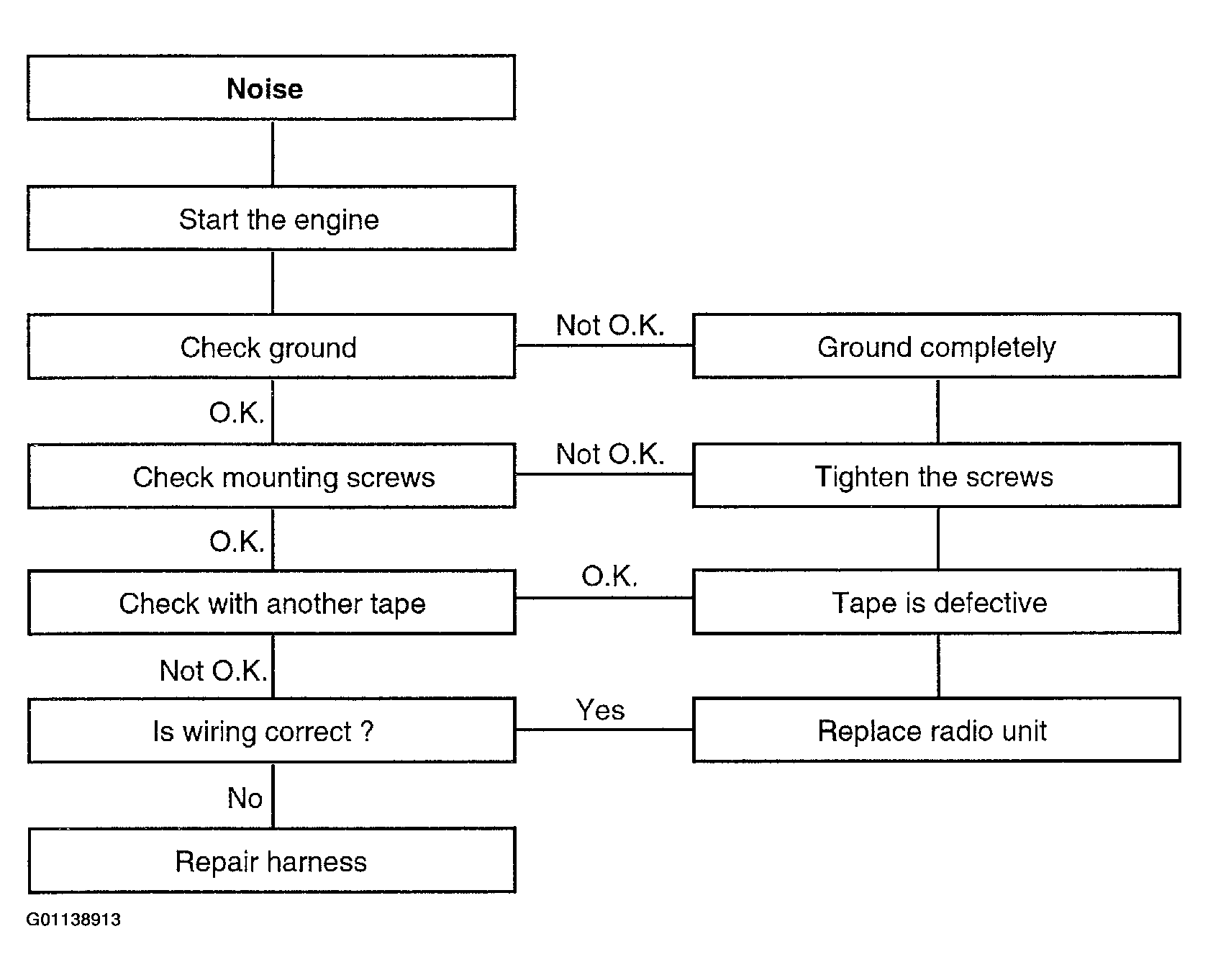

    Fig 2: Troubleshooting Flow Chart - Tape Noise
    G01138913Courtesy of HYUNDAI MOTOR CO.
