LEMON Manuals
: Even more car manuals for everyone
Home
>>
Hyundai
>>
2002
>>
Santa Fe Base, Automatic
>>
Repair and Diagnosis
>>
Body & Frame
>>
Windows
>>
General - Body Electrical
>>
General
>>
Troubleshooting
>>
Chart 2
Chart 2

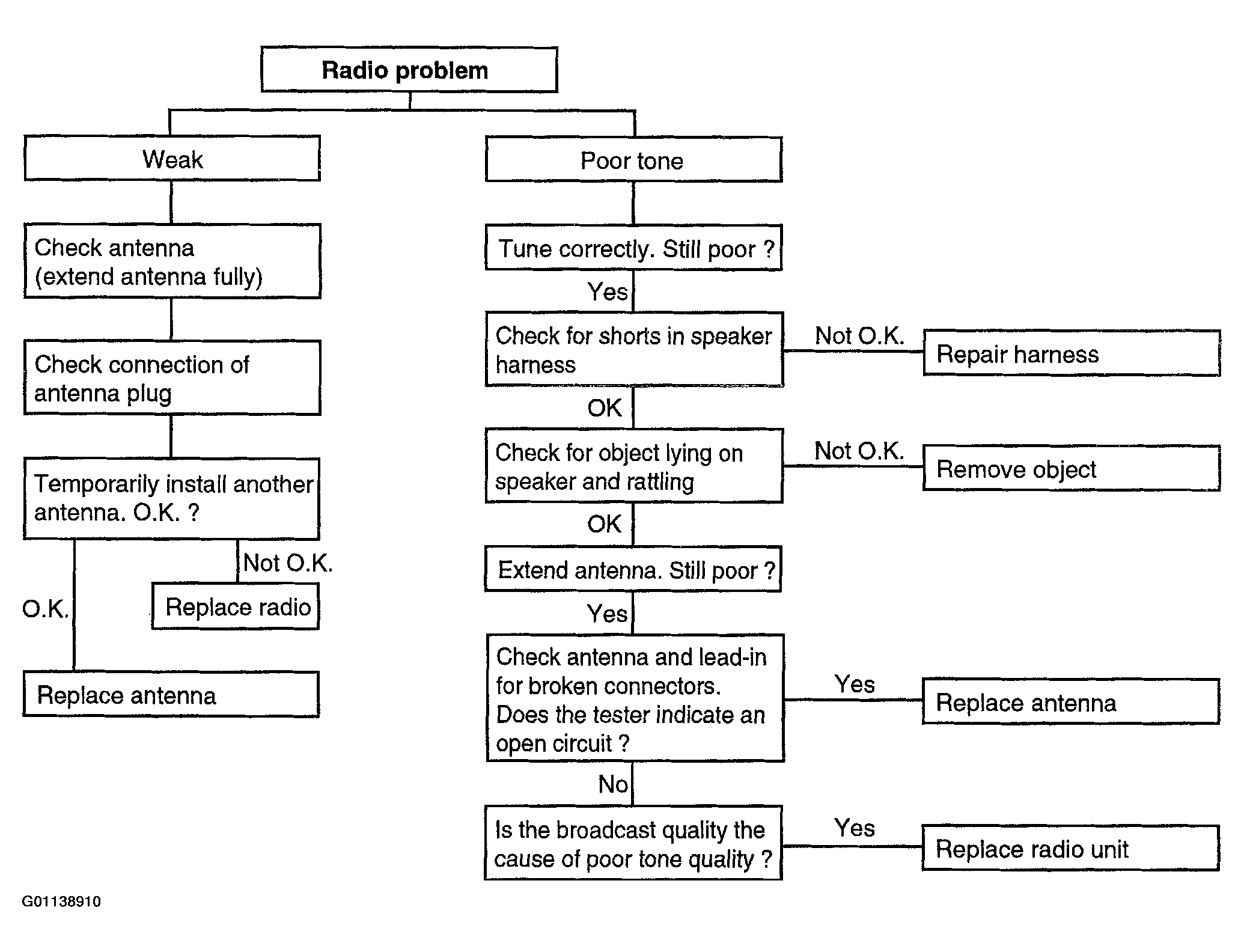

Fig 1: Troubleshooting Flow Chart - Radio Problem
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
