Chart 10

  1. MOTOR ANTENNA WON'T EXTEND OR RETRACT

    Clean and polish the surface of the antenna rod.

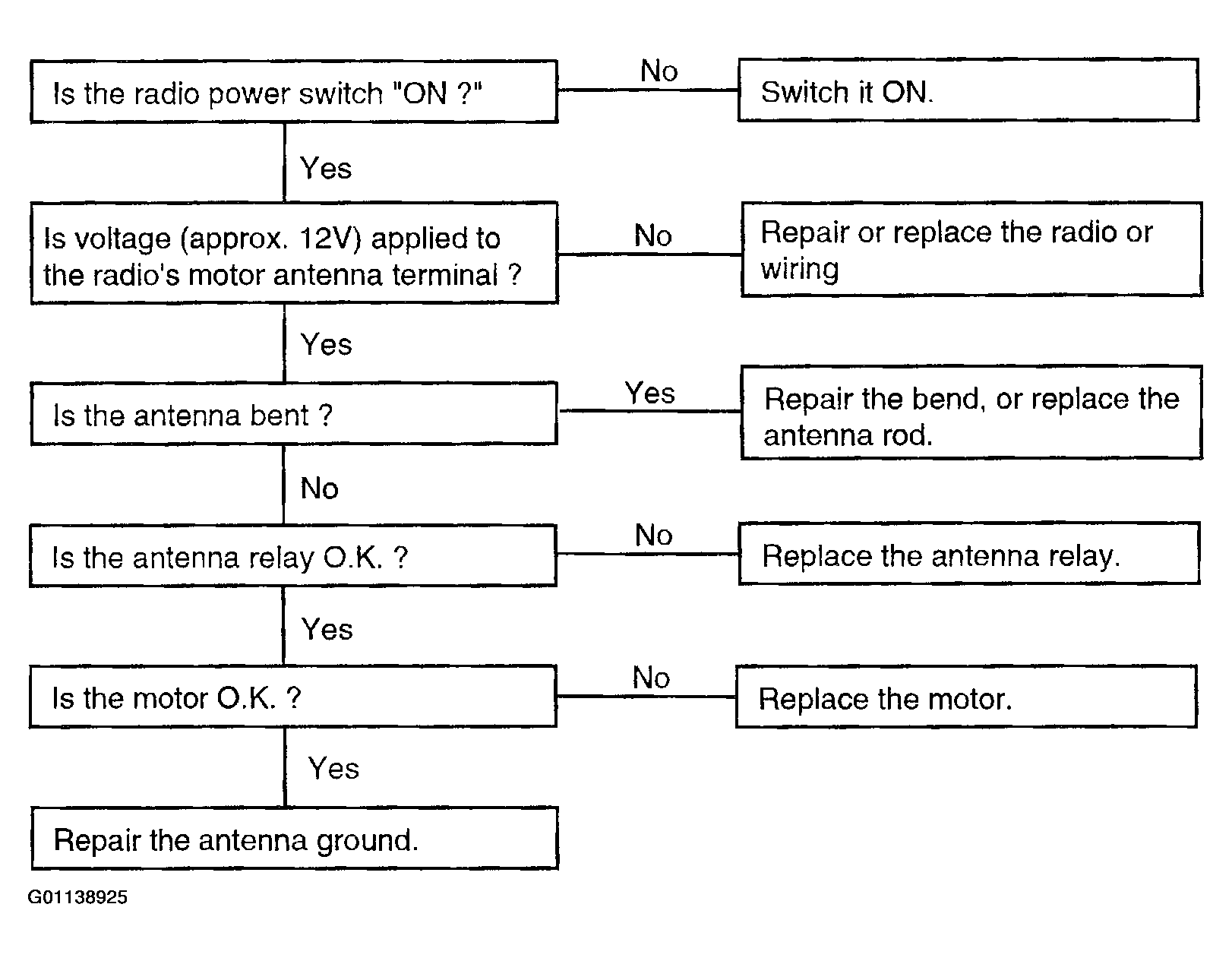

    Fig 1: Troubleshooting Flow Chart - Motor Antenna Won't Extend Or Retract
    G01138925Courtesy of HYUNDAI MOTOR CO.
  2. MOTOR ANTENNA EXTENDS AND RETRACTS BUT DOES NOT RECEIVE

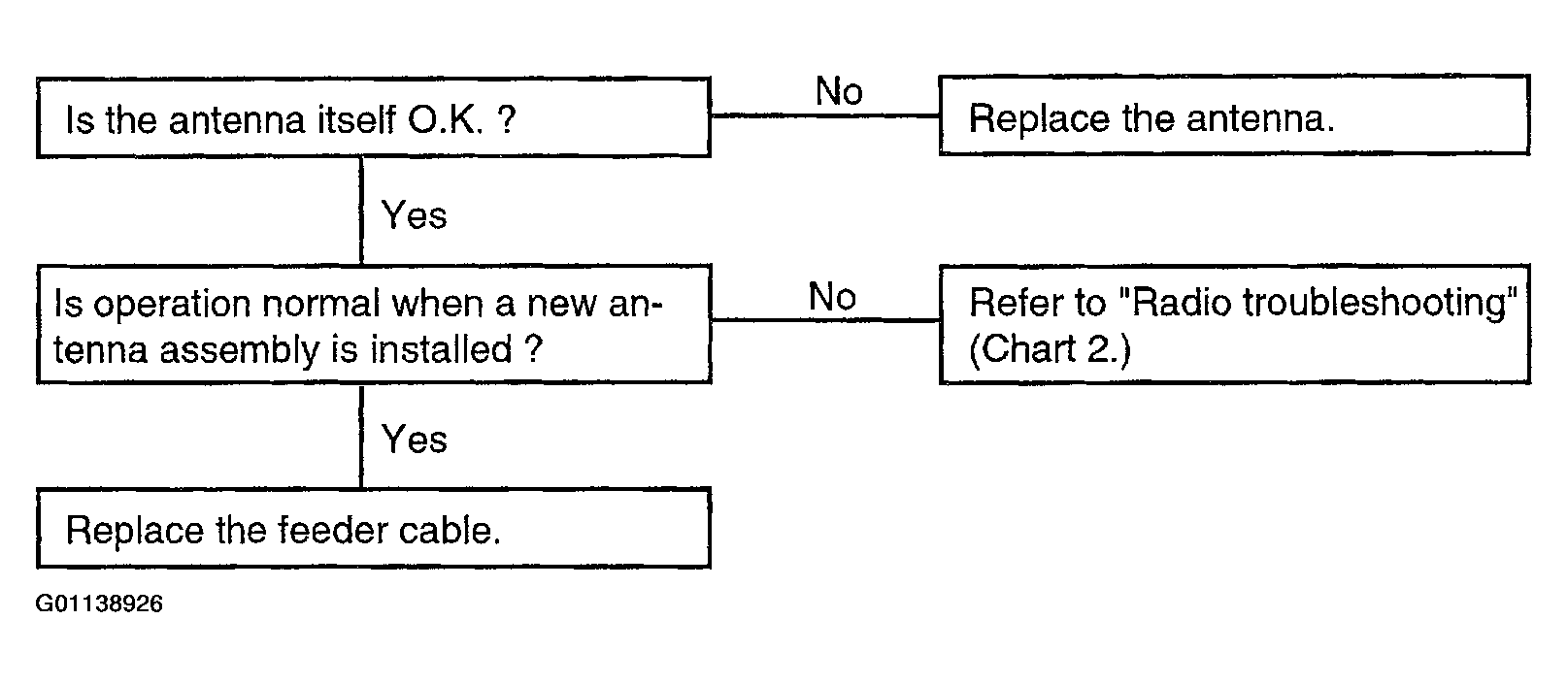

    Fig 2: Troubleshooting Flow Chart - Motor Antenna Extends & Retracts But Does Not Receive
    G01138926Courtesy of HYUNDAI MOTOR CO.
