MULTIFUNCTION Switch

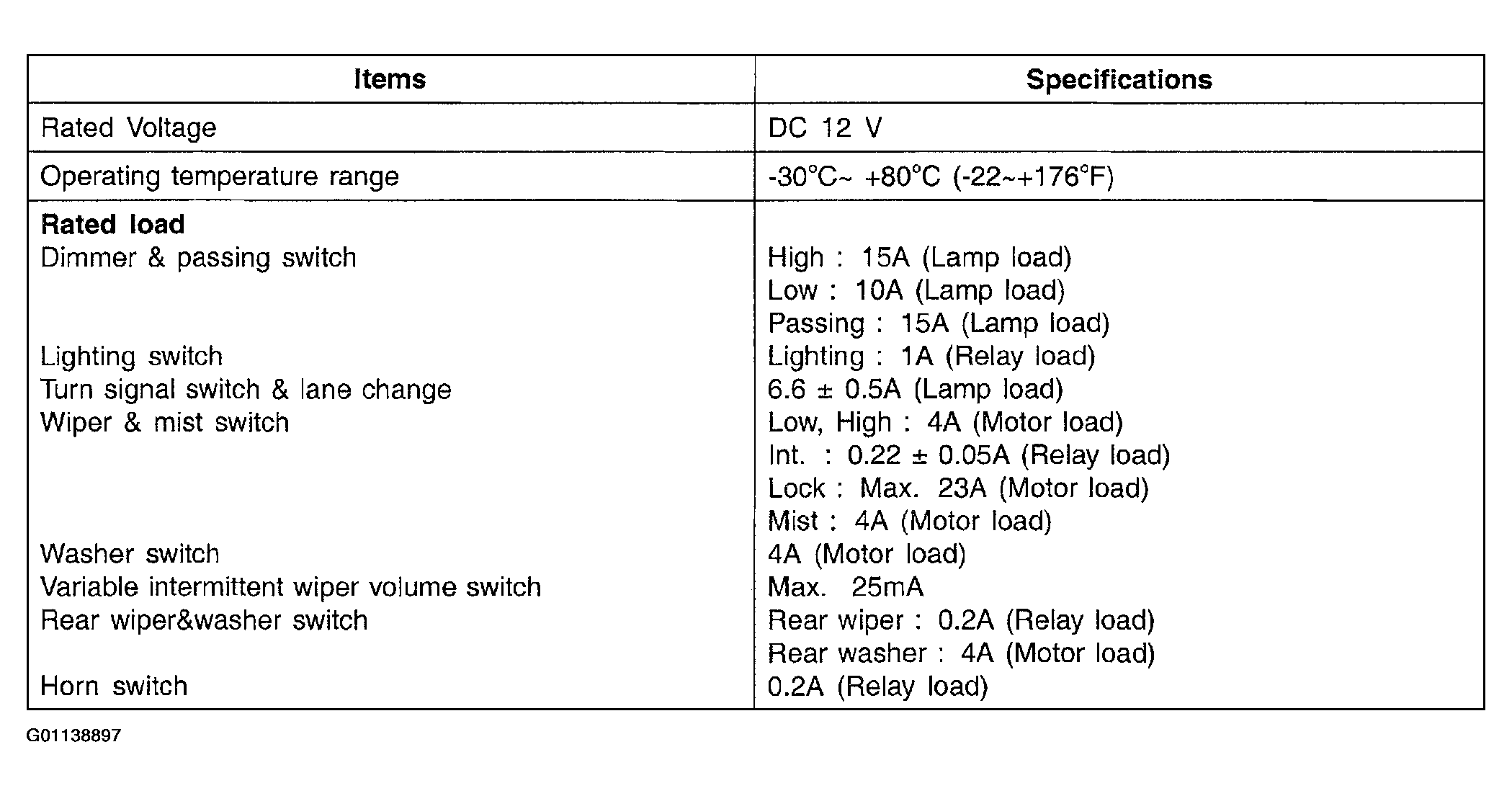

Fig 1: Multifunction Switch Specifications

G01138897

Courtesy of HYUNDAI MOTOR CO.
