Inspection Procedure 11

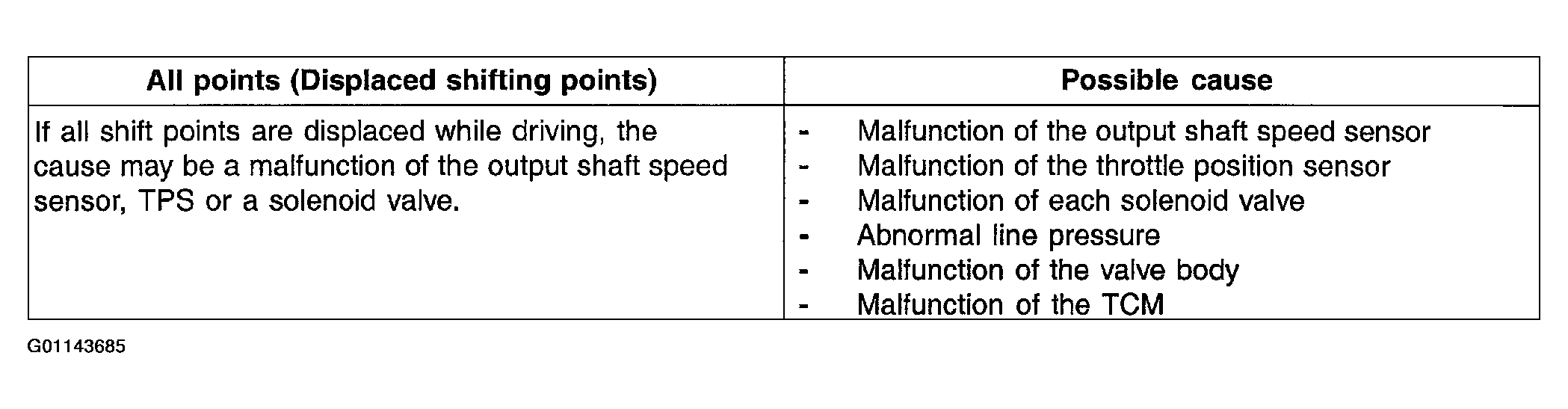

Fig 1: All Points (Displaced Shifting Points) Possible Causes Table
G01143685Courtesy of HYUNDAI MOTOR CO.

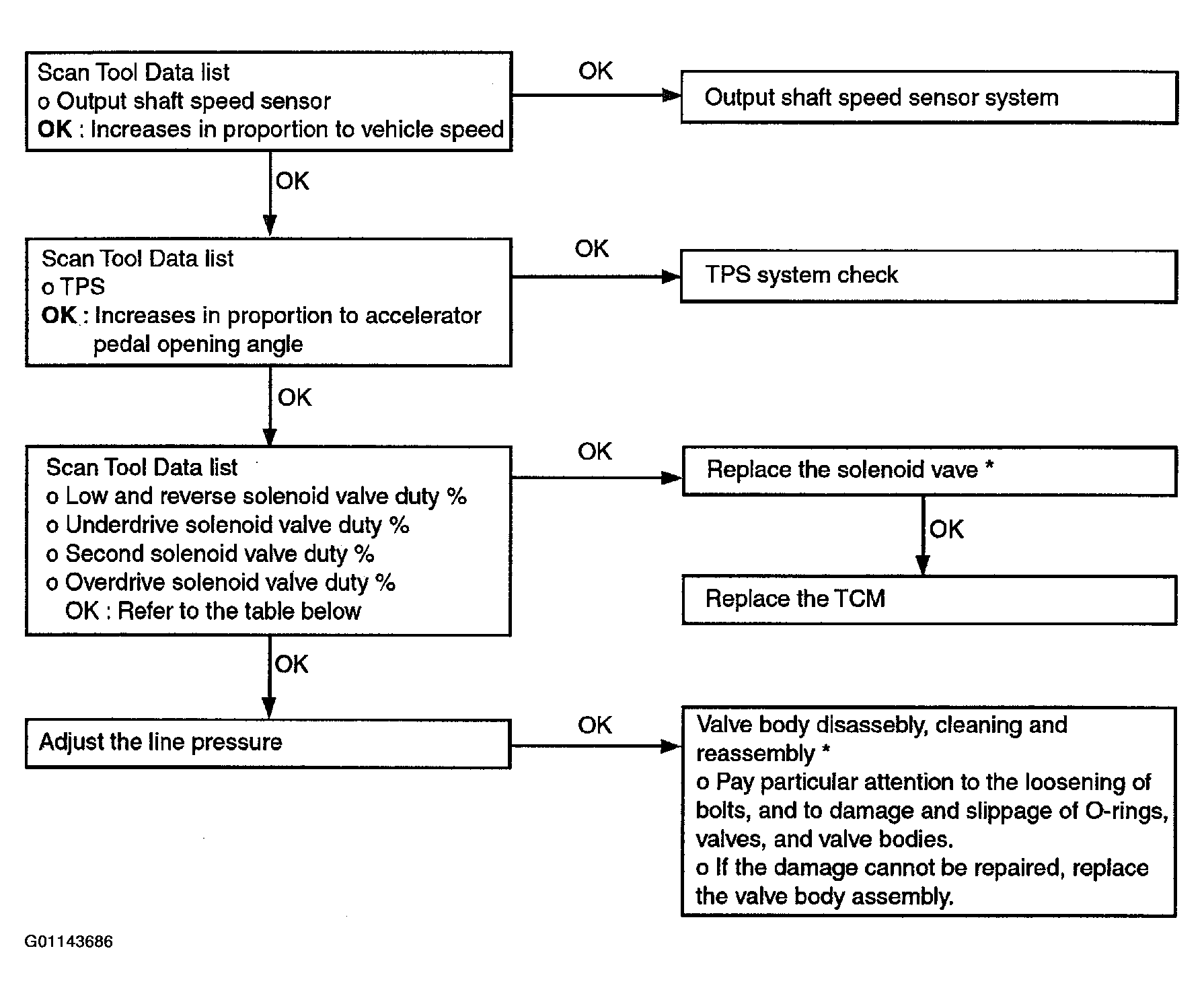

Fig 2: All Points (Displaced Shifting Points) Diagnostic Flow Chart
G01143686Courtesy of HYUNDAI MOTOR CO.
